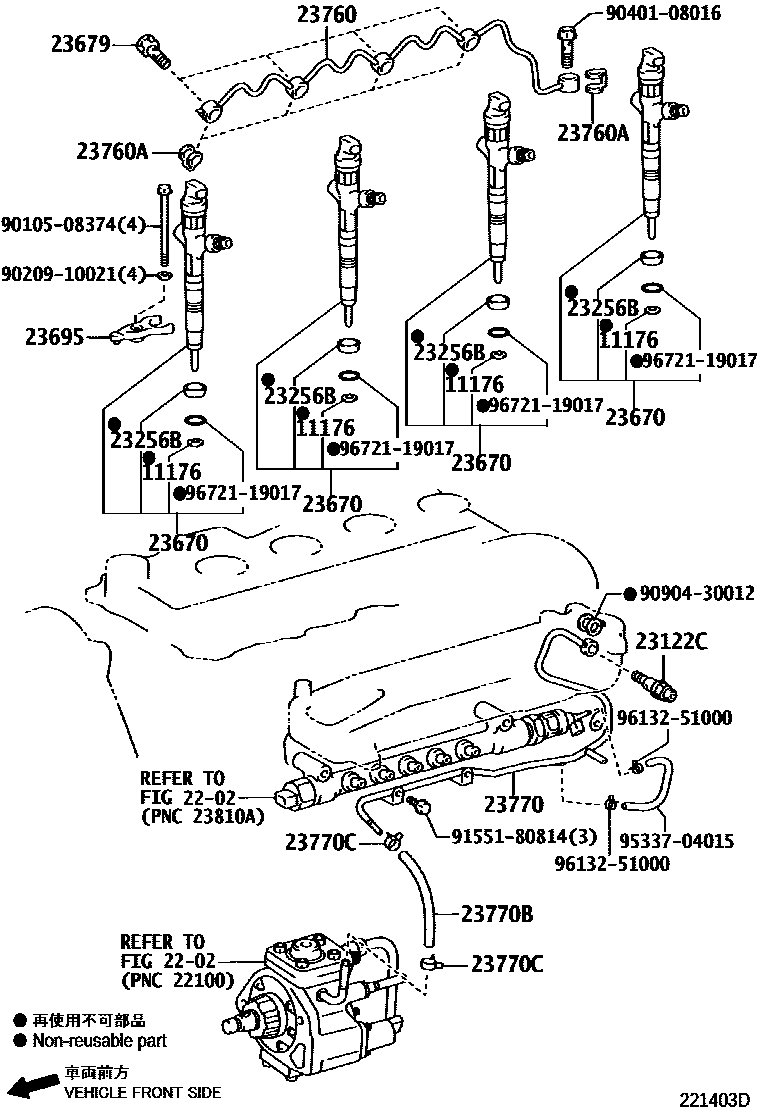

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-30010i1KDFTV..KDJ12#200211-200707

sub11176-30011

2202

23122CVALVE, CHECK

main23769-30010i1KDFTV..KDJ12#200211-200707

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-30010i1KDFTV..KDJ12#200211-200707

23670INJECTOR ASSY

main23670-39085i1KDFTV..KDJ12#200211-200707

sub23670-39086

23679SCREW, INJECTOR FOLLOW

main23679-30020i1KDFTV..KDJ12#200211-200707

sub23679-30021

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-30010i1KDFTV..KDJ12#200211-200707

sub23695-30011

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-30020i1KDFTV..KDJ12#200211-200707

23760AGASKET

main90904-30013i1KDFTV..KDJ12#200211-200707

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-30040i1KDFTV..KDJ12#200211-200707

23770BHOSE, FUEL

main95333-06030i1KDFTV..KDJ12#200211-200601

sub95338-06030

main95337-06022i1KDFTV..KDJ120200601-200707

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96135-51100i1KDFTV..KDJ12#200211-200707

9010508374

main90105-08374

9020910021

main90209-10021

9040108016

main90401-08016

9090430012

main90904-30012

9155180814

main91551-80814

9533704015

main95337-04015

9613251000

main96132-51000

9672119017

main96721-19017

20 parts on this diagram · 1 diagram in section
