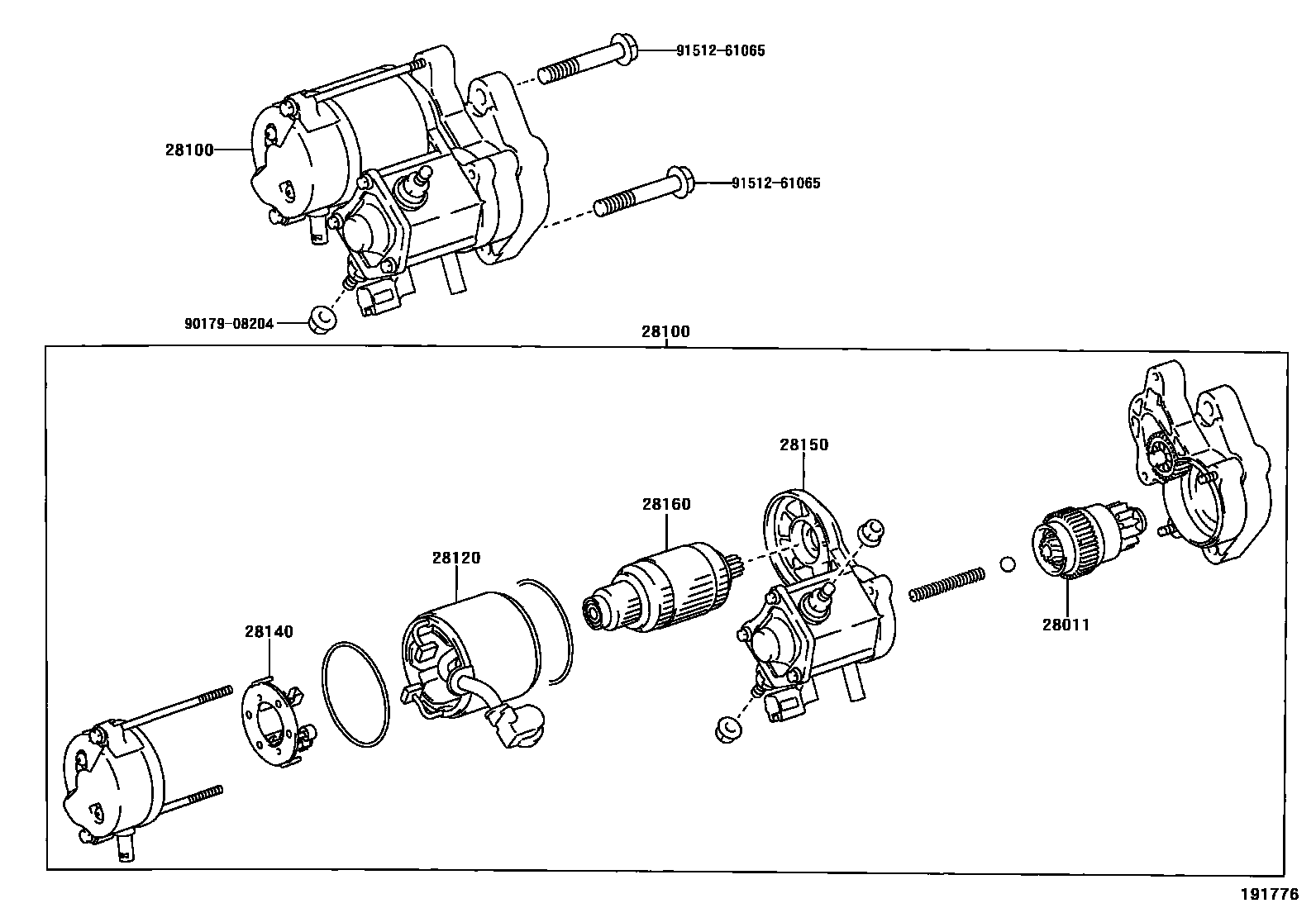

STARTER

0001 112V 1.2KW,1.4KW 0002 112V 1.6KW 0003 112V 2.7KW 0004 112V 1.6KW 0005 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1KDFTV..KDJ12#200211-200707

main28011-66060i1GRFE..GRJ12#200508

main28011-76070i5VZFE..VZJ12#200209-200508

28100STARTER ASSY

main28100-30050i1KDFTV..KDJ12#200211-200707

sub28100-30051

main28100-31040i1GRFE..GRJ12#200508-200909

main28100-31050i1GRFE..GRJ12#200508

main28100-62040i5VZFE..VZJ12#200209-200508

main28100-62050i5VZFE..VZJ12#200209-200508

main28100-75190i3RZFE,2TRFE..RZJ12#,TRJ12#200209-200909

sub28100-75191

28120YOKE ASSY, STARTER

main28120-16180i5VZFE..VZJ12#200209-200508

main28120-28040i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#200209-200808

sub28120-28060

main28120-28060i1GRFE,2TRFE..GRJ12#,TRJ12#200808

main28120-54380i1GRFE..GRJ12#200508

main28120-66040i5VZFE..VZJ12#200209-200508

main28120-67020i1KDFTV..KDJ12#200211-200707

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i5VZFE..VZJ12#200209-200508

main28140-62030i1GRFE..GRJ12#200508

main28140-65060i5VZFE..VZJ12#200209-200508

main28140-77090i1KDFTV..KDJ12#200211-200707

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1KDFTV..KDJ12#200211-200707

main28150-31051i1GRFE..GRJ12#200508

main28150-62050i5VZFE..VZJ12#200209-200508

28160ARMATURE ASSY, STARTER

main28160-21060i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#200209

main28160-54140i1KDFTV..KDJ12#200211-200707

main28160-74070i5VZFE..VZJ12#200209-200508

main28160-75120i1GRFE..GRJ12#200508

main28160-76060i5VZFE..VZJ12#200209-200508

9017908204

main90179-08204

9151261065

main91512-61065

8 parts on this diagram · 5 diagrams in section
