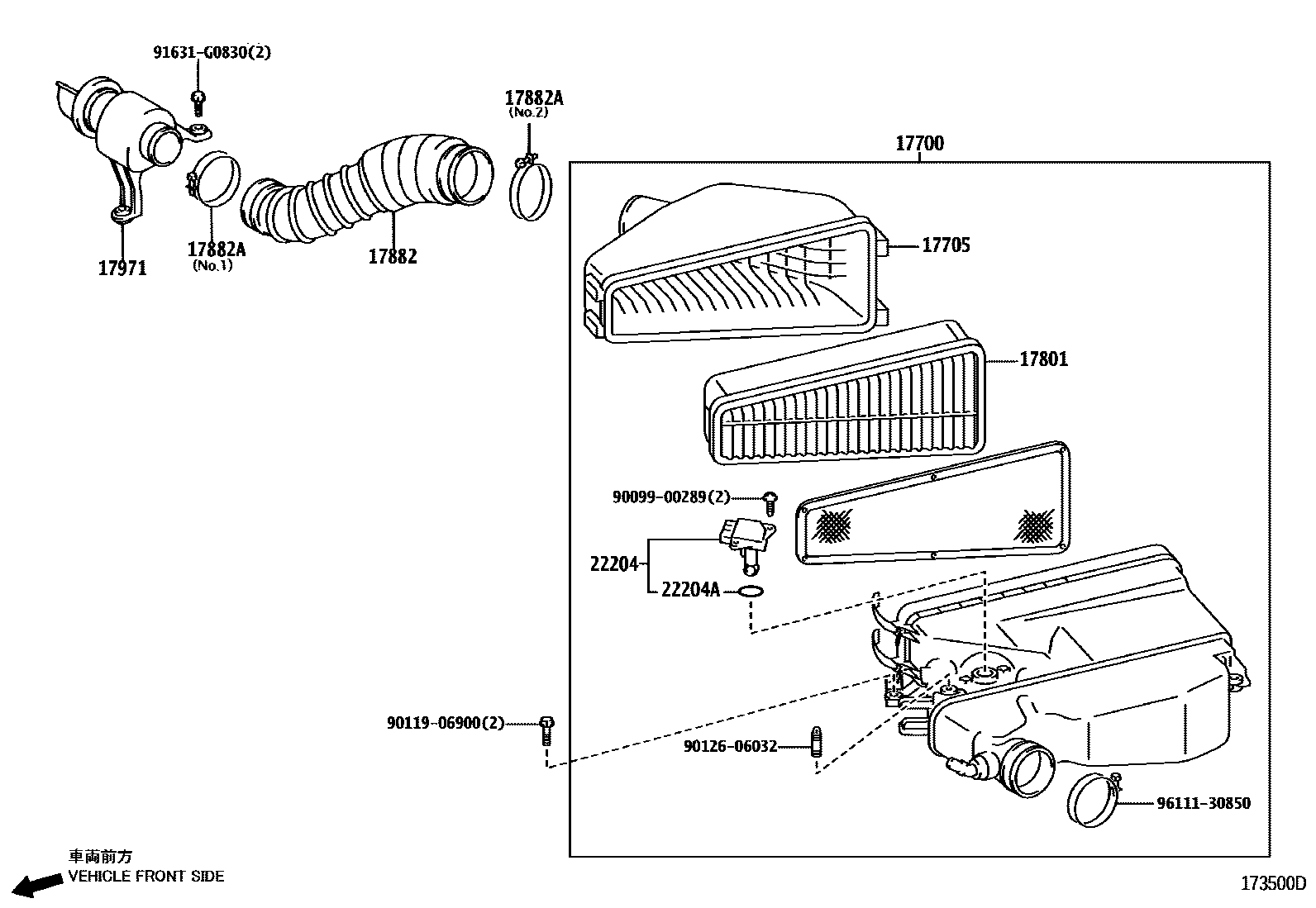

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17700CLEANER ASSY, AIR

main17700-30150i1KDFTV..KDJ12#200211-200506

main17700-30151i1KDFTV..KDJ12#200506-200707

main17700-31540i1GRFE..GRJ12#200508-200604

sub17700-31541

main17700-31541i1GRFE..GRJ12#200605

sub17700-31542

main17700-62140i5VZFE..VZJ12#200209-200506

main17700-62141i5VZFE..VZJ12#200506-200508

main17700-75400i3RZFE..RZJ12#200209-200408

main17700-75401i2TRFE..TRJ12#200408-200506

main17700-75402i2TRFE..TRJ12#200506

17705CAP SUB-ASSY, AIR CLEANER

main17705-30090i1KDFTV..KDJ12#200211-200707

main17705-31090i1GRFE..GRJ12#200508

sub17705-0P010

main17705-62110i5VZFE..VZJ12#200209-200508

main17705-75280i3RZFE..RZJ12#200209-200408

main17705-75281i2TRFE..TRJ12#200408-200505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-30040i1KDFTV..KDJ12#200211-200707

main17801-31090i1GRFE..GRJ12#200508

main17801-50040i2TRFE..TRJ12#200209-200508

17882HOSE, AIR CLEANER, NO.2

main17882-0C010i3RZFE..RZJ12#200209-200408

main17882-31080i1GRFE..GRJ12#200508

main17882-75040i3RZFE..RZJ12#200209-200408

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800i3RZFE..RZJ12#200209-200408

main96111-30980i1GRFE..GRJ12#200508

main96111-31120i1GRFE..GRJ12#200508

17971INLET, COOL AIR, NO.1

main17971-30010i1KDFTV..KDJ12#200211-200707

sub17971-30012

main17971-31010i1GRFE..GRJ12#200508

main17971-62010i5VZFE..VZJ12#200209-200508

main17971-75010i3RZFE..RZJ12#200209-200408

main17971-75011i2TRFE..TRJ12#200408-200505

sub17971-75012

main17971-75012i2TRFE..TRJ12#200506

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i5VZFE..VZJ12#200209-200508

main22204-22010i1GRFE..GRJ12#200508

main22204-30010i1KDFTV..KDJ12#200211-200707

main22204-75030i2TRFE..TRJ12#200209-200408

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GRJ12#200508

9009900289

main90099-00289

9011906900

main90119-06900

9012606032

main90126-06032

91631G0830

main91631-G0830

9611130850

main96111-30850

13 parts on this diagram · 7 diagrams in section
