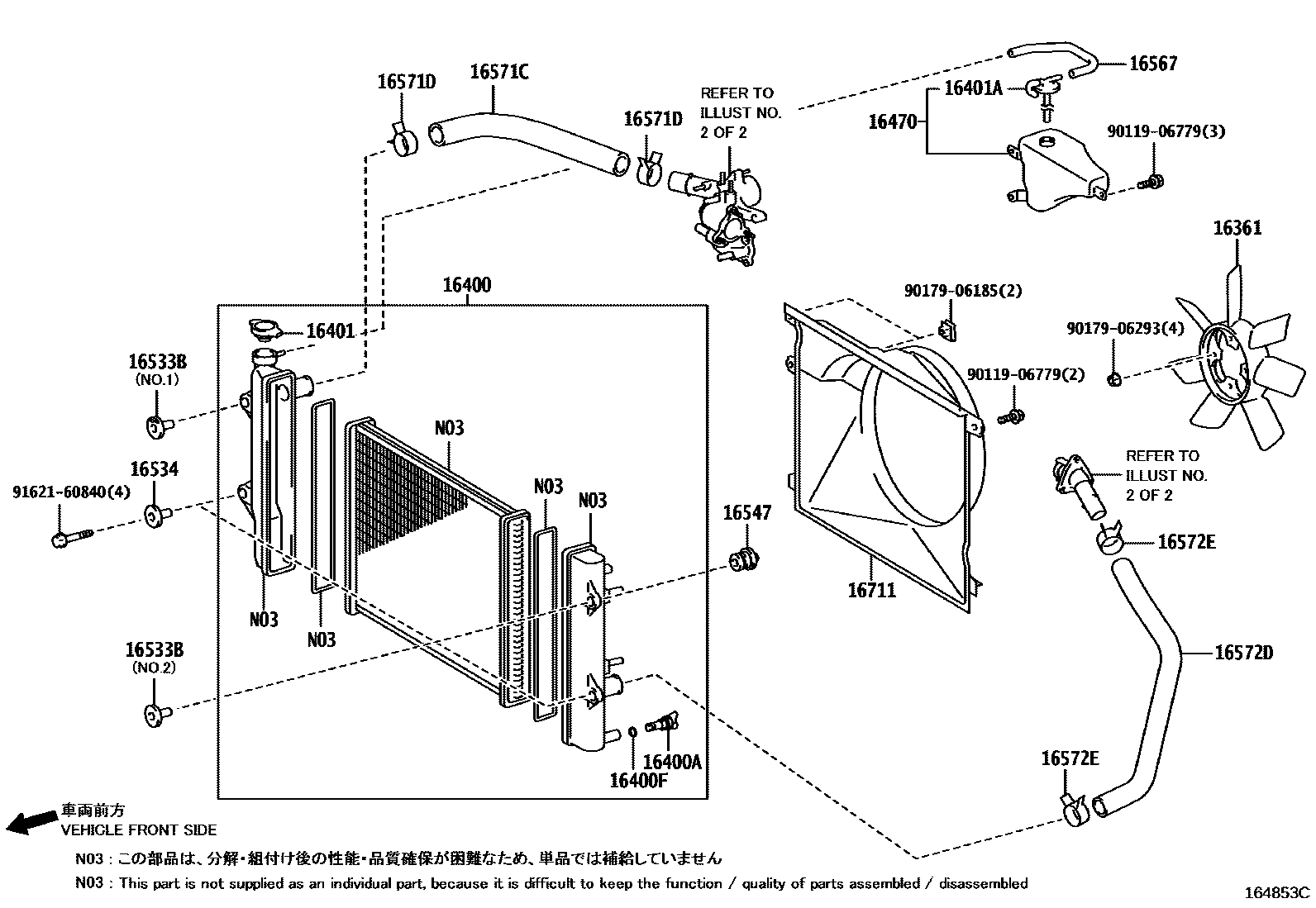

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

16361FAN

main16361-31060i1GRFE..GRJ12#200508

main16361-62010i5VZFE..VZJ12#200209-200508

main16361-67020i1KDFTV..KDJ12#200211-200707

main16361-75020i2TRFE..TRJ12#200209-200408

sub16361-75021

16400RADIATOR ASSY

main16400-30140i1KDFTV..KDJ12#200211-200307

main16400-30141i1KDFTV..KDJ12#200307-200408

sub16400-30142

main16400-30142i1KDFTV..KDJ12#200408-200707

main16400-31351i1GRFE..GRJ12#200508

sub16400-31352

main16400-62230i5VZFE..VZJ12#200209-200410

sub16400-62231

main16400-62231i2TRFE..TRJ12#200411-200508

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main23322-54010i1GRFE..GRJ12#200209-200508

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1KDFTV..KDJ12#200211-200707

main16492-21050i1GRFE..GRJ12#200209-200908

16401CAP SUB-ASSY, RADIATOR

main16401-46610i1GRFE..GRJ12#200902-200908

sub16401-30020

main16401-5B630i3RZFE..RZJ12#200209-200410

sub16401-31650

main16401-6A140i1KDFTV..KDJ12#200211-200307

sub16401-17010

main16401-75440i5VZFE..VZJ12#200411-200901

sub16401-31650

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-53010i1KDFTV..KDJ12#200307-200707

sub16475-51010

main16405-50050i3RZFE..RZJ12#200209-200211

sub16405-50051

main16405-50051i2TRFE..TRJ12#200211-200508

16470TANK ASSY, RADIATOR RESERVE

main16470-30030i1KDFTV..KDJ12#200307-200707

main16470-50140i5VZFE..VZJ12#200209-200508

16533BSUPPORT, RADIATOR, NO.1

main16533-50090i5VZFE..VZJ12#200209-200908

main16534-50050i1KDFTV..KDJ12#200209-200908

16534SUPPORT, RADIATOR, NO.2

main16534-50050i1GRFE..GRJ12#200209-200908

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-50010i5VZFE..VZJ12#200209-200908

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31010i2TRFE..TRJ12#200209-200508

main16567-50080i1KDFTV..KDJ12#200211-200307

sub16567-38040

16571CHOSE, RADIATOR, NO.1

main16571-30060i1KDFTV..KDJ12#200211-200707

main16571-31130i1GRFE..GRJ12#200508

main16571-62090i5VZFE..VZJ12#200209-200508

main16571-75230i3RZFE..RZJ12#200209-200408

main16571-75231i2TRFE..TRJ12#200408

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41008i1KDFTV..KDJ12#200211-200701

main90467-37005i1GRFE..GRJ12#200209-200701

main96136-44301i2TRFE..TRJ12#200702

main96136-54801i1KDFTV..KDJ120200702-200707

16572DHOSE, RADIATOR, NO.2

main16572-30050i1KDFTV..KDJ12#200211-200707

main16572-31170i1GRFE..GRJ12#200508

main16572-62110i5VZFE..VZJ12#200209-200508

main16572-75240i3RZFE..RZJ12#200209-200408

main16572-75241i2TRFE..TRJ12#200408

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41008i1KDFTV..KDJ12#200211-200701

main90467-37005i2TRFE..TRJ12#200209-200701

main96136-44301i1GRFE..GRJ12#200702

main96136-54801i1KDFTV..KDJ120200702-200707

16711SHROUD, FAN

main16711-30040i1KDFTV..KDJ12#200211-200307

sub16711-30041

sub16567-30010

main16711-30041i1KDFTV..KDJ12#200307-200707

main16711-31200i1GRFE..GRJ12#200508

main16711-62080i5VZFE..VZJ12#200209-200508

main16711-75220i3RZFE..RZJ12#200209-200408

9011906779

main90119-06779

9017906185

main90179-06185

9017906293

main90179-06293

9162160840

main91621-60840

20 parts on this diagram · 11 diagrams in section
