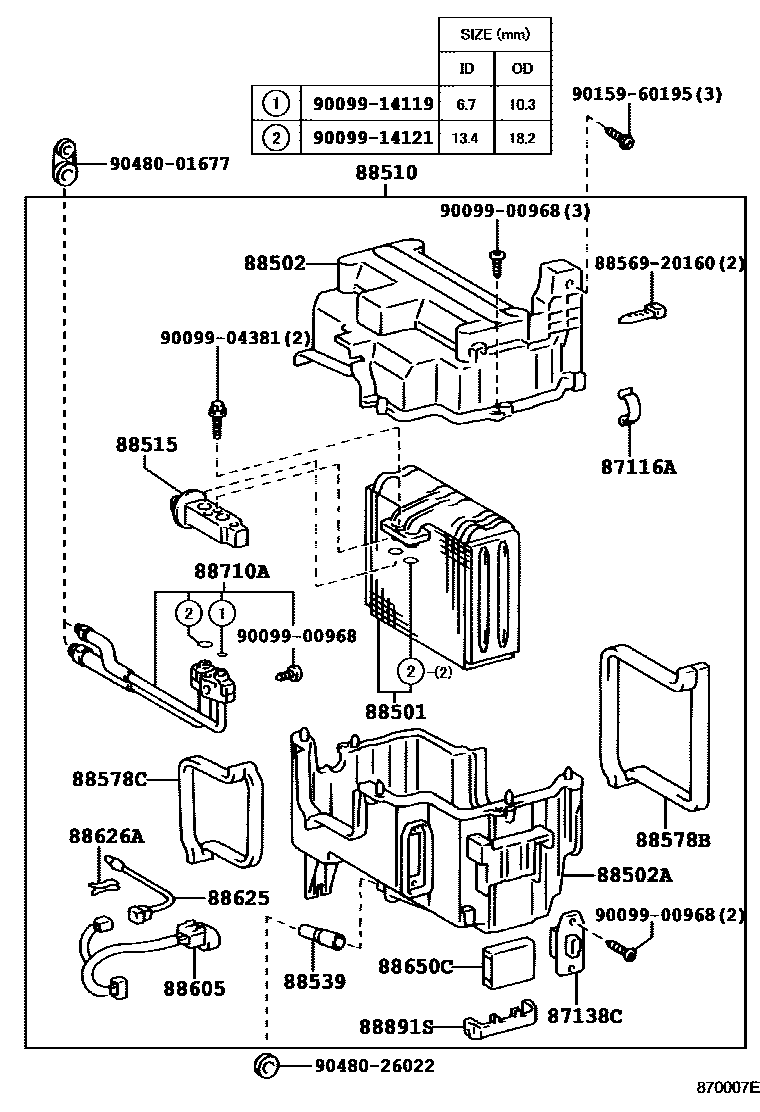

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����--����� 0002 1����--�-� 0003 1����--����� �-� 0004 1��

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iKZJ9#,RZJ9#,VZJ9#199604-199801

87138CRESISTOR, BLOWER

main87138-35050iKZJ9#,VZJ9#199604-199801

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35040iKZJ9#,RZJ9#,VZJ9#199604-199906

main88501-60260iKDJ9#..RS,RX,RZ,TS,TX200112-200211

sub88501-60320

88502CASE SUB-ASSY, COOLING UNIT

main88502-35010iKDJ95..05S;KDJ9#..RS,RX,RZ,TS199906-200112

main88521-60080iKDJ9#..RS,RX,RZ,TS,TX200112-200211

88502ACASE SUB-ASSY, COOLING UNIT

main88502-35020iKZJ95,RZJ95,VZJ95..08S..TX199802-199804

main88502-35021iKDJ95..05S;KDJ9#..RS,RX,RZ,TS199906-200112

main88521-60090iKDJ9#..RS,RX,RZ,TS,TX200112-200211

88510UNIT ASSY, COOLER

main88510-35530iVZJ9#199604-199801

sub88510-35531

main88510-35540iKZJ9#199604-199801

sub88510-35541

main88510-35550iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199801

main88510-35551iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199802-199807

main88510-60850iKZJ95,VZJ95..TZ199604-199801

main88510-6A160iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199807-199906

main88510-6A161iRZJ9#,VZJ9#..RX,RZ,TX200112-200209

main88510-6A190iKZJ95,RZJ95,VZJ95..08S..(TX,TZ)199807-199906

main88510-6A340iKDJ9#..RS,RX,RZ,TS,TX200112-200211

88515VALVE, COOLER EXPANSION

main88515-20100iKZJ9#,RZJ9#,VZJ9#199604-199906

sub88515-22240

main88515-60110iKDJ9#..RS,RX,RZ,TS,TX200112-200211

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-35010iKZJ9#,RZJ9#,VZJ9#199604-199801

88578BPACKING, COOLING UNIT, NO.1

main88578-35040iKZJ95..08S..TX;RZJ9#,VZJ95..RX,TX199801-199906

88578CPACKING, COOLING UNIT, NO.2

main88578-35050iKZJ95..08S..TX;RZJ9#,VZJ95..RX,TX199801-199906

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35220iVZJ9#199604-199801

main88605-35230iKZJ9#199604-199801

main88605-35290iKZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199801

88625THERMISTOR, COOLER, NO.1

main88625-3A090iKZJ9#,RZJ9#,VZJ9#199604-199801

main88625-3A110iKDJ9#..RS,RX,RZ,TS,TX200112-200211

88626AHOLDER, THERMISTOR

main88626-28010iKZJ9#,RZJ9#,VZJ9#199604-199801

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-35040iKZJ9#199604-199801

main88650-35060iVZJ9#199604-199801

88710ATUBE ASSY, AIR CONDITIONER

main88710-35280iKZJ9#,RZJ9#,VZJ9#199604-199801

main88710-35370iKZJ9#,RZJ9#,VZJ9#199807-199906

main88710-6A610iKDJ9#..RS,RX,RZ,TS,TX200112-200211

88891SCOVER, COOLER, NO.1

main88891-35010iKZJ9#,RZJ9#,VZJ9#199604-199801

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9015960195

main90159-60195

9048001677

main90480-01677

9048026022

main90480-26022
