HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1�����-� ����(����� ����) 0002 1�����-� ����(�-� ����) 0003 1�����-� ����-�(����� ����) 0004 1�����-� ����-�(�-� ����) 0005 1���-� ���� 0006 1����� �-�

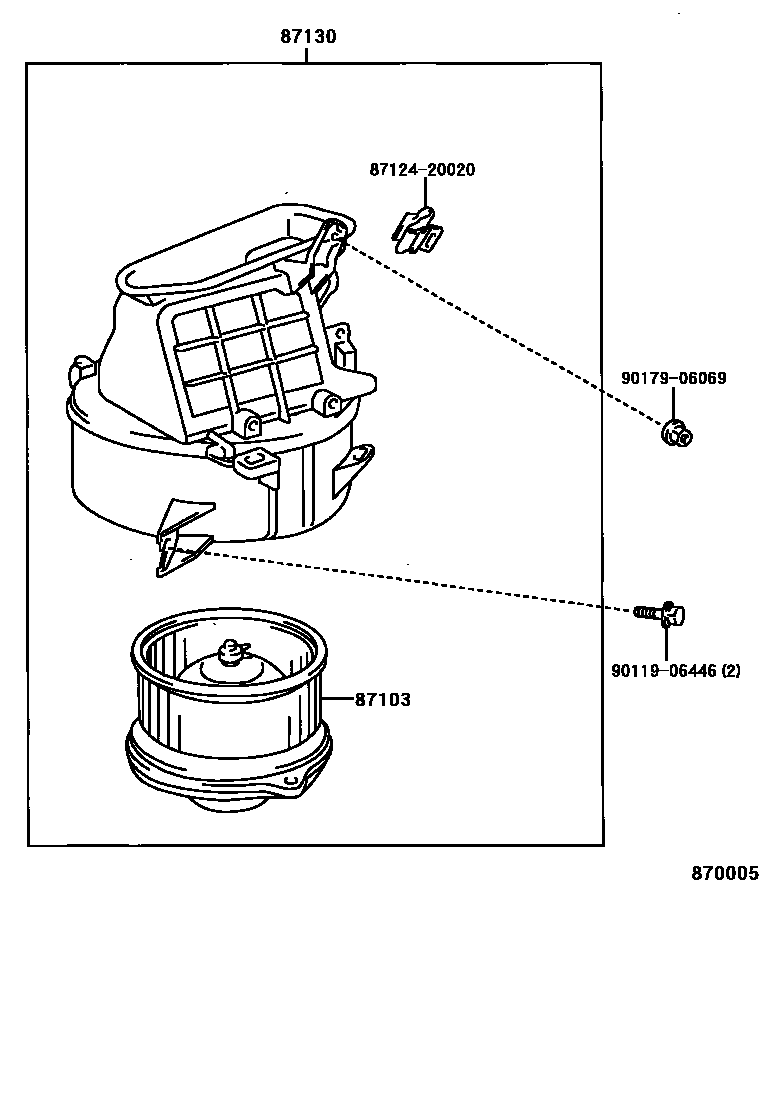

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-35010iKZJ9#,RZJ9#,VZJ9#199604-199807

main87103-35030iKZJ9#,RZJ9#,VZJ9#199808-199906

87130BLOWER ASSY, HEATER, FRONT

main87130-35050iKZJ9#,VZJ9#199604-199801

main87130-35060iVZJ95..TZ;KZJ9#,VZJ90..RS,RX,RZ,TS,TX,TZ199604-199906

main87130-35130iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

8712420020CLAMP, HEATER

main87124-20020

9011906446

main90119-06446

9017906069

main90179-06069

5 parts on this diagram · 6 diagrams in section
