WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60240iKZJ9#,RZJ9#,VZJ9#199604-199906

85160LINK ASSY, WINDSHIELD WIPER

main85150-60170iKZJ9#,RZJ9#,VZJ9#199604-199906

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iKZJ9#,RZJ9#,VZJ9#199604-199906

85211BARM, FRONT WIPER, RH

main85211-60110iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

85212ABLADE, FR WIPER, RH

main85212-60070iKZJ9#,RZJ9#,VZJ9#199604-199906

85214ARUBBER, WIPER, RH

main85214-35040iKZJ9#,RZJ9#,VZJ9#199604-199906

main85214-48020iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub85214-53041

85214BRUBBER, WIPER, LH

main85214-22420iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub85214-46011

main85214-35030iKZJ9#,RZJ9#,VZJ9#199604-199906

85221BARM, FRONT WIPER, LH

main85221-60140iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

85222ABLADE, FR WIPER, LH

main85222-22780iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub85222-20391

main85222-60150iKZJ9#,RZJ9#,VZJ9#199604-199906

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60090iKZJ9#,RZJ9#,VZJ9#199604-199906

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60090iKZJ9#,RZJ9#,VZJ9#199604-199906

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60100iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60100iKZJ9#,RZJ9#,VZJ9#199604-199906

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-60020iKZJ9#,RZJ9#,VZJ9#199604-199906

sub85291-33050

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030iKZJ9#,RZJ9#,VZJ9#199604-199906

sub85291-22080

9011906187

main90119-06187

9017908113

main90179-08113

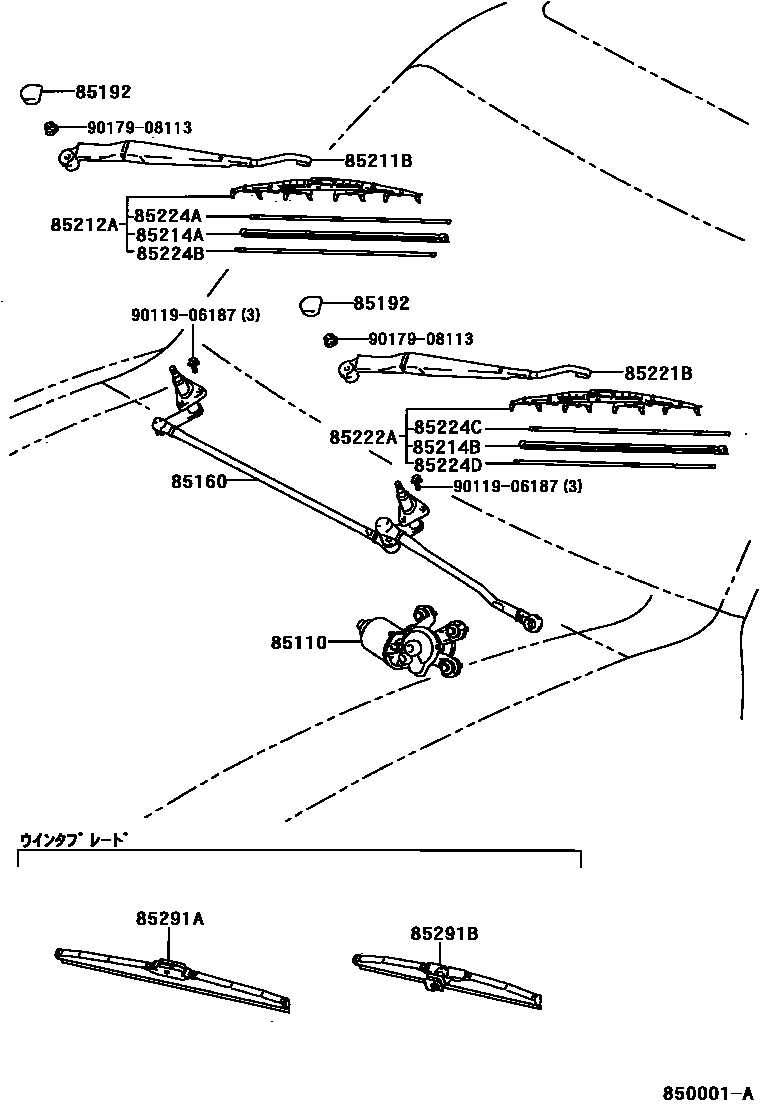

17 parts on this diagram · 1 diagram in section
