METER

0001 1�������� 0002 1�������� 0003 1����������� 0004 1����� & ���� 0005 1����� & ���� 0006 1����� & ����(��������) 0007 1����� & ����(�����������) 0008 1���� & ���-���-���� 0009 1������-�(���������) 0010 1������-�(��-������)

83110SPEEDOMETER ASSY

main83220-60010iRZJ9#,VZJ9#199604-199906

main83220-60020iKZJ9#199604-199906

main83220-60630iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main83220-60700iVZJ9#..ATM199906-200008

main83220-60701iVZJ9#..ATM200008-200209

main83220-60710iVZJ90..MTM199906-200008

main83220-60711iVZJ90..MTM200008-200209

main83220-60720iKZJ9#..ATM..(RX,RZ,TX,TZ)199906-200008

main83220-60721iKDJ9#..ATM..(RX,RZ,TX,TZ)200008-200211

main83220-60730iKZJ9#..MTM199906-200008

main83220-60731iKDJ9#..MTM200008-200211

main83220-60740iVZJ9#..ATM199906-200008

main83220-60741iVZJ9#..ATM200008-200209

main83220-60750iKZJ9#..ATM..(RX,RZ,TX,TZ)199906-200008

main83220-60751iKDJ9#..ATM..(RX,RZ,TX,TZ)200008-200211

main83220-60760iRZJ9#199906-200008

main83220-60761iRZJ9#200008-200209

83132CASE, COMBINATION METER

main83841-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

main83841-6B160iRZJ9#,VZJ95..RX,TX199906-200008

sub83841-6B161

main83841-6B161iRZJ9#,VZJ95..RX,TX200008-200209

main83841-6B280iVZJ95..TX199906-200008

sub83841-6B281

main83841-6B281iVZJ95..TX200008-200209

main83841-6B490iKZJ9#..MTM..(RX,TX)199906-200008

main83841-6B500iKZJ9#..ATM..(RS,RX,TS,TX)199906-200008

main83841-6B510iKZJ9#..ATM..(RX,TX)199906-200008

main83841-6B850iVZJ90..MTM199906-200209

main83841-6B860iRZJ9#,VZJ9#..ATM199906-200209

main83841-6B880iKZJ9#..MTM199906-200008

main83841-6B880iKDJ9#..MTM200008-200211

main83841-6B890iKDJ9#,KZJ9#..ATM..(RX,RZ,TX,TZ)199906-200211

main83841-6C010iKZJ9#..ATM..(RX,RZ,TX,TZ)199906-200008

main83841-6C010iKDJ9#..ATM..(RX,RZ,TX,TZ)200008-200211

main83841-6C050iKDJ9#..ATM..(RX,TX)200008-200211

main83841-6C550iKDJ9#..MTM..(RX,TX)200008-200211

main83841-6C560iKDJ9#..ATM..(RS,RX,TS,TX)200008-200211

main83842-6B870iVZJ9#..ATM199906-200209

83136ACOVER, COMBINATION METER

main83851-60050iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

main83851-60060iKZJ9#,VZJ90..MTM199604-199906

83138GLASS, SPEEDOMETER

main83852-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

main83852-6B160iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main83852-6B870iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199906-200211

83145LENS, METER, NO.1

main83831-60070iKZJ9#,RZJ9#,VZJ9#199604-199906

sub83831-60050

main83831-6B160iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

83145ALENS, METER, NO.2

main83832-60050iRZJ9#,VZJ9#199604-199906

main83832-60070iKZJ9#199604-199906

main83832-6B160iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

83145BLENS, METER, NO.3

main83831-6A740iKDJ9#,RZJ9#,VZJ95..RS,RX,TS,TX200008-200211

main83831-6B490iKZJ9#..MTM..(RX,TX)199906-200008

main83833-60050iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

main83833-6B160iKZJ9#,RZJ9#,VZJ95..ATM..(RS,RX,TS,TX)199906-200008

83145CLENS, METER, NO.4

main83834-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

main83834-6B160iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

83145DLENS, METER, NO.5

main83835-60050iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

main83835-6B160iKDJ9#,KZJ9#,RZJ9#,VZJ95..ATM..(RS,RX,TS,TX)199906-200211

83145ELENS, METER, NO.6

main83887-60050iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

83242TACHOMETER ASSY, ENGINE

main83881-60050iVZJ9#199604-199906

main83881-60070iKZJ9#199604-199906

main83881-60180iRZJ9#199704-199906

main83881-6B160iRZJ9#,VZJ95..RX,TX199906-200209

main83881-6B510iKDJ9#,KZJ9#..RS,RX,TS,TX199906-200211

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

main83882-6B160iKDJ9#,KZJ9#,RZJ9#,VZJ95..ATM..(RS,RX,TS,TX)199906-200211

main83882-6B280iVZJ95..TX199906-200209

main83882-6B490iKDJ9#,KZJ9#..MTM..(RX,TX)199906-200211

main83882-6B510iKDJ9#,KZJ9#..ATM..(RX,TX)199906-200211

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

83247PLATE, METER CIRCUIT

main83291-60010iRZJ9#200008-200209

main83291-60020iVZJ90..MTM200008-200209

main83291-60030iVZJ9#..ATM200008-200209

main83291-60040iVZJ9#..ATM200008-200209

main83291-60050iKDJ9#..ATM..(RX,RZ,TX,TZ)200008-200211

main83291-60060iKDJ9#..MTM200008-200211

main83291-60070iKDJ9#..ATM..(RX,RZ,TX,TZ)200008-200211

main83861-60050iRZJ9#,VZJ9#..ATM199604-199801

main83861-60060iVZJ90..MTM199604-199801

main83861-60061iVZJ90..MTM199801-199906

main83861-60070iKZJ9#..ATM199604-199906

main83861-60080iKZJ9#..MTM199604-199906

main83861-60190iRZJ9#,VZJ9#..ATM199801-199906

main83861-6B840iRZJ9#199906-200008

main83861-6B850iVZJ90..MTM199906-200008

main83861-6B860iVZJ9#..ATM199906-200008

main83861-6B870iVZJ9#..ATM199906-200008

main83861-6B880iKZJ9#..MTM199906-200008

main83861-6B890iKZJ9#..ATM..(RX,RZ,TX,TZ)199906-200008

main83861-6C010iKZJ9#..ATM..(RX,RZ,TX,TZ)199906-200008

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316126060CASE, COMBINATION METER MIRROR, NO.1

main83161-26060

831612D040CASE, COMBINATION METER MIRROR, NO.1

main83161-2D040

8316136040CASE, COMBINATION METER MIRROR, NO.1

main83161-36040

9016750028

main90167-50028

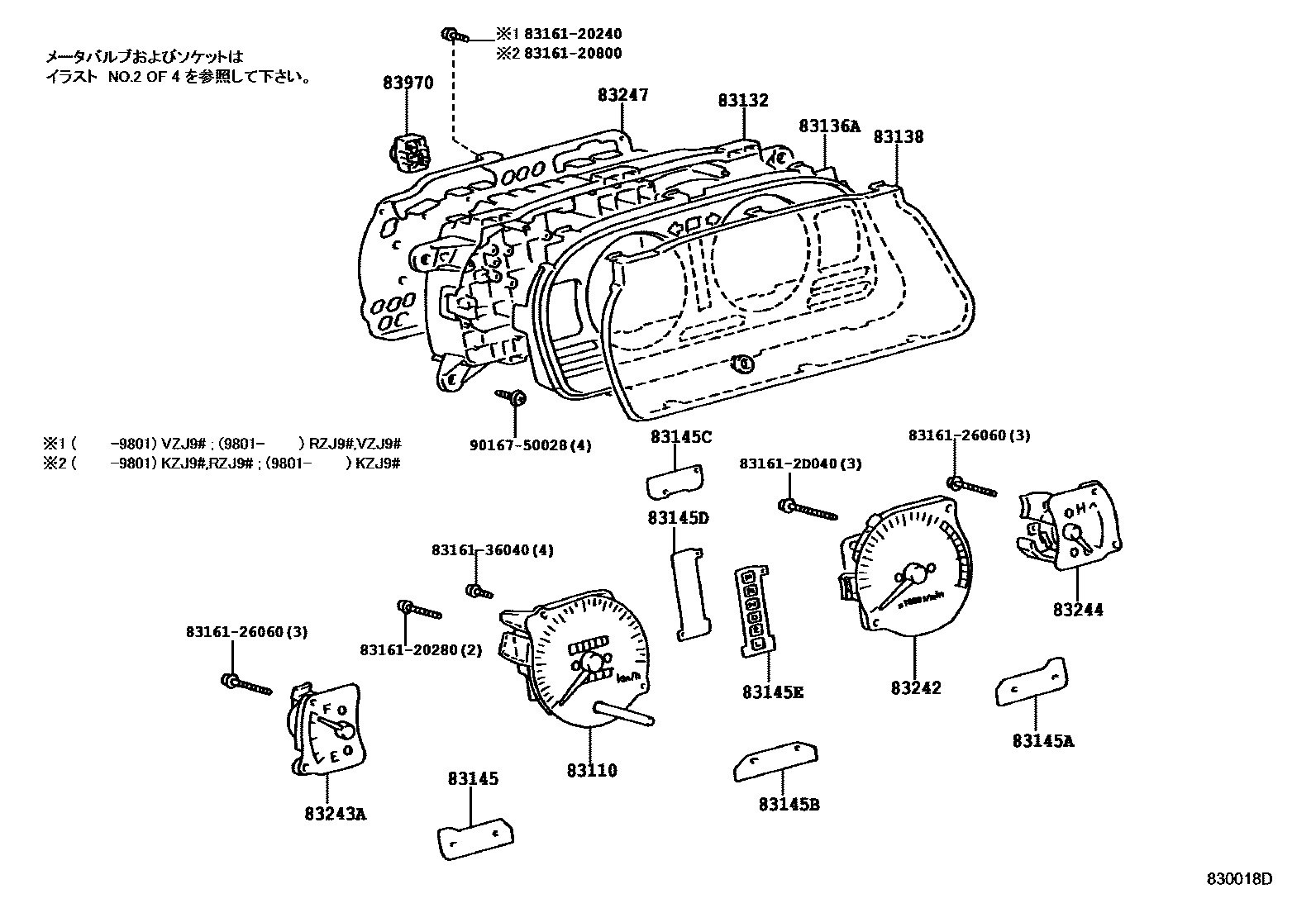

22 parts on this diagram · 10 diagrams in section
