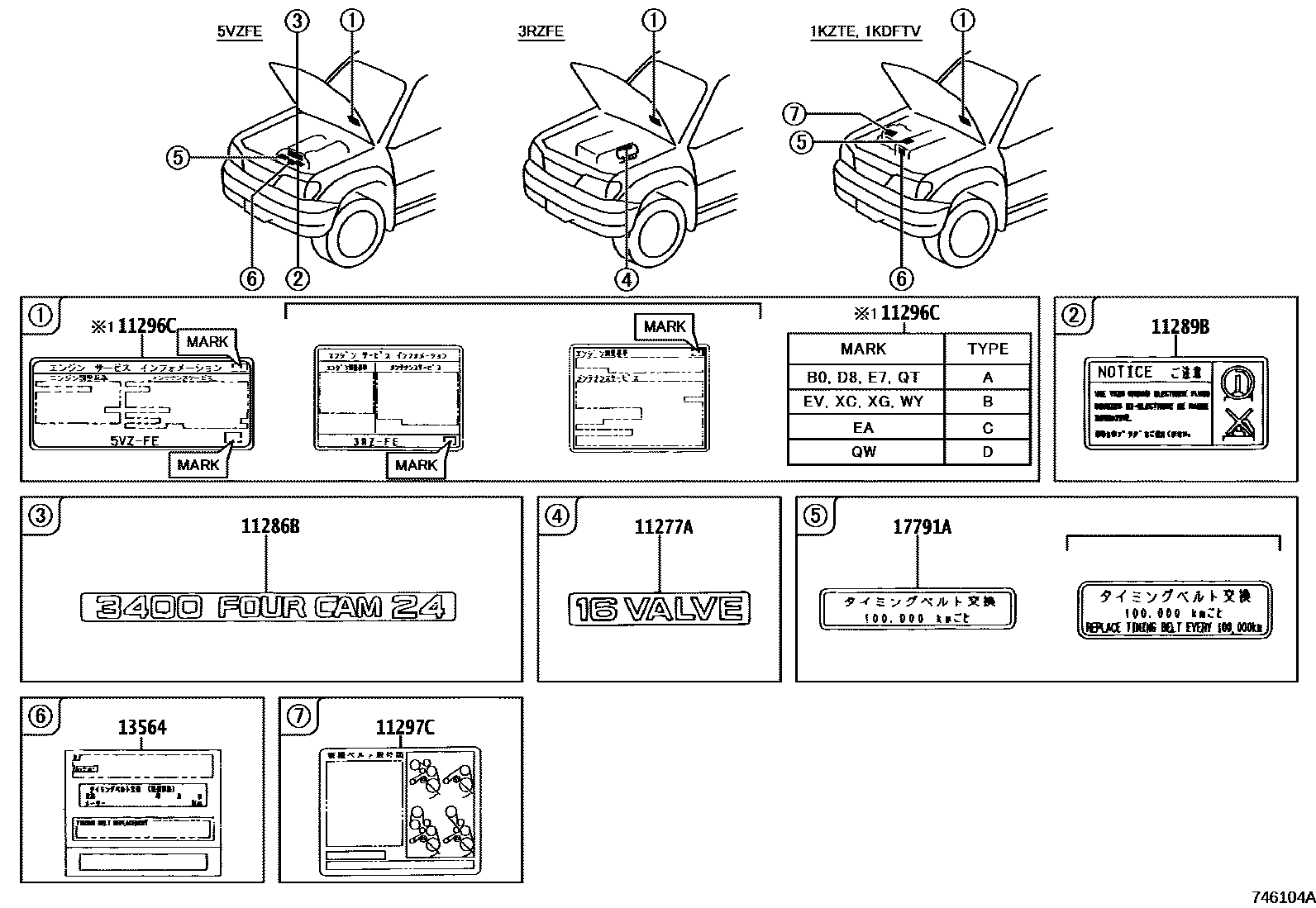

CAUTION PLATE

0001 1 0002 1 0003 1

11277APLATE, ENGINE SPECIFICATION, NO.2

main11292-74130i3RZFE..RZJ9#199704-199905

11286BPLATE, ENGINE SPECIFICATION

main11288-62010i5VZFE..VZJ9#199604-200209

11289BLABEL, SPARK PLUG NOTICE

main11289-62020i5VZFE..VZJ9#199604-200209

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-30010i1KDFTV..KDJ9#200008-200205

main11296-30011i1KDFTV..KDJ9#200205-200211

main11296-62070i5VZFE..VZJ9#199604-199906

main11296-62070i5VZFE..VZJ9#199906-200205

main11296-62071i5VZFE..VZJ9#200205-200209

main11296-67020i1KZTE..KZJ9#199604-199710

main11296-67040i1KZTE..KZJ9#199710-199906

main11296-67050i1KZTE..KZJ9#199906-200004

sub11296-67051

main11296-67051i1KZTE..KZJ9#200004-200008

main11296-75061i3RZFE..RZJ9#199906-200205

main11296-75061i3RZFE..RZJ9#199704-199906

main11296-75062i3RZFE..RZJ9#200205-200209

11297CLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-30010i1KDFTV..KDJ9#200008-200211

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010i1KZTE,5VZFE..KZJ9#,VZJ9#199604-200211

17791ALABEL, MAINTENANCE INFORMATION

main17791-55010i1K#..KDJ9#,KZJ9#199604-200211

main17791-74040i5VZFE..VZJ9#199604-200209

7 parts on this diagram · 3 diagrams in section
