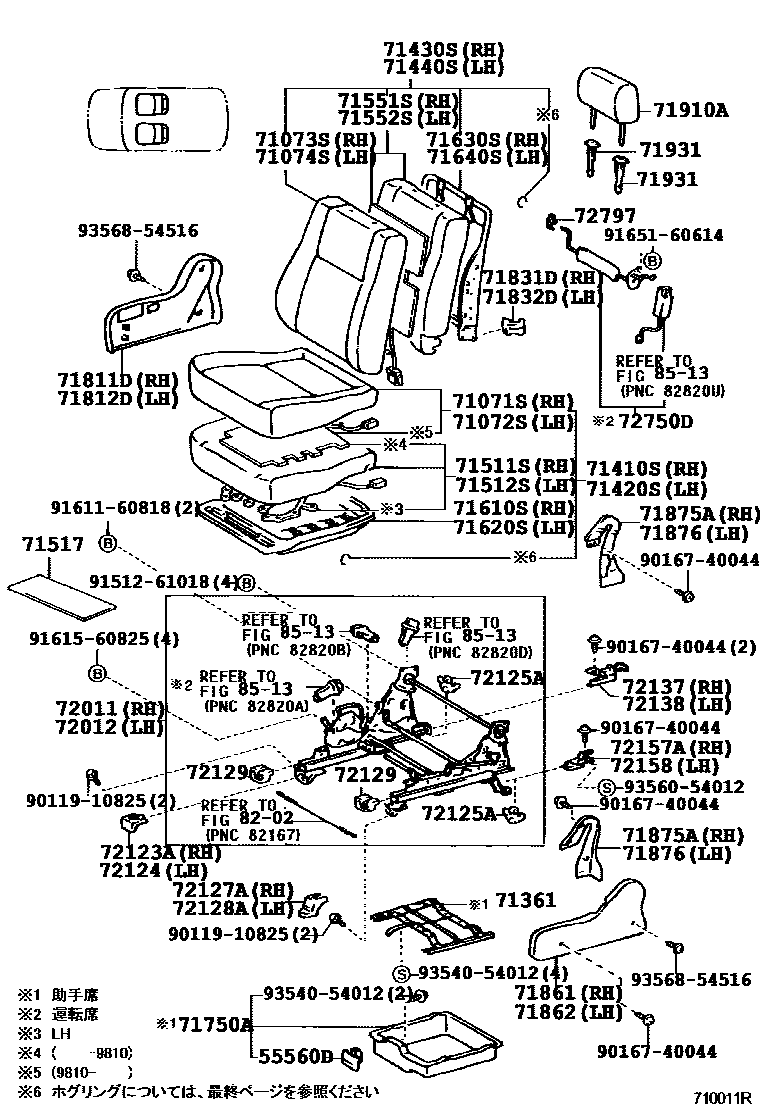

SEAT & SEAT TRACK

0001 1���� �-� : ���- �-� 0002 1���� �-� : ����� �-� 0003 1�� �-� : ���� ���� 0004 1�� �-� : �-����� ����� ���� 0005 1�� �-� : �-����� ����� ���� 0006 1�� NO.1 �-� : ���� ���� 0007 1�� NO.1 �-� : �-����� ����� �0008 1�� NO.1 �-� : �-����� ����� �0009 1�� NO.1:�-����� & ����� �����0010 1�� NO.1:�-����� & ����� �����0011 1�� NO.2 �-� : ���� ���� 0012 1�� NO.2 �-� : ������ ���� 0013 1�������

55560DLOCK ASSY, SEAT UNDER TRAY

main55560-95J00-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

BLACK,TRIM1#,4#

sub55560-95J00

sub55560-26010

sub72250-36010

main72250-36010-B0iKZJ95,VZJ95..TZ199604-199906

sub72250-36010

main72250-36010-C0iKZJ95,VZJ95..TZ199906-200209

sub72250-36010

main72250-36010-C0iKDJ95..TZ200008-200211

BLACK,TRIM4#

sub72250-36010

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60700-B1iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71071-60700-B1iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71071-60700-B1iKZJ9#,VZJ9#..RZ,TZ199604-199906

GRAY,TRIM1#

main71071-60710-B0iKZJ95,VZJ95..TZ199604-199810

main71071-60730-B1iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

GRAY,TRIM1#

main71071-60740-B1iKZJ9#..RJ,TJ199604-199801

GRAY,TRIM1#

main71071-60860-B0iKZJ95,VZJ95..TZ199810-199906

main71071-60880-B0iKZJ90,RZJ90..ATM..RX199704-199712

TYPE S *(S),MD.MOON MIST,TRIM1#

main71071-6A110-E0iKDJ95,KZJ95,VZJ95..TZ199906-200209

main71071-6A111-E0iKDJ95..TZ200209-200211

main71071-6A170-B0iKZJ95..MTM..TZ;KZJ95..08S..ATM..(TX,TZ);KDJ9#,KZJ90,VZJ9#..RZ,TZ199906-200211

main71071-6A170-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71071-6A210-B0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71071-6A210-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71071-6A290-E0iKDJ95,RZJ95..08S..ATM..TX200108-200211

sub71071-6A291

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-60720-B1iKZJ9#,VZJ9#..RZ,TZ199604-199906

GRAY,TRIM1#

main71071-60720-B1iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71071-60720-B1iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71071-60740-B1iKZJ9#..RJ,TJ199604-199801

GRAY,TRIM1#

main71071-60830-B0iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

GRAY,TRIM1#

main71071-60870-B0iKZJ90,RZJ90..ATM..RX199704-199712

TYPE S *(S),MD.MOON MIST,TRIM1#

main71071-6A120-B0iKDJ95,RZJ95..08S..ATM..TX199906-200211

main71071-6A120-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71071-6A220-B0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71071-6A220-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71072-60600-B0iKZJ95,VZJ95..TZ199604-199810

main71072-60650-B0iKZJ95,VZJ95..TZ199810-199906

main71072-60770-E0iKDJ95,KZJ95,VZJ95..TZ199906-200209

main71072-60771-E0iKDJ95..TZ200209-200211

main71072-60830-E0iKDJ95,RZJ95..08S..ATM..TX200108-200211

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-60030-E0iKDJ95,RZJ95..08S..ATM..TX200108-200211

main71073-60700-B1iKZJ9#,VZJ9#..RZ,TZ199604-199906

GRAY,TRIM1#

main71073-60710-B0iKZJ95,VZJ95..TZ199604-199906

main71073-60730-B1iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

GRAY,TRIM1#

main71073-60740-B1iKZJ9#..RJ,TJ199604-199801

GRAY,TRIM1#

main71073-60840-B0iKZJ90,RZJ90..ATM..RX199704-199712

TYPE S *(S),MD.MOON MIST,TRIM1#

main71073-6A090-B0iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71073-6A090-B0iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71073-6A100-B0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71073-6A100-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71073-6A110-B0iKDJ95,KZJ95,RZJ95..08S..ATM..TX199906-200108

main71073-6A120-B0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71073-6A120-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71073-6A260-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71027-60030-E0iKDJ95,RZJ95..08S..ATM..TX200108-200211

main71073-60720-B1iKZJ9#,VZJ9#..RZ,TZ199604-199906

GRAY,TRIM1#

main71073-60720-B1iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71073-60720-B1iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71073-60730-B1iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

GRAY,TRIM1#

main71073-60740-B1iKZJ9#..RJ,TJ199604-199801

GRAY,TRIM1#

main71073-60850-B0iKZJ90,RZJ90..ATM..RX199704-199712

TYPE S *(S),MD.MOON MIST,TRIM1#

main71073-6A110-B0iKDJ95,RZJ95..08S..ATM..TX199906-200211

main71073-6A110-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71073-6A120-B0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71073-6A120-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71074-60650-B0iKZJ95,VZJ95..TZ199604-199906

main71074-60790-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

71361BRACKET, FRONT SEAT SET, NO.1

main71362-60030iKDJ95,KZJ95,VZJ95..TZ199604-200211

main71362-60040iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-200211

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-6A300-B0iKZJ95,VZJ95..TZ199604-199906

main71410-6A320-B0iKZJ90,RZJ90..ATM..RX199704-199712

***,TYPE S *(S),MD.MOON MIST,TRIM1#

main71410-6A390-B0iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71410-6A390-B0iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71410-6A390-B0iKZJ9#,VZJ9#..RZ,TZ199604-199906

***,MD.MOON MIST,TRIM1#

main71410-6A400-B0iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

***,MD.MOON MIST,TRIM1#

main71410-6A420-B0iKZJ9#..RJ,TJ199604-199801

***,MD.MOON MIST,TRIM1#

main71410-6A780-E0iKDJ95,KZJ95,VZJ95..TZ200001-200211

main71410-6A860-B1iKZJ95..MTM..TZ;KZJ95..08S..ATM..(TX,TZ);KDJ9#,KZJ90,VZJ9#..RZ,TZ199906-200211

main71410-6A860-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71410-6B010-B1iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX200001-200211

main71410-6B010-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX200001-200211

main71410-6B220-E1iKDJ95,RZJ95..08S..ATM..TX200108-200211

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-6A330-B0iKZJ90,RZJ90..ATM..RX199704-199712

***,TYPE S *(S),MD.MOON MIST,TRIM1#

main71410-6A420-B0iKZJ9#..RJ,TJ199604-199801

***,MD.MOON MIST,TRIM1#

main71410-6A560-B0iKZJ95,VZJ95..TZ199604-199906

main71410-6A640-B0iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

***,MD.MOON MIST,TRIM1#

main71410-6A830-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main71410-6A880-B1iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71410-6A880-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71420-6A230-B0iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71420-6A230-B0iKZJ9#,VZJ9#..RZ,TZ199604-199906

***,MD.MOON MIST,TRIM1#

main71420-6A230-B0iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71420-6A520-B1iKZJ95..MTM..TZ;KZJ95..08S..ATM..(TX,TZ);KDJ9#,KZJ90,VZJ9#..RZ,TZ199906-200211

main71420-6A520-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71420-6A700-E1iKDJ95,RZJ95..08S..ATM..TX200108-200211

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-60010-B0iKZJ90,RZJ90..ATM..RX199704-199712

***,TYPE S *(S),MD.MOON MIST,TRIM1#

main71040-60240-B0iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71040-60240-B0iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71040-60330-B1iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71040-60330-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71040-60340-B1iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71040-60340-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71040-60580-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main71040-60710-E1iKDJ95,RZJ95..08S..ATM..TX200108-200211

main71070-60150-B1iKDJ95,KZJ95,RZJ95..08S..ATM..TX199906-200108

main71430-60880-B0iKZJ95,VZJ95..TZ199604-199906

main71430-6A140-B0iKZJ9#,VZJ9#..RZ,TZ199604-199906

***,MD.MOON MIST,TRIM1#

main71430-6A160-B0iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

***,MD.MOON MIST,TRIM1#

main71430-6A170-B0iKZJ9#..RJ,TJ199604-199801

***,MD.MOON MIST,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71040-60020-B0iKZJ90,RZJ90..ATM..RX199704-199712

***,TYPE S *(S),MD.MOON MIST,TRIM1#

main71040-60340-B1iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71040-60340-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71040-60590-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main71040-60710-E1iKDJ95,RZJ95..08S..ATM..TX200108-200211

main71070-60150-B1iKZJ95..MTM..TZ;KZJ95..08S..ATM..(TX,TZ);KDJ9#,KZJ90,VZJ9#..RZ,TZ199906-200211

main71070-60150-E0iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71430-60890-B0iKZJ95,VZJ95..TZ199604-199906

main71430-6A160-B0iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

***,MD.MOON MIST,TRIM1#

main71430-6A170-B0iKZJ9#..RJ,TJ199604-199801

***,MD.MOON MIST,TRIM1#

main71440-60820-B0iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71440-60820-B0iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71440-60820-B0iKZJ9#,VZJ9#..RZ,TZ199604-199906

***,MD.MOON MIST,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60030iKZJ95,VZJ95..TZ199604-199810

main71501-60120iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

main71511-60110iKZJ9#,RZJ9#,VZJ9#199604-199906

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71501-60030iKZJ95,VZJ95..TZ199604-199810

main71501-60140iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

main71511-60110iKZJ9#,RZJ9#,VZJ9#199604-199906

71517CLOTH, FRONT SEAT CUSHION UNDER

main71517-35060iKDJ9#,RZJ9#,VZJ9#200102-200211

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-60050iKDJ95,KZJ95,VZJ95..TZ199604-200209

main71505-60051iKDJ95..TZ200209-200211

main71551-60180iKZJ9#,RZJ9#,VZJ9#199604-200211

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-60050iKZJ95,VZJ95..TZ199604-200209

main71506-60051iKDJ95..TZ200209-200211

main71551-60180iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-35060iKZJ9#,RZJ9#,VZJ9#199604-200211

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-35060iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-60110iKZJ9#,VZJ9#..RZ,TZ199604-200211

main71630-60120iKZJ9#,RZJ9#,VZJ95..RJ,RS,RX,TJ,TS,TX199604-200211

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-60110iKDJ95,KZJ95,VZJ95..TZ199906-200211

main71630-60120iKZJ9#,RZJ9#,VZJ9#199604-200211

71750ATRAY ASSY, FRONT SEAT UNDER

main71750-60010-B0iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199906

MD.MOON MIST,TRIM1#

sub71750-60010

main71750-60010-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

BLACK,TRIM1#,4#

sub71750-60010

main71750-60020-B0iKZJ95,VZJ95..TZ199604-199906

main71750-60030-C0iKDJ95,KZJ95,VZJ95..TZ199906-200211

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-60050iKZJ9#..RJ,TJ199604-199801

sub71811-60051

main71811-60060-B0iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199801

MD.MOON MIST,TRIM1#

sub71811-60061

main71811-60061-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199801-200211

MD.MOON MIST,TRIM1#

sub71811-60061

main71811-60061-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub71811-60061

main71811-60070-B0iKZJ95,VZJ95..TZ199604-199712

sub71811-60071

main71811-60071-B0iKZJ95,VZJ95..TZ199712-199906

sub71811-60071

main71811-60071-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub71811-60071

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-60050-B0iKZJ9#,RZJ9#,VZJ9#199604-199801

MD.MOON MIST,TRIM1#

sub71812-60051

main71812-60051-B0iKZJ9#,RZJ9#,VZJ9#199801-200211

MD.MOON MIST,TRIM1#

main71812-60051-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

main71812-60080-B0iKZJ95,VZJ95..TZ199604-199712

sub71812-60081

main71812-60081-B0iKZJ95,VZJ95..TZ199712-199906

sub71812-60081

main71812-60081-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub71812-60081

71831DCOVER, FRONT SEAT HINGE, RH

main71831-35050iKZJ9#,RZJ9#,VZJ9#199604-200211

71832DCOVER, FRONT SEAT HINGE, LH

main71832-35050iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-200211

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-60040-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub71861-60040

main71861-60040-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub71861-60040

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-60040-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

main71862-60040-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60030-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

sub71875-60030

main71875-60030-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub71875-60030

main71875-60050-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

sub71875-60050

main71875-60050-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub71875-60050

main71875-60060-B0iKZJ95,VZJ95..TZ199604-199906

sub71875-60060

main71875-60060-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub71875-60060

main71876-60060-B0iKZJ95,VZJ95..TZ199604-199906

sub71876-60060

main71876-60060-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub71876-60060

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-60070-B0iKZJ95,VZJ95..TZ199604-199906

sub71875-60070

main71875-60070-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub71875-60070

main71876-60030-B0iKZJ95,RZJ95,VZJ95199604-200211

sub71876-60030

main71876-60030-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

sub71876-60030

main71876-60040-B0iKZJ90,RZJ90,VZJ90199604-200211

sub71876-60040

main71876-60040-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

sub71876-60040

main71876-60050-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

sub71876-60050

main71876-60050-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub71876-60050

main71876-60070-B0iKZJ95,VZJ95..TZ199604-199906

sub71876-60070

main71876-60070-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub71876-60070

71910AHEADREST ASSY, FRONT SEAT

main71910-60250-B1iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

MD.MOON MIST,TRIM1#

main71910-60280-B0iKZJ95,VZJ95..TZ199604-199906

main71910-60320-B0iKZJ95,RZJ95..08S..ATM..TX199708-199712

main71910-60320-B0iKZJ9#,VZJ9#..RZ,TZ199604-199906

MD.MOON MIST,TRIM1#

main71910-60320-B0iKZJ95,RZJ95..08S..ATM..TX199801-199906

main71910-60390-B0iKZJ9#..RJ,TJ199604-199801

MD.MOON MIST,TRIM1#

main71910-60460-E1iKDJ95,KZJ95,VZJ95..TZ199906-200211

main71910-60470-B2iKDJ95,RZJ95..08S..ATM..TX199906-200211

main71910-60470-E1iKDJ9#,KZJ9#,VZJ9#..RZ,TZ199906-200211

main71910-60480-B2iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

main71910-60480-E1iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

71931SUPPORT, FRONT SEAT HEADREST

main71930-13030-B2iKDJ9#,KZJ9#,RZJ9#,VZJ9#199808-200211

sub71930-13030

main71930-13030-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub71930-13030

main71930-32020-B2iKZJ9#,VZJ9#199604-199702

sub71930-32020

main71930-44010-B0iKZJ9#,RZJ9#,VZJ9#199702-199808

sub71930-44010

main71931-12040-E8iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub71931-12040

sub71931-10020

main71931-12040-P6iKZJ9#,RZJ9#,VZJ9#199604-200211

sub71931-12040

sub71931-10020

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72010-60100iKZJ95,VZJ95..TZ199604-199906

main72010-60101iKDJ95,KZJ95,VZJ95..TZ199906-200211

main72011-60010iKZJ9#..RJ,TJ199604-199801

sub72011-60011

main72011-60020iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199801

sub72011-60022

main72011-60021iKZJ9#,RZJ9#,VZJ9#199801-199906

sub72011-60022

main72011-60022iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72012-60010iKZJ95,RZJ95,VZJ95199604-199801

sub72012-60011

main72012-60011iKZJ95,RZJ95,VZJ95199801-199906

main72012-60030iKZJ90,RZJ90,VZJ90199604-199801

sub72012-60031

main72012-60031iKZJ90,RZJ90,VZJ90199801-199906

main72012-60032iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

main72012-60100iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

main72020-60110iKZJ95,VZJ95..TZ199604-199906

main72020-60111iKDJ95,KZJ95,VZJ95..TZ199906-200211

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-60050-B0iKZJ9#,VZJ9#199604-199609

MD.MOON MIST,TRIM1#

main72123-60070-B0iKZJ9#,RZJ9#,VZJ9#199609-200211

MD.MOON MIST,TRIM1#

sub72123-60070

main72123-60070-E0iKDJ95,KZJ95,RZJ95..08S;KDJ90,KZJ90,RZJ90,VZJ9#199906-200211

OAK,TRIM4#

sub72123-60070

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-60030-B0iKDJ90,KZJ90,RZJ90,VZJ90199604-200211

MD.MOON MIST,TRIM1#

sub72124-60030

main72124-60030-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

sub72124-60030

main72124-60040-B0iKDJ95,KZJ95,RZJ95..05S199609-200211

MD.MOON MIST,TRIM1#

sub72124-60040

main72124-60040-E0iKDJ95,KZJ95,RZJ95..05S199906-200211

OAK,TRIM4#

sub72124-60040

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-60070iKZJ9#,RZJ9#,VZJ9#199604-200211

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-60010-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub72127-60010

main72127-60010-E0iKDJ95,KZJ95,RZJ95..05S199906-200211

OAK,TRIM4#

sub72127-60010

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72127-60010-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub72127-60010

main72127-60010-E0iKDJ95,KZJ95,RZJ95..05S199906-200211

OAK,TRIM4#

sub72127-60010

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-60030iKZJ9#,RZJ9#,VZJ9#199604-199801

main72129-60040iKDJ9#199801-200211

72137COVER, SEAT TRACK, OUTER RH

main72137-60030-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

main72137-60030-E0iKDJ95,KZJ95,RZJ95..08S;KDJ90,KZJ90,RZJ90,VZJ9#199906-200211

OAK,TRIM4#

main72137-60070iKZJ95,VZJ95..TZ199604-199906

main72137-60070-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub72137-60070

72138COVER, SEAT TRACK, OUTER LH

main72137-60030-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

main72137-60030-E0iKDJ95,KZJ95,RZJ95..08S;KDJ90,KZJ90,RZJ90,VZJ9#199906-200211

OAK,TRIM4#

main72138-60050iKZJ95,VZJ95..TZ199604-199906

main72138-60050-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub72138-60050

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-60050-B0iKDJ95,KZJ95,RZJ95..08S;KDJ90,KZJ90,RZJ90,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

main72157-60050-E0iKDJ95,KZJ95,RZJ95..05S199906-200211

OAK,TRIM4#

main72157-60080iKZJ95,VZJ95..TZ199604-199906

main72157-60080-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub72157-60080

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-60020-B0iKDJ95,KZJ95,RZJ95..08S;KDJ90,KZJ90,RZJ90,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

main72158-60020-E0iKDJ95,KZJ95,RZJ95..08S;KDJ90,KZJ90,RZJ90,VZJ9#199906-200211

OAK,TRIM4#

main72158-60050iKZJ95,VZJ95..TZ199604-199906

main72158-60050-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub72158-60050

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-60030iKZJ9#,VZJ9#..RZ,TZ199604-200211

main72750-60040iKZJ95,VZJ95..TZ199604-200211

72797SPACER, LUMBAR SUPPORT

main72797-50010iKZJ9#,VZJ9#..RZ,TZ199604-200211

8202

8513

9011910825

main90119-10825

9016740044

main90167-40044

9151261018

main91512-61018

9161160818

main91611-60818

9161560825

main91615-60825

9165160614

main91651-60614

9354054012

main93540-54012

9356054012

main93560-54012

9356854516

main93568-54516

55 parts on this diagram · 13 diagrams in section
