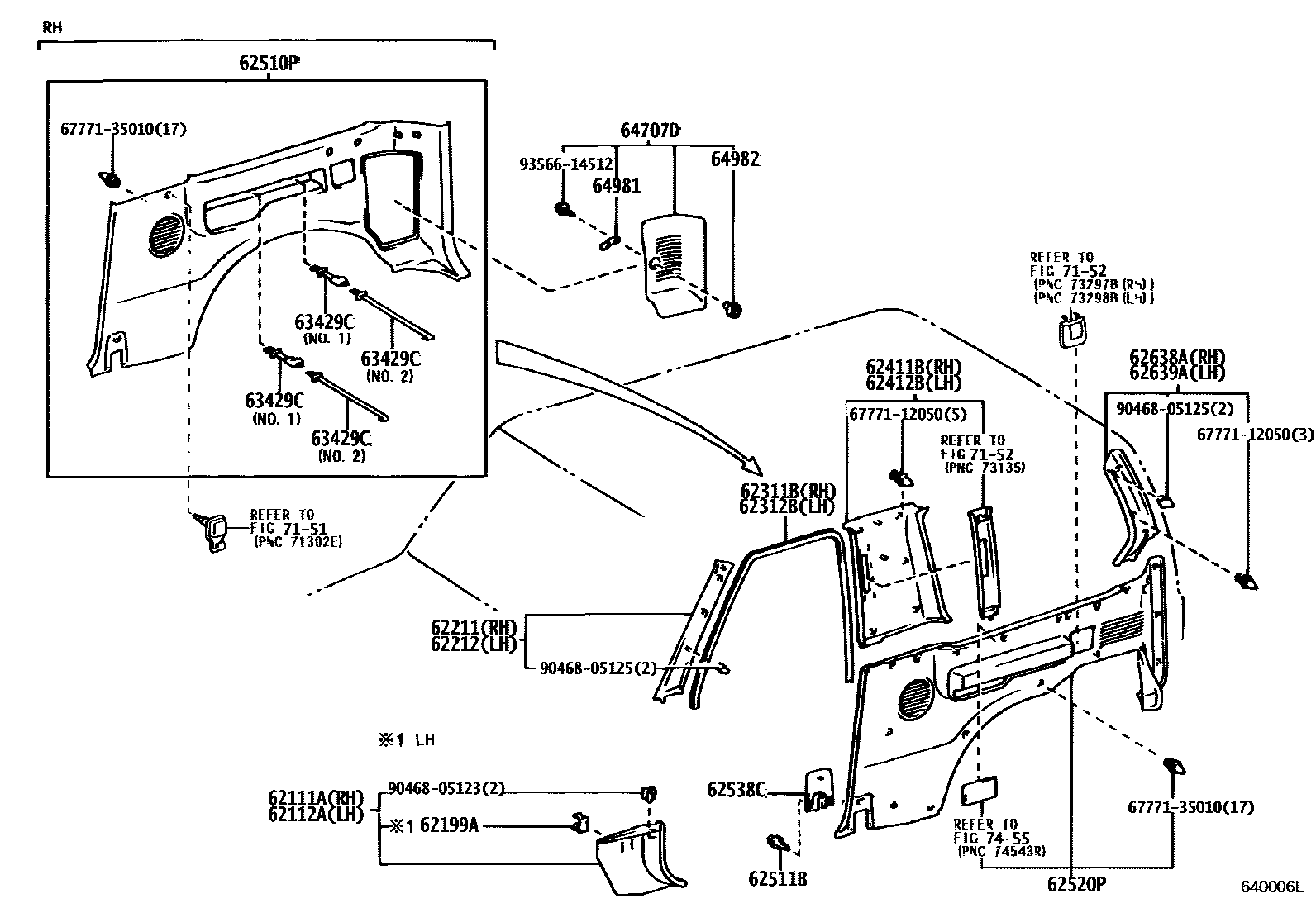

INSIDE TRIM BOARD

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-60070-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub62101-60070

main62101-60070-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub62101-60070

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-60120-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub62102-60120

main62102-60120-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub62102-60120

62199AHOLDER, FUSEE

main90468-25003iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

62211GARNISH, FRONT PILLAR, RH

main62211-60070-B0iKZJ9#,RZJ9#,VZJ9#199604-199906

MD.MOON MIST,TRIM1#

sub62211-60070

main62211-60070-B1iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MOON MIST,TRIM1#

sub62211-60070

main62211-60070-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MD.OAK,TRIM4#

sub62211-60070

62212GARNISH, FRONT PILLAR, LH

main62212-60070-B0iKZJ9#,RZJ9#,VZJ9#199604-199906

MD.MOON MIST,TRIM1#

sub62212-60070

main62212-60070-B1iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MOON MIST,TRIM1#

sub62212-60070

main62212-60070-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MD.OAK,TRIM4#

sub62212-60070

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-60050-B0iKZJ95,RZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

sub62311-60050

main62311-60050-B1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MOON MIST,TRIM1#

sub62311-60050

main62311-60050-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.OAK,TRIM4#

sub62311-60050

main62311-60060-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

sub62311-60060

main62311-60060-B1iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MOON MIST,TRIM1#

sub62311-60060

main62311-60060-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.OAK,TRIM4#

sub62311-60060

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-60050-B0iKZJ95,RZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

sub62312-60050

main62312-60050-B1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MOON MIST,TRIM1#

sub62312-60050

main62312-60050-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.OAK,TRIM4#

sub62312-60050

main62312-60060-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

sub62312-60060

main62312-60060-B1iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MOON MIST,TRIM1#

sub62312-60060

main62312-60060-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.OAK,TRIM4#

sub62312-60060

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-60060-B0iKZJ95,RZJ95,VZJ95199604-199906

MOON MIST,TRIM1#

sub62411-60060

main62411-60060-B1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MOON MIST,TRIM1#

sub62411-60060

main62411-60060-E1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.OAK,TRIM4#

sub62411-60060

main62411-60070-B0iKZJ90,RZJ90,VZJ90199604-199906

MOON MIST,TRIM1#

sub62411-60070

main62411-60070-B1iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MOON MIST,TRIM1#

sub62411-60070

main62411-60070-E1iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.OAK,TRIM4#

sub62411-60070

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-60060-B0iKZJ95,RZJ95,VZJ95199604-199906

MOON MIST,TRIM1#

sub62412-60060

main62412-60060-B1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MOON MIST,TRIM1#

sub62412-60060

main62412-60060-E1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.OAK,TRIM4#

sub62412-60060

main62412-60070-B0iKZJ90,RZJ90,VZJ90199604-199906

MOON MIST,TRIM1#

sub62412-60070

main62412-60070-B1iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MOON MIST,TRIM1#

sub62412-60070

main62412-60070-E1iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.OAK,TRIM4#

sub62412-60070

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-60690-B0iKZJ95,VZJ95199604-199704

MD.MOON MIST,TRIM1#

main62510-60690-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S..TX199704-200209

main62510-60690-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..TX199906-200209

main62510-60700-B0iKDJ90,KZJ90,RZJ90,VZJ90199604-200211

MD.MOON MIST,TRIM1#

main62510-60700-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

main62510-60710-B0iKZJ95,VZJ95..TZ199604-199704

main62510-60710-B0iKDJ95,KZJ95,VZJ95..TZ199604-200211

main62510-60710-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main62510-60720-B0iKZJ95,VZJ95..TZ199604-199801

main62510-60730-B0iKZJ95,RZJ95,VZJ95..TX,TZ199604-200209

main62510-60730-E0iKDJ95,KZJ95,RZJ95..05S199906-200209

main62510-60750-B0iKZJ90,RZJ90,VZJ90..RS,RX,RZ199604-200211

main62510-60750-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

main62510-60810-B0iKZJ90..RJ199604-199704

main62510-60820-B0iKZJ95,RZJ95,VZJ95..08S..(TS,TX,TZ)199604-199801

main62510-60830-B0iKZJ95,VZJ95..TZ199604-199801

main62510-60870-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199704-200211

MD.MOON MIST,TRIM1#

main62510-60870-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

OAK,TRIM4#

main62510-60880-B0iKZJ95,VZJ95..TZ199704-200211

main62510-60880-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TX,TZ)199906-200211

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06133-C0iKZJ90..RS199801-199906

BLACK,TRIM1#&K14 ,K72 ,K73 ,K77 ,K80 ,K81

sub90467-06133

main90467-06133-C0iKZJ90,RZJ90,VZJ90..RX,RZ199604-199801

BLACK,TRIM1#&K01 ,K07 ,K10 ,K11 ,K13

sub90467-06133

main90467-06133-C0iKZJ90,RZJ90,VZJ90..RX,RZ199604-199801

BLACK,TRIM1#&056 ,1A0 ,3L5 ,6P4 ,8L7

sub90467-06133

main90467-06133-C0iKZJ90,RZJ90,VZJ90..RX,RZ199604-199801

BLACK,TRIM1#&056 ,1A0 ,3L5 ,6P3 ,6P4 ,8L7

sub90467-06133

main90467-06133-C0iKZJ90,RZJ90,VZJ90..RX,RZ199801-199906

BLACK,TRIM1#&056 ,1C0 ,3L5 ,6P4 ,6Q7 ,8L7

sub90467-06133

main90467-06133-C0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

BLACK,TRIM1#,4#

sub90467-06133

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-60270-B0iKZJ95,RZJ95,VZJ95..08S..(TX,TZ)199604-199906

MD.MOON MIST,TRIM1#

main62520-60270-B0iKDJ95..TZ;KZJ95,RZJ95,VZJ95..08S..(TX,TZ)199906-200211

main62520-60270-E0iKDJ95..TZ;KZJ95,RZJ95,VZJ95..08S..(TX,TZ)199906-200211

main62520-60330-B0iKDJ95,KZJ95,RZJ95..05S199604-200209

main62520-60330-E0iKDJ95,KZJ95,RZJ95..05S199906-200209

main62520-60390-B0iKZJ95,VZJ95..08S199604-199704

main62520-60391-B0iKZJ95,RZJ95,VZJ95..08S199704-199801

main62520-60392-B0iKZJ95,RZJ95,VZJ95..08S199801-200008

sub62520-60393

main62520-60392-E0iKZJ95,RZJ95,VZJ95..08S199906-200008

sub62520-60393

main62520-60393-B0iKDJ95,RZJ95,VZJ95..08S200008-200211

main62520-60393-E0iKDJ95,RZJ95,VZJ95..08S200008-200211

main62520-60400-B0iKZJ95,VZJ95..08S..(TS,TX,TZ)199604-199704

main62520-60401-B0iKZJ95,RZJ95,VZJ95..08S..(TS,TX,TZ)199704-199801

main62520-60440-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

main62520-60441-B0iKZJ90,RZJ90,VZJ90199906-200008

MD.MOON MIST,TRIM1#

sub62520-60442

main62520-60441-E0iKZJ90,RZJ90,VZJ90199906-200008

OAK,TRIM4#

sub62520-60442

main62520-60442-B0iKDJ90,RZJ90,VZJ90200008-200211

MD.MOON MIST,TRIM1#

main62520-60442-E0iKDJ90,RZJ90,VZJ90200008-200211

OAK,TRIM4#

main62520-60450-B0iKZJ90..RJ199604-199704

main62520-60470-B0iKZJ90,RZJ90,VZJ90..RS,RX,RZ199604-199906

main62520-60471-B0iKZJ90,RZJ90,VZJ90199906-200008

sub62520-60472

main62520-60471-E0iKZJ90,RZJ90,VZJ90199906-200008

sub62520-60472

main62520-60472-B0iKDJ90,RZJ90,VZJ90200008-200211

main62520-60472-E0iKDJ90,RZJ90,VZJ90200008-200211

62538CCOVER, QUARTER TRIM, HOLE

main62538-60030-B0iKDJ90,KZJ90,RZJ90,VZJ90199604-200211

MD.MOON MIST,TRIM1#

sub62538-60030

main62538-60030-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

sub62538-60030

main62538-60040-B0iKZJ95,RZJ95,VZJ95199604-199801

main62539-60040-B0iKZJ95,RZJ95,VZJ95199604-199801

62638AGARNISH, QUARTER PILLAR, RH

main62638-60060-B0iKZJ90,RZJ90,VZJ90199604-200211

MOON MIST,TRIM1#

main62638-60060-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.OAK,TRIM4#

main62638-60090-B0iKZJ95,RZJ95,VZJ95199604-200211

MOON MIST,TRIM1#

sub62638-60090

main62638-60090-E0iKDJ95,KZJ95,RZJ95,VZJ95..TS,TX199906-200211

MD.OAK,TRIM4#

sub62638-60090

main62638-60100-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TX,TZ)199604-200211

sub62638-60100

main62638-60100-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TX,TZ)199906-200211

sub62638-60100

62639AGARNISH, QUARTER PILLAR, LH

main62639-60050-B0iKZJ90,RZJ90,VZJ90199604-200211

MOON MIST,TRIM1#

sub62639-60050

main62639-60050-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.OAK,TRIM4#

sub62639-60050

main62639-60070-B0iKZJ95,RZJ95,VZJ95199604-200211

MOON MIST,TRIM1#

sub62639-60070

main62639-60070-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.OAK,TRIM4#

sub62639-60070

63429CBAND, ROOM RACK

main63429-60010iKZJ9#..RJ,TJ199604-199801

main63429-60010-B0iKDJ95..05S199604-200211

sub63429-60010

main63429-60010-E0iKDJ95..08S;KDJ90,KZJ9#,RZJ9#,VZJ9#199906-200211

sub63429-60010

main63429-60020iKZJ9#..RJ,TJ199604-199801

main63429-60020-B0iKDJ95..05S199604-200211

sub63429-60020

main63429-60020-E0iKDJ95..08S;KDJ90,KZJ9#,RZJ9#,VZJ9#199906-200211

sub63429-60020

64707DCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-60040-B0iKZJ95,RZJ95,VZJ95199604-200211

MD.MOON MIST,TRIM1#

main64707-60040-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

OAK,TRIM4#

main64707-60050-B0iKZJ90,RZJ90,VZJ90199604-200211

MD.MOON MIST,TRIM1#

main64707-60050-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

64981STOPPER, WASHER TANK COVER

main64981-16021iKZJ9#,RZJ9#,VZJ9#199604-200211

64982KNOB, COVER

main64982-16020-B2iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MD.MOON MIST,TRIM1#

sub64982-16020

main64982-16020-E4iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub64982-16020

7151

7152

7455

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777135010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-35010

9046805123

main90468-05123

9046805125

main90468-05125

9356614512

main93566-14512

27 parts on this diagram · 2 diagrams in section
