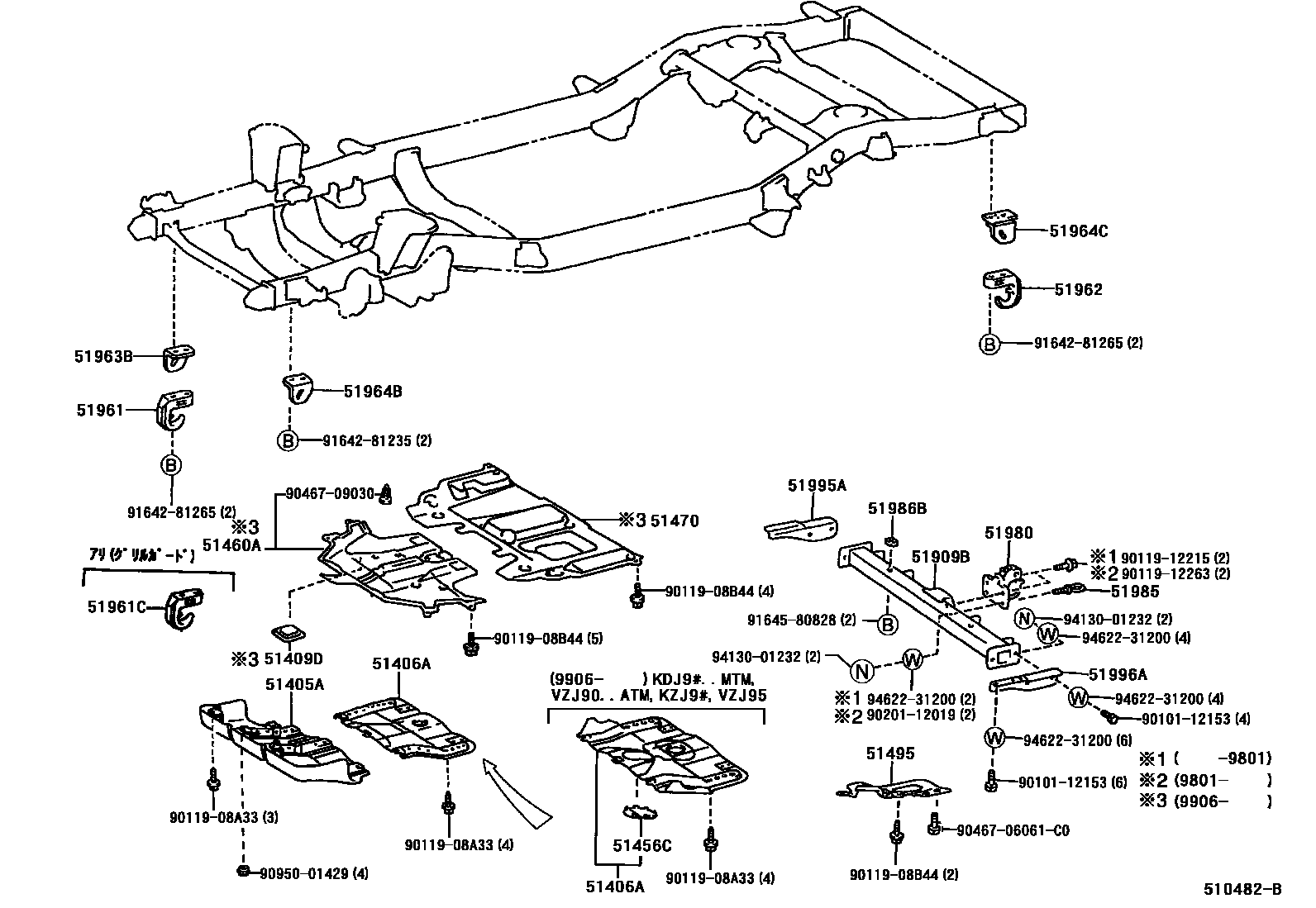

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35070iKZJ9#,RZJ9#,VZJ9#199604-199807

sub51405-35071

main51405-35071iKDJ9#..ATM199807-200211

main51440-60062iKZJ9#..MTM;VZJ9#..ATM199906-200008

sub51440-60063

main51440-60063iVZJ9#..ATM200008-200211

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-35010iKZJ9#,RZJ9#,VZJ9#199604-200211

main51450-60042iKDJ9#..MTM199906-200211

51409DSEAL SUB-ASSY, TRANSMISSION UNDER

main51409-35010iKDJ9#;KZJ9#..ATM199906-200211

51456CSEAL, ENGINE UNDER COVER, NO.2

main51456-60051iKDJ9#..MTM;VZJ90..ATM;KZJ9#,VZJ95199906-200211

51460ACOVER ASSY, TRANSMISSION UNDER, RH

main51460-60011iKDJ9#;KZJ9#..ATM199906-200211

51470COVER ASSY, TRANSMISSION UNDER

main51470-60011iKZJ9#..ATM199906-200008

main51496-60171iKDJ9#200008-200211

51495COVER, TRANSMISSION UNDER

main51495-60320iKZJ9#,RZJ9#,VZJ9#..ATM199704-200209

51909BTUBE SUB-ASSY, PINTLE HOOK SUPPORT

main51909-60020iKZJ9#,RZJ9#,VZJ9#199706-200211

51961HOOK, NO.1

main51961-35050iKZJ9#,RZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iKZJ9#,RZJ9#,VZJ9#199709-200211

51961CHOOK, FRONT

main51961-35050iKZJ9#,RZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iKZJ9#,RZJ9#,VZJ9#199709-199801

51962HOOK, NO.2

main51961-35050iKZJ9#,RZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iKDJ9#,KZJ9#,RZJ9#,VZJ9#199709-200211

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iKZJ9#,RZJ9#,VZJ9#199604-200211

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iKZJ9#,RZJ9#,VZJ9#199604-200211

51964CHOOK, TRANSPORT, REAR LH

main51963-35070iKZJ9#,RZJ9#,VZJ9#199604-200211

51980HOOK ASSY, PINTLE

main51980-60011iKZJ9#,RZJ9#,VZJ9#199706-199801

sub51980-60012

sub90119-12263

sub90201-12019

main51980-60012iKDJ9#,KZJ9#,RZJ9#,VZJ9#199801-200211

51985HOOK, EYELET PINTLE

main51985-60011iKDJ9#,KZJ9#,RZJ9#,VZJ9#199706-200211

51986BRETAINER, PINTLE HOOK

main51986-60010iKZJ9#,RZJ9#,VZJ9#199706-200211

51995ABRACKET, PINTLE HOOK SUPPORT, RH

main51995-60010iKDJ90,KZJ90,RZJ90,VZJ90199706-200211

main51995-60020iKZJ95,RZJ95,VZJ95199706-200211

51996ABRACKET, PINTLE HOOK SUPPORT, LH

main51996-60010iKZJ90,RZJ90,VZJ90199706-200211

main51996-60020iKZJ95,RZJ95,VZJ95199706-200211

9010112153

main90101-12153

9011908A33

main90119-08A33

9011908B44

main90119-08B44

9011912215

main90119-12215

9011912263

main90119-12263

9020112019

main90201-12019

9046706061C0

main90467-06061C0

9046709030

main90467-09030

9095001429

main90950-01429

9164281235

main91642-81235

9164281265

main91642-81265

9164580828

main91645-80828

9413001232

main94130-01232

9462231200

main94622-31200

33 parts on this diagram · 1 diagram in section
