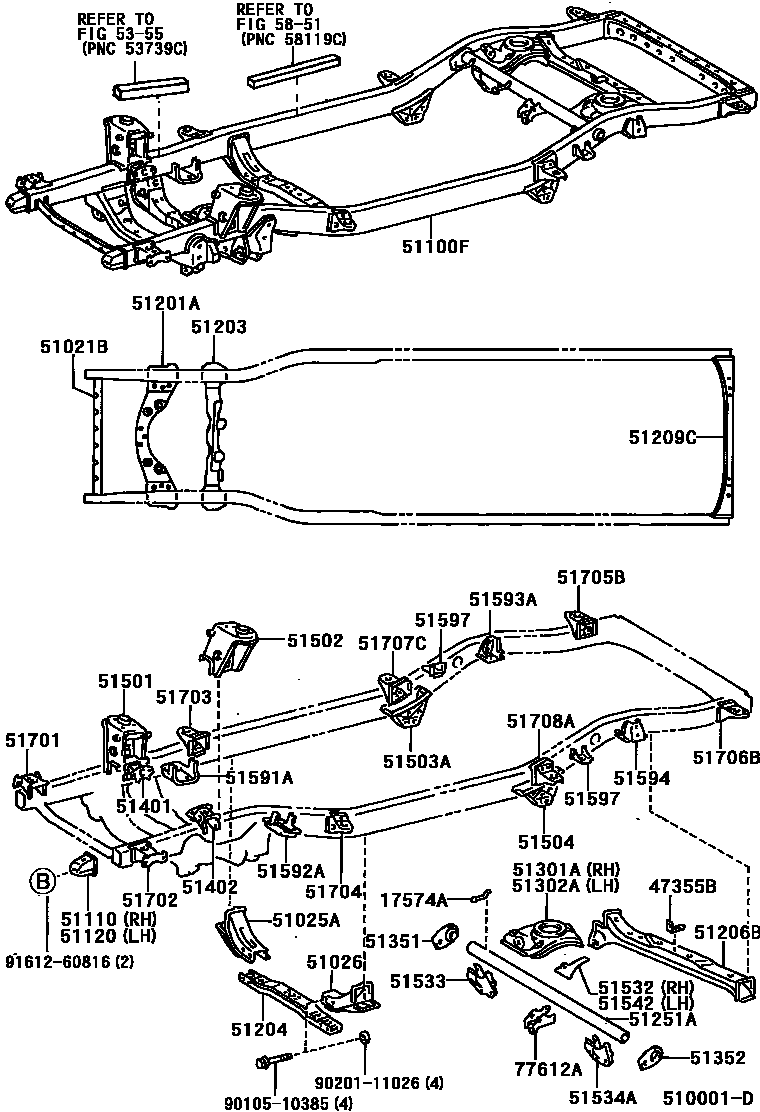

FRAME
17574ABRACKET, EXHAUST PIPE SUPPORT, NO.4
47355BBRACKET, FLEXIBLE HOSE, NO.5
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51100FFRAME SUB-ASSY
sub51002-6A061
sub51002-6A071
sub51002-6A081
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51251ACROSSMEMBER, FRAME, NO.5
51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH
51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH
51351GUSSET, CROSSMEMBER, NO.5 RH
51352GUSSET, CROSSMEMBER, NO.5 LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51532REINFORCEMENT, REAR SPRING SUPPORT BRACKET, RH
51533BRACKET, UPPER CONTROL LINK, RH
51534ABRACKET, UPPER CONTROL LINK, LH
51542REINFORCEMENT, REAR SPRING SUPPORT BRACKET, LH
51591ASUPPORT, STABILIZER, RH
51592ASUPPORT, STABILIZER, LH
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51597BRACKET, REAR STABILIZER SUPPORT, FRONT
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
5355
5851
77612ABRACKET, FUEL TANK BAND
9010510385
main90105-10385
9020111026
main90201-11026
9161260816
main91612-60816
47 parts on this diagram · 2 diagrams in section
