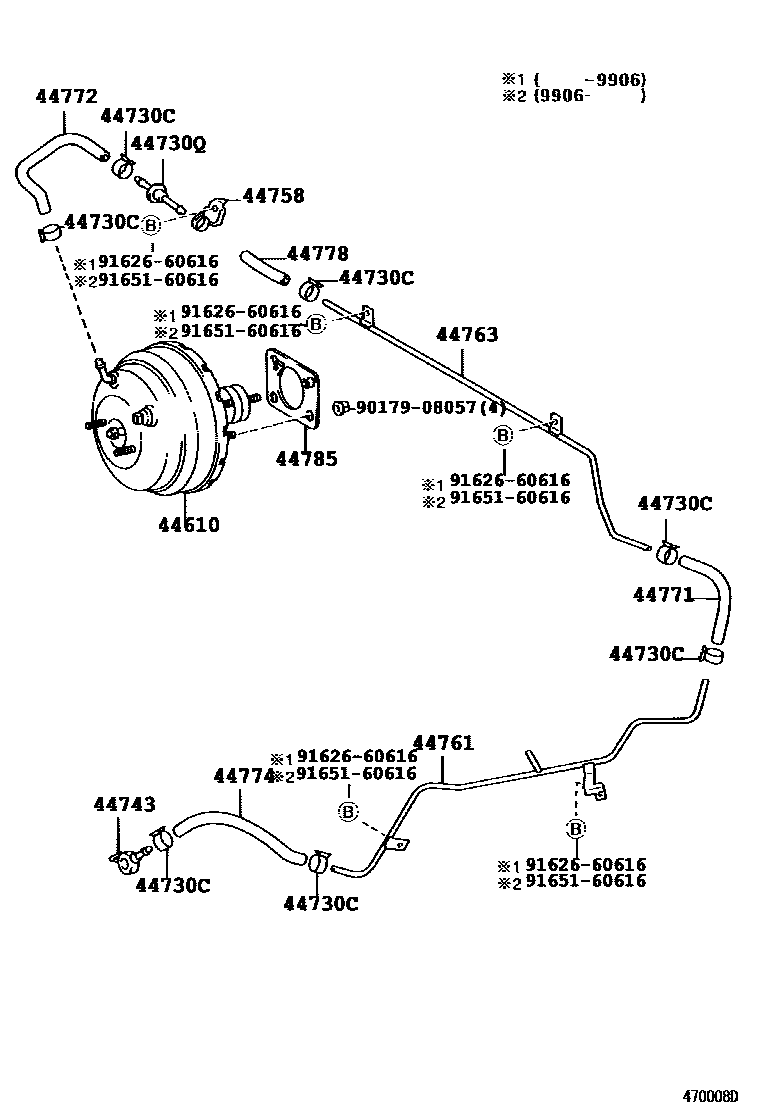

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1��(ACTIVE TRC OR VSC)

44610BOOSTER ASSY, BRAKE

main44610-60880iRZJ9#,VZJ9#199604-199906

main44610-60890iKZJ9#199604-199906

main44610-6A080iRZJ9#,VZJ9#199906-200209

main44610-6A100iKDJ9#,KZJ9#199906-200211

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iKZJ9#199604-199906

sub96134-51500

main96133-41500iRZJ9#,VZJ9#199906-200211

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-10010iKZJ9#,RZJ9#,VZJ9#199604-200211

44743UNION(FOR VACUUM PUMP)

main90404-51237iVZJ9#199604-200209

main90404-51319iRZJ9#199704-200209

main90405-09175iKDJ9#,KZJ9#199604-200211

44758BRACKET, VACUUM CHECK VALVE

main44758-35070iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-60020iKZJ9#199604-200211

44763TUBE, BOOSTER VACUUM

main44763-35030iRZJ9#,VZJ9#199604-200209

main44763-35050iKDJ9#,KZJ9#199604-200211

44771HOSE, VACUUM TUBE CONNECTOR

main44771-35190iKZJ9#199604-200211

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-35320iKZJ9#,RZJ9#,VZJ9#199604-200211

44774HOSE, UNION TO CONNECTOR TUBE

main44774-35050iVZJ9#199604-200209

main44774-35060iRZJ9#199704-200209

main44774-60230iKDJ9#200008-200211

main95447-09220iKZJ9#199604-200008

sub95447-09300

44778HOSE, CONNECTOR TO CHECK VALVE

main95446-09100iKZJ9#,RZJ9#,VZJ9#199604-200211

44785GASKET, BRAKE BOOSTER

main44785-35030iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

9017908057

main90179-08057

9162660616

main91626-60616

9165160616

main91651-60616

15 parts on this diagram · 3 diagrams in section
