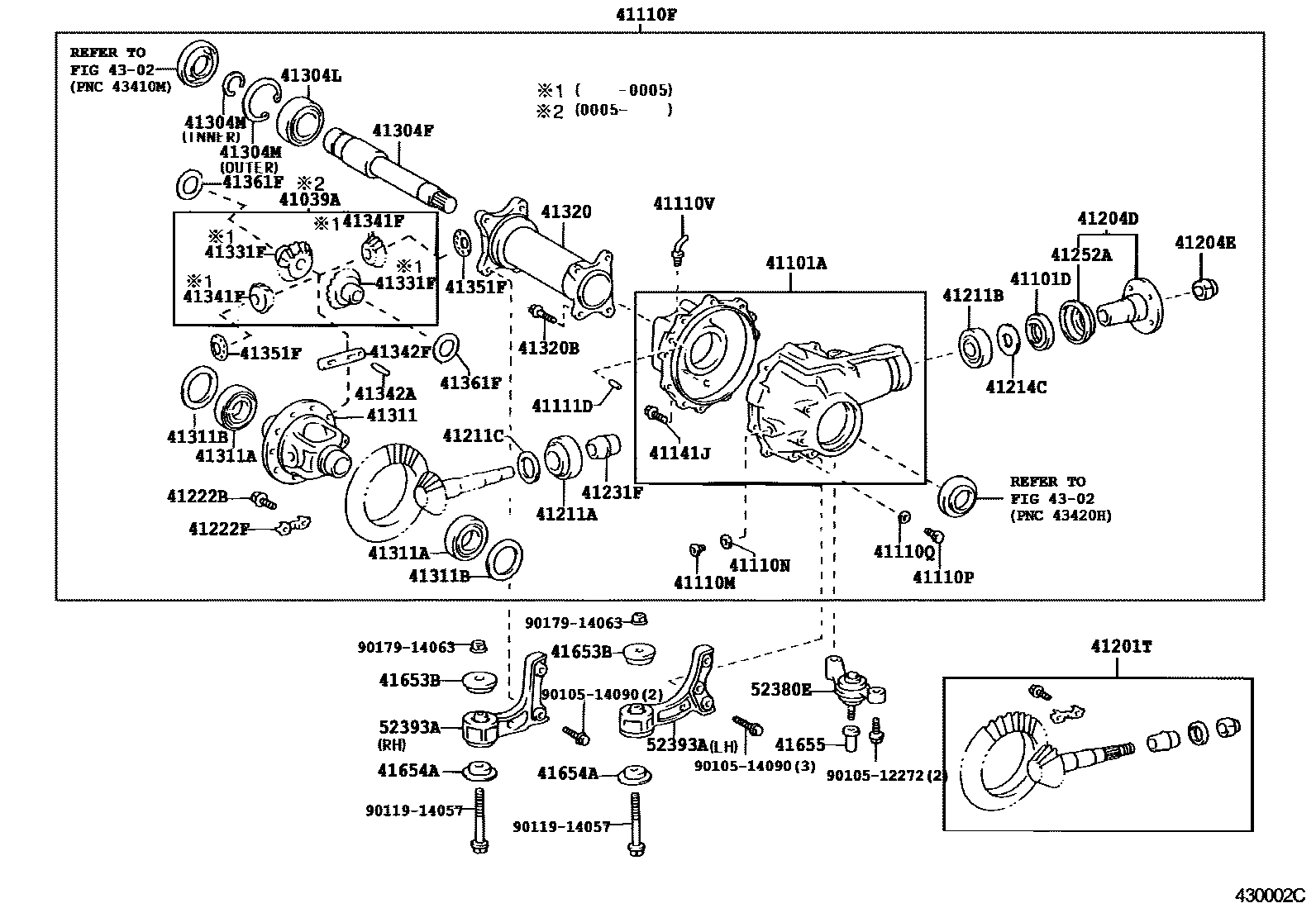

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0004 1

41039AGEAR KIT, DIFFERENTIAL

main41039-34050iKZJ9#200005-200008

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35131iVZJ90..MTM200112-200211

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38049iVZJ90..MTM200112-200211

sub90311-38066

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-35820iRZJ9#199906-200209

main41110-3D100iKZJ9#..RS,TS199906-200008

main41110-3D150iVZJ9#..ATM199906-200209

main41110-3D180iKDJ9#..ATM..(RX,RZ,TX,TZ)199906-200211

main41110-60620iKZJ9#..RJ,RS,TJ,TS199604-199906

main41110-60640iKDJ9#..MTM199906-200211

main41110-60650iVZJ90..MTM199906-200209

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iVZJ90..MTM200112-200211

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iKZJ9#,RZJ9#,VZJ9#199604-199906

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iKZJ9#,RZJ9#,VZJ9#199604-199906

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iKZJ9#,RZJ9#,VZJ9#199604-199906

sub90430-24017

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iKZJ9#,RZJ9#,VZJ9#199604-199906

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017×2iKZJ9#,RZJ9#,VZJ9#199604-199906

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-10391×10iKZJ9#199906-200008

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80067iKDJ9#,KZJ9#..MTM199906-200211

sub41201-80502

main41201-80078iKDJ9#,KZJ9#..RS,TS199906-200211

main41201-80079iRZJ9#199704-199906

sub41201-80499

main41201-80085iKDJ9#,KZJ9#..ATM..(RX,RZ,TX,TZ)199906-200211

main41201-80098iVZJ9#..ATM199906-200108

main41201-80116iKZJ9#..RJ,RS,TJ,TS199604-199906

sub41201-80501

main41201-80117iVZJ90..MTM199906-200209

sub41201-80498

main41201-80500iVZJ9#..ATM200108-200209

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35060iVZJ90..MTM199906-200108

main41204-35070iKDJ9#199906-200211

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-18020iVZJ90..MTM199906-200108

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35023iKZJ9#,RZJ9#,VZJ9#199604-199906

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30022iKDJ9#,RZJ9#,VZJ9#199906-200206

main90366-30078iRZJ9#,VZJ9#200206-200209

41211CGEAR, DIFFERENTIAL RING

main90201-35497iVZJ90..MTM199906-200108

main90201-35498iKDJ9#199906-200211

main90201-35499iVZJ90..MTM199906-200108

main90201-35500iVZJ90..MTM200112-200211

main90201-35501iKDJ9#199906-200211

main90201-35502iKZJ9#199906-200008

main90201-35503iVZJ90..MTM199906-200108

main90201-35504iVZJ90..MTM200112-200211

main90201-35505iKZJ9#,RZJ9#,VZJ9#199604-199906

main90201-35506iKZJ9#,RZJ9#,VZJ9#199604-199906

main90201-35507iKZJ9#,RZJ9#,VZJ9#199604-199906

main90201-35508iRZJ9#,VZJ9#..ATM199906-200209

main90201-35509iRZJ9#,VZJ9#..ATM199906-200209

main90201-35510iVZJ90..MTM199906-200108

main90201-35511iKZJ9#199906-200008

main90201-35512iRZJ9#,VZJ9#..ATM199906-200209

main90201-35513iVZJ90..MTM200112-200211

main90201-35514iRZJ9#,VZJ9#..ATM199906-200209

main90201-35515iVZJ90..MTM199906-200108

main90201-35516iRZJ9#,VZJ9#..ATM199906-200209

main90201-35517iVZJ90..MTM200112-200211

main90201-35518iKDJ9#199906-200211

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iVZJ90..MTM200112-200211

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×10iKZJ9#,RZJ9#,VZJ9#199604-199906

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030×5iKZJ9#,RZJ9#,VZJ9#199604-199906

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKZJ9#,RZJ9#,VZJ9#199604-199906

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-35030iKZJ9#,RZJ9#,VZJ9#199604-199906

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90903-63008iVZJ90..ATM;KDJ9#,KZJ9#,RZJ9#,VZJ95199906-200211

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-39023iKZJ9#,RZJ9#,VZJ9#199604-199906

main90520-75002iVZJ90..MTM200112-200211

main90521-86002iKZJ9#,RZJ9#,VZJ9#199604-199805

41311CASE, FRONT DIFFERENTIAL

main41311-22060iKZJ9#199906-200008

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-50006×2iKZJ9#,RZJ9#,VZJ9#199604-199906

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50092×2iVZJ90..MTM200112-200211

main90564-50093×2iVZJ90..MTM200112-200211

main90564-50094×2iRZJ9#,VZJ9#..ATM199906-200209

main90564-50095×2iKZJ9#199906-200008

main90564-50096×2iKDJ9#199906-200211

main90564-50097×2iVZJ90..MTM200112-200211

main90564-50098×2iKDJ9#199906-200211

main90564-50099×2iKZJ9#199906-200008

main90564-50100×2iVZJ90..MTM200112-200211

main90564-50101×2iKDJ9#199906-200211

main90564-50102×2iVZJ90..MTM199906-200108

main90564-50103×2iKDJ9#199906-200211

main90564-50104×2iVZJ90..MTM199906-200108

main90564-50105×2iKZJ9#,RZJ9#,VZJ9#199604-199906

main90564-50106×2iVZJ90..MTM199906-200108

main90564-50107×2iKZJ9#,RZJ9#,VZJ9#199604-199906

main90564-50108×2iKZJ9#,RZJ9#,VZJ9#199604-199906

main90564-50109×2iKZJ9#199906-200008

main90564-50110×2iKZJ9#,RZJ9#,VZJ9#199604-199906

main90564-50111×2iVZJ90..MTM199906-200108

main90564-50112×2iKZJ9#199906-200008

main90564-50113×2iKDJ9#199906-200211

main90564-50114×2iVZJ90..MTM199906-200108

main90564-50115×2iVZJ90..MTM199906-200108

main90564-50116×2iKZJ9#,RZJ9#,VZJ9#199604-199906

main90564-50117×2iVZJ90..MTM199906-200108

main90564-50118×2iRZJ9#,VZJ9#..ATM199906-200209

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-35030iVZJ90..MTM199906-200108

41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)

main90105-12292×4iKZJ9#,RZJ9#,VZJ9#199604-199906

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-35070×2iKZJ9#,RZJ9#,VZJ9#199604-199906

sub41331-35071

41341FPINION, FRONT DIFFERENTIAL

main41341-30020×2iKZJ9#,RZJ9#,VZJ9#199604-199906

sub41341-30050

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iKZJ9#199906-200008

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iKZJ9#,RZJ9#,VZJ9#199604-199906

main41342-22021iKDJ9#200005-200211

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060×2iKZJ9#,RZJ9#,VZJ9#199604-199906

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040×2iKZJ9#,RZJ9#,VZJ9#199604-199906

main41361-30050×2iKDJ9#199906-200211

main41361-30060×2iKZJ9#199906-200008

main41361-30070×2iVZJ90..MTM199906-200108

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-35030×2iKZJ9#,RZJ9#,VZJ9#199604-199906

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-26010×2iKZJ9#,RZJ9#,VZJ9#199604-199906

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

4302

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-35040iKZJ9#,RZJ9#,VZJ9#199604-199906

main52380-35050iRZJ9#,VZJ9#199906-200209

9010512272

main90105-12272

9010514090

main90105-14090

9011914057

main90119-14057

9017914063

main90179-14063

46 parts on this diagram · 3 diagrams in section
