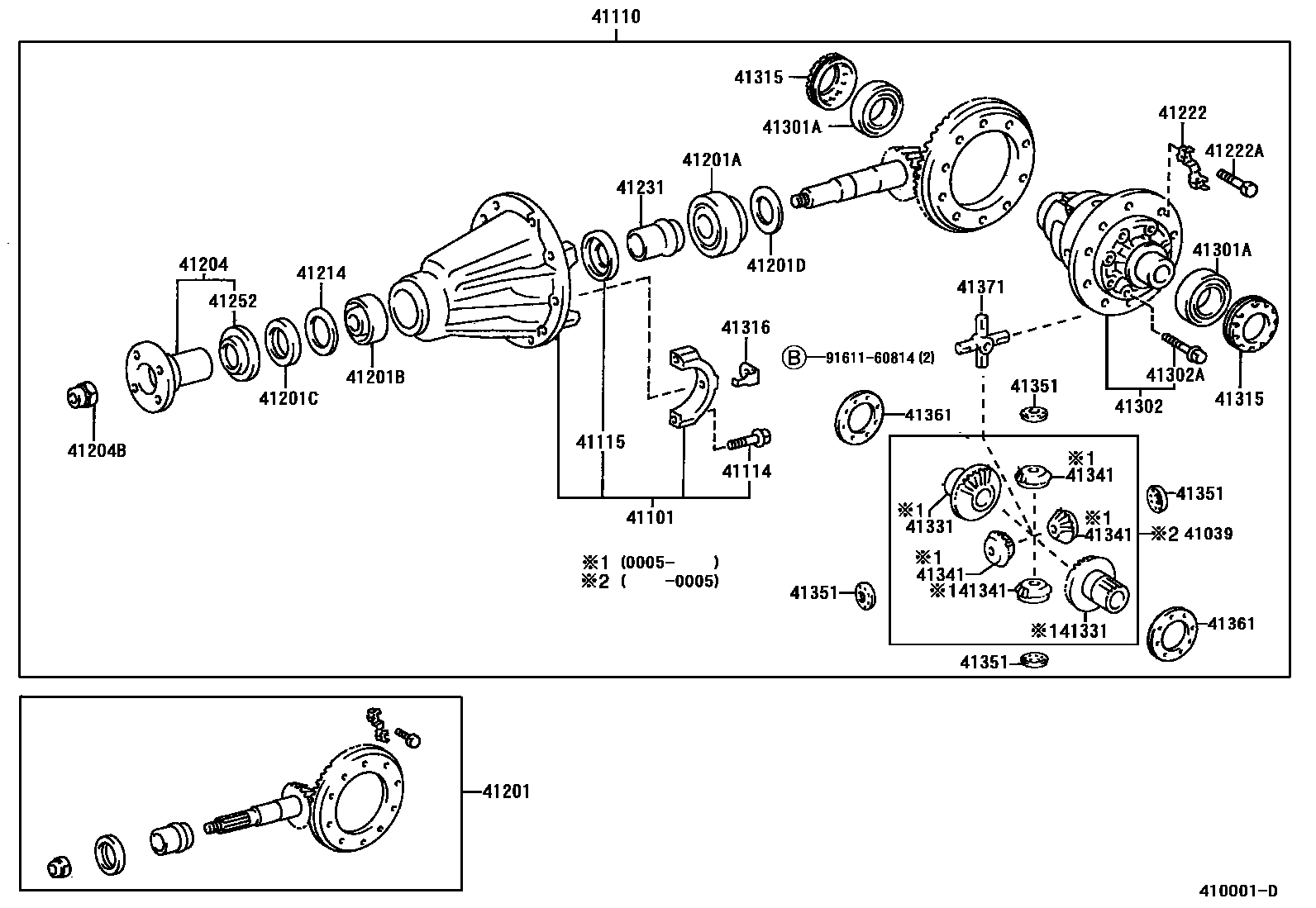

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1LIMITED SLIP DIFFERENTIAL 0003 1REAR DIFFERENTIAL LOCK 0004 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-34060iKDJ9#,KZJ9#,RZJ9#,VZJ9#200005-200211

main41039-34070iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ200005-200211

main41039-34080iKDJ9#,KZJ9#..MTM..(RX,TX);KDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM200005-200211

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35150iKZJ9#,RZJ9#,VZJ9#199604-200211

sub41101-35151

main41101-35170iKZJ9#,RZJ9#,VZJ9#199604-200211

sub41101-35171

sub41115-35010

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-35880iKZJ9#..RJ,RS,TJ,TS199604-200211

sub41110-25520

main41110-35890iKDJ9#,KZJ9#..MTM..(RX,TX);KDJ9#,KZJ9#..ATM..(RX,RZ,TX,TZ)199906-200211

sub41110-35891

main41110-35890iKZJ9#..RX,RZ,TX,TZ199604-199906

sub41110-35891

main41110-3D010iRZJ9#199704-200209

sub41110-3D011

main41110-3D020iVZJ9#..ATM199604-200209

sub41110-3D021

main41110-3D030iKZJ9#..RX,RZ,TX,TZ199906-200211

sub41110-3D031

main41110-3D030iKZJ9#..RX,RZ,TX,TZ199604-199906

sub41110-3D031

main41110-3D040iVZJ95..TX199801-200209

sub41110-3D041

main41110-3D040iVZJ9#..RZ,TZ199604-200209

sub41110-3D041

main41110-3D060iKZJ9#..RX,RZ,TX,TZ199604-200008

sub41110-3D061

main41110-3D060iKDJ9#..RX,RZ,TX,TZ200008-200211

sub41110-3D061

main41110-3D070iKDJ9#,KZJ9#..RS,TS199604-200211

sub41110-3D071

main41110-3D080iVZJ95..TX199801-200209

sub41110-3D081

main41110-3D080iVZJ9#..RZ,TZ199604-200209

sub41110-3D081

main41110-3D090iRZJ9#199704-200209

sub41110-3D091

main41110-3D210iRZJ9#199704-200209

sub41110-3D211

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iKZJ9#,RZJ9#,VZJ9#199604-200211

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iKZJ9#,RZJ9#,VZJ9#199604-200211

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-69455iRZJ9#199704-200201

sub41201-69456

sub41204-35081

sub41214-26011

main41201-69456iRZJ9#200201-200209

sub41201-69457

main41201-69465iVZJ9#199604-200201

sub41201-69466

sub41204-35081

sub41214-26011

main41201-69466iVZJ9#200201-200209

sub41201-80749

main41201-80100iKDJ9#,KZJ9#..RS,TS199604-200201

sub41201-80177

sub41204-35081

sub41214-26011

main41201-80101iKZJ9#..RJ,RS,TJ,TS199604-200201

sub41201-80178

sub41204-35081

sub41214-26011

main41201-80102iKZJ9#..RX,RZ,TX,TZ199604-200201

sub41201-80179

sub41204-35081

sub41214-26011

main41201-80103iKDJ9#,KZJ9#..RX,RZ,TX,TZ199604-200201

sub41201-80180

sub41204-35081

sub41214-26011

main41201-80104iVZJ9#199604-200201

sub41201-80181

sub41204-35081

sub41214-26011

main41201-80105iRZJ9#199704-200201

sub41201-80182

sub41204-35081

sub41214-26011

main41201-80177iKDJ9#..RS,TS200201-200211

sub41201-80723

main41201-80178iKDJ9#..RS,TS200201-200211

sub41201-80736

main41201-80179iKDJ9#..RX,RZ,TX,TZ200201-200211

sub41201-80724

main41201-80180iKDJ9#..RX,RZ,TX,TZ200201-200211

sub41201-80739

main41201-80181iVZJ9#200201-200209

sub41201-80747

main41201-80182iRZJ9#200201-200209

sub41201-80732

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iKZJ9#,RZJ9#,VZJ9#199604-200211

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30025iKZJ9#,RZJ9#,VZJ9#199604-199801

sub90366-30067

main90366-30067iKZJ9#,RZJ9#,VZJ9#199604-200211

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iKZJ9#,RZJ9#,VZJ9#199604-200201

main90311-41009iKDJ9#,RZJ9#,VZJ9#200201-200211

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35498iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35499iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35500iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35501iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35502iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35503iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35504iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35505iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35506iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35507iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35508iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35509iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35510iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35511iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35512iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35513iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35514iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35515iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35516iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35517iKZJ9#,RZJ9#,VZJ9#199604-200211

main90201-35518iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35080iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200201

main41204-35081iKDJ9#,RZJ9#,VZJ9#200201-200211

sub41204-35082

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iKDJ9#,RZJ9#,VZJ9#200201-200211

main90179-20018iKZJ9#,RZJ9#,VZJ9#199604-200201

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iKZJ9#,RZJ9#,VZJ9#199604-200201

main41214-26011iKDJ9#,RZJ9#,VZJ9#200201-200211

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iKZJ9#,RZJ9#,VZJ9#199604-200211

main41222-60010iKZJ9#,RZJ9#,VZJ9#199604-200211

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKZJ9#,RZJ9#,VZJ9#199604-200211

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35040iKZJ9#,RZJ9#,VZJ9#199604-200201

main41252-35041iKDJ9#,RZJ9#,VZJ9#200201-200211

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60060iKZJ9#,RZJ9#,VZJ9#199604-200211

sub41301-60061

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main90366-75001iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iKDJ9#,KZJ9#..MTM..(RX,TX);KDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199604-200211

sub41302-26010

main41302-35040iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199604-200211

sub41302-35041

sub90105-11063

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-10084iKZJ9#,RZJ9#,VZJ9#199604-200211

sub90105-10570

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35020iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main41315-60010iKZJ9#,RZJ9#,VZJ9#199604-200211

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iKZJ9#,RZJ9#,VZJ9#199604-200211

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35030iKZJ9#,RZJ9#,VZJ9#199604-200005

sub41039-34070

main41331-35040iKZJ9#,RZJ9#,VZJ9#199604-200005

sub41039-34060

sub41039-34080

main41331-60040iKZJ9#,RZJ9#,VZJ9#199604-200005

sub41039-34060

41341PINION, REAR DIFFERENTIAL

main41341-30020iKZJ9#,RZJ9#,VZJ9#199604-200005

sub41341-30050

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30060iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35160iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199604-200211

sub41361-35161

main41361-35290iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199604-200211

sub41361-35291

main41361-35310iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-35310iKDJ9#,KZJ9#..MTM..(RX,TX);KDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199604-200211

main41361-35320iKDJ9#,KZJ9#..MTM..(RX,TX);KDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199604-200211

main41361-35320iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-35330iKZJ9#,RZJ9#,VZJ9#199604-200211

main41361-35330iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-35340iKZJ9#,RZJ9#,VZJ9#199604-200211

main41361-35340iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-35350iKZJ9#,RZJ9#,VZJ9#199604-200211

main41361-35350iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-60290iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main41361-60290iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-60300iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-60300iKZJ9#,RZJ9#,VZJ9#199604-200211

main41361-60310iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-60310iKZJ9#,RZJ9#,VZJ9#199604-200211

main41361-60320iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

main41361-60320iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-60330iKDJ9#,RZJ9#,VZJ9#200202-200211

main41361-60330iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

41371SPIDER, REAR DIFFERENTIAL

main41306-35040iKZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199604-200211

main41371-35020iKZJ9#,RZJ9#,VZJ9#199604-200211

9161160814

main91611-60814

29 parts on this diagram · 4 diagrams in section
