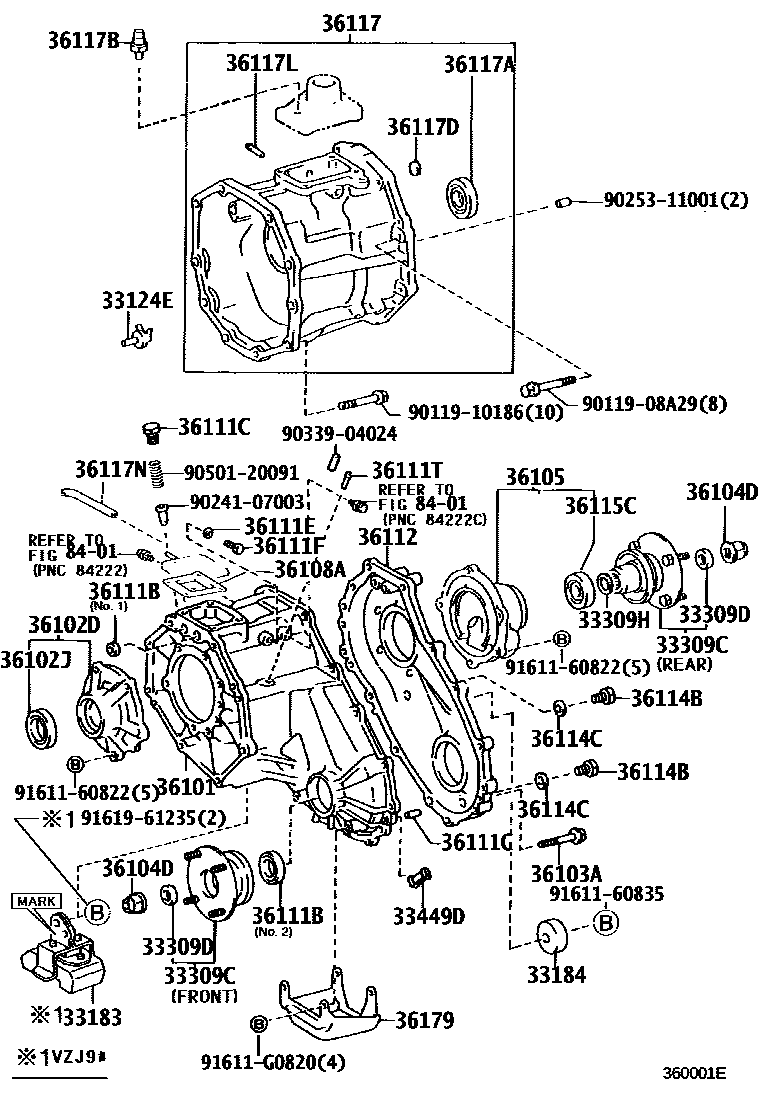

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1��(VSC) 0005 1��(ACTIVE TRC)

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-35100iKZJ9#,VZJ90..MTM199604-199906

33183DAMPER, TRANSFER DYNAMIC

main33183-34031iVZJ9#199604-199607

main33183-60020iVZJ9#199607-199705

main33183-60021iVZJ9#199705-199906

sub33183-35060

33184WEIGHT, DYNAMIC DAMPER

main33184-60010iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35091iKZJ9#,RZJ9#,VZJ9#199604-199906

main33309-35100iKZJ9#,RZJ9#,VZJ9#199604-199906

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iKZJ9#,RZJ9#,VZJ9#199604-199906

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010×2iVZJ90..ATM;KDJ9#,KZJ9#,RZJ9#,VZJ95199906-200211

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKZJ9#,RZJ9#,VZJ9#199604-199906

36101CASE SUB-ASSY, TRANSFER

main36111-35070iKZJ9#,RZJ9#,VZJ9#199604-199906

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iKZJ9#,RZJ9#..ATM199604-199906

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35031iKZJ9#,RZJ9#,VZJ9#199604-199906

main36102-35032iKDJ9#,RZJ9#,VZJ9#200106-200211

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iKZJ9#,RZJ9#,VZJ9#199604-199906

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iKZJ9#,RZJ9#,VZJ9#199604-199906

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iKZJ9#,RZJ9#,VZJ9#199604-199906

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iKZJ9#,RZJ9#,VZJ9#199604-199906

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iKZJ9#,RZJ9#..ATM199604-199803

main36108-35031iKZJ9#,RZJ9#..ATM199803-199906

main36108-35060iVZJ9#;KZJ9#..MTM199604-199906

main36128-35060iKDJ9#,RZJ9#..ATM200208-200211

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008×2iVZJ90..ATM;KDJ9#,KZJ9#,RZJ9#,VZJ95199906-200211

main90311-41008iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200207

sub90311-41011

main90311-41010iKDJ9#,RZJ9#,VZJ9#200207-200211

sub90311-41012

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iVZJ90..ATM;KDJ9#,KZJ9#,RZJ9#,VZJ95199906-200211

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iKZJ9#,VZJ9#..ATM..(RX,RZ,TX,TZ)199906-200209

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iKZJ9#,VZJ90..MTM199604-199906

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iKZJ9#,RZJ9#,VZJ9#199604-199906

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iKZJ9#,RZJ9#,VZJ9#199604-199906

36112CASE, TRANSFER, REAR

main36112-35040iKZJ9#,RZJ9#,VZJ9#199604-199906

main36112-35050iKZJ9#,VZJ9#..ATM..(RX,RZ,TX,TZ)199906-200209

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iVZJ90..ATM;KDJ9#,KZJ9#,RZJ9#,VZJ95199906-200211

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iKZJ9#,RZJ9#,VZJ9#199604-199906

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iKZJ9#,RZJ9#,VZJ9#199604-199906

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35160iKDJ9#,KZJ9#,VZJ90..MTM199906-200211

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-40007iKDJ9#,KZJ9#,VZJ90..MTM199906-200211

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03075iKZJ9#,VZJ90..MTM199604-199906

36117DPLUG(FOR TRANSFER ADAPTER)

main90331-21003iKZJ9#,VZJ90..MTM199604-199906

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

36117NHOSE(FOR TRANSFER ADAPTER)

main90447-08126iKZJ9#,VZJ90..MTM199604-199906

main90904-45005iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

8401

9011908A29

main90119-08A29

9011910186

main90119-10186

9024107003

main90241-07003

9025311001

main90253-11001

9033904024

main90339-04024

9050120091

main90501-20091

9161160822

main91611-60822

9161160835

main91611-60835

91611G0820

main91611-G0820

9161961235

main91619-61235

43 parts on this diagram · 5 diagrams in section
