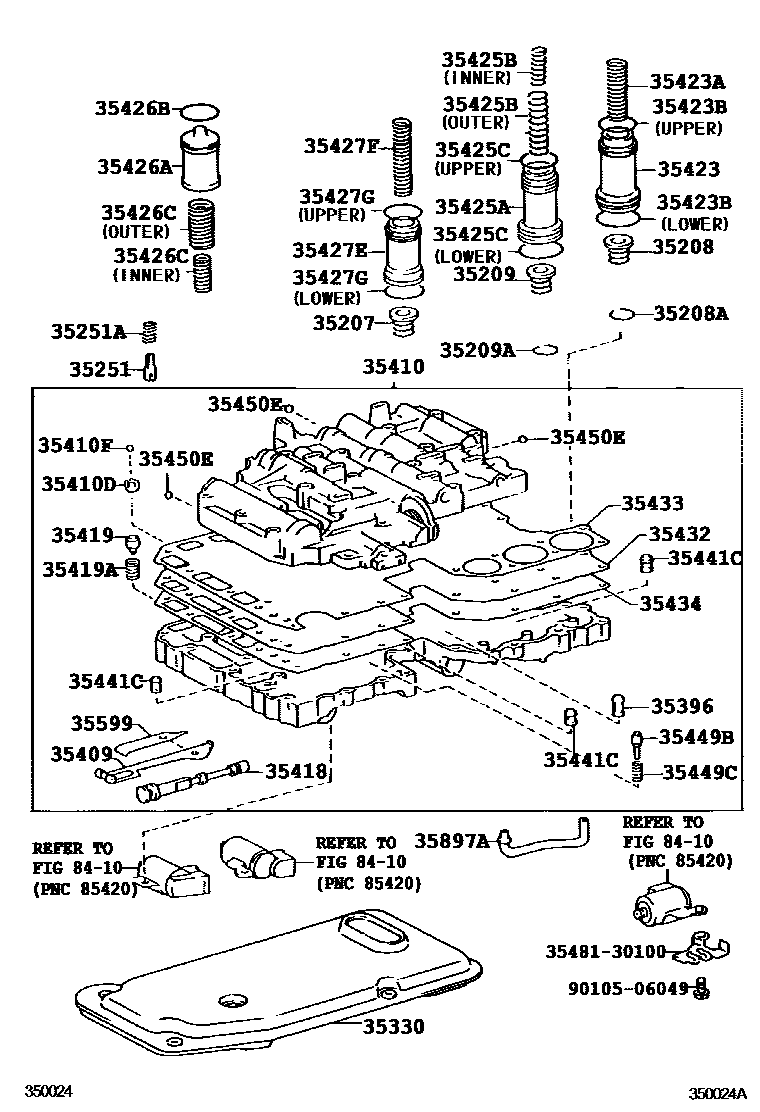

VALVE BODY & OIL STRAINER (ATM)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35330STRAINER ASSY, VALVE BODY OIL
35396STRAINER, THROTTLE OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35410DVALVE, CHECK
35410FBALL (FOR CHECK VALVE)
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35426APISTON, C-0 ACCUMULATOR
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35441CSTRAINER, SOLENOID OIL
35449BVALVE, PRESSURE RELIEF
35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
35450EBALL (FOR UPPER VALVE BODY)
35599COVER, MANUAL DETENT SPRING
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
8410
3548130100BODY, GOVERNOR
main35481-30100
9010506049
main90105-06049
40 parts on this diagram · 11 diagrams in section
