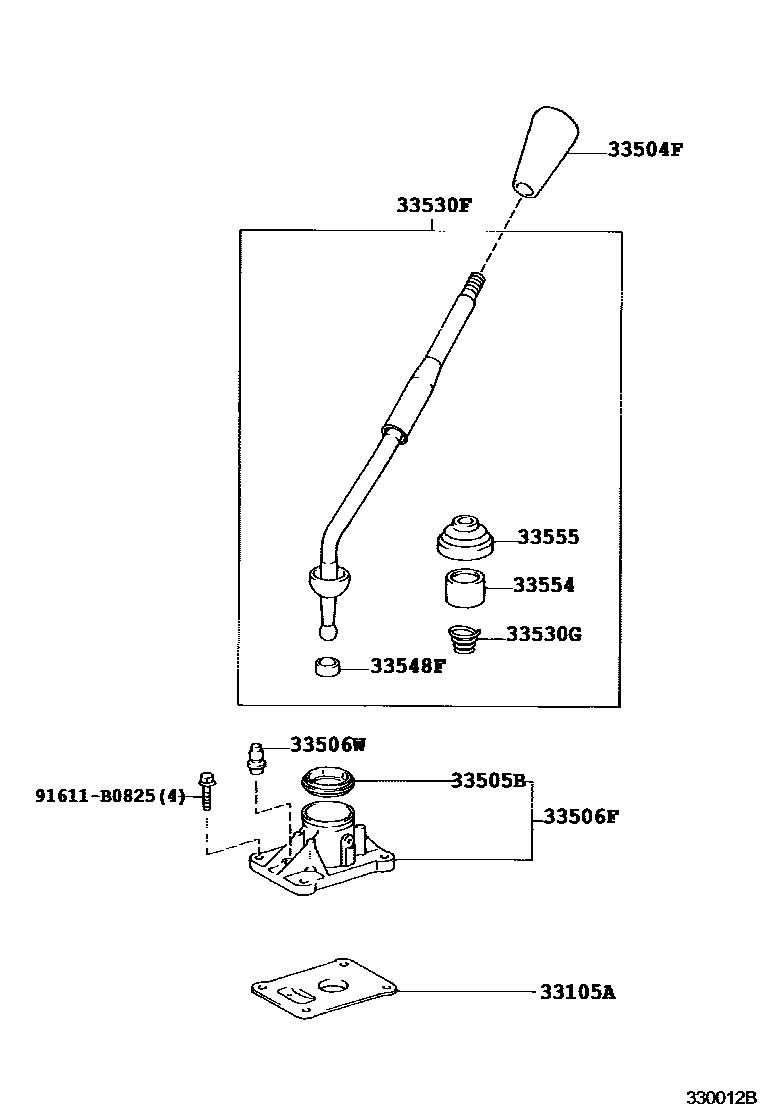

SHIFT LEVER & RETAINER

0001 1 0002 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35030iKZJ9#,VZJ90..MTM199604-200211

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20100-C0iKDJ9#,KZJ9#..MTM..(RX,TX)199906-200211

sub33504-24010

sub33504-20100

main33504-20100-C0iKZJ9#..MTM..(RJ,RX,TJ,TX)199604-199906

sub33504-24010

sub33504-20100

main33504-20120-C0iKDJ9#,KZJ9#,VZJ90..MTM199906-200211

sub33504-20120

main33504-20120-C0iKZJ9#,VZJ90..MTM..(RX,RZ,TX,TZ)199604-199906

sub33504-20120

main33542-33050-C0iKZJ9#,RZJ9#,VZJ95..ATM..(RS,RX,TS,TX)199604-199906

sub33542-33050

main33542-33050-C0iKDJ9#,KZJ9#,RZJ9#,VZJ95..ATM..(RS,RX,TS,TX)199906-200211

sub33542-33050

main33542-33060-C0iKZJ9#,RZJ9#,VZJ9#..ATM..(RX,RZ,TX,TZ)199604-199906

sub33542-33060

main33542-33060-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM..(RX,RZ,TX,TZ)199906-200211

sub33542-33060

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35030iKZJ9#,VZJ90..MTM199604-200211

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60060iKZJ9#,VZJ90..MTM199604-200211

sub33506-60061

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iKZJ9#,VZJ90..MTM199604-200211

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60320iVZJ90..MTM199604-200209

main33530-60340iKDJ9#,KZJ9#..MTM199604-200211

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26007iKZJ9#,VZJ90..MTM199604-200211

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iKZJ9#,VZJ90..MTM199604-200211

33554CAP, SHIFT LEVER

main33554-30012iKZJ9#,VZJ90..MTM199604-200211

33555BOOT, SHIFT LEVER

main33555-60030iKZJ9#,VZJ90..MTM199604-200211

main33555-60080iKZJ9#,RZJ9#,VZJ9#..ATM199604-200211

91611B0825

main91611-B0825

11 parts on this diagram · 2 diagrams in section
