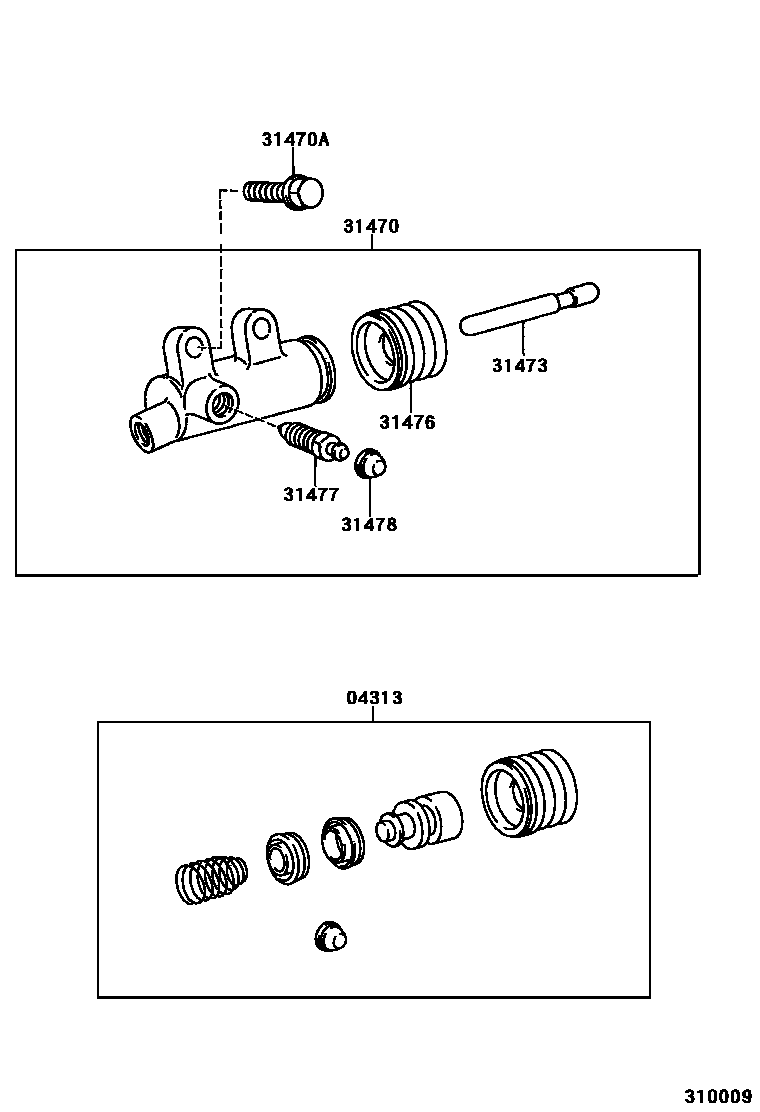

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iVZJ90..MTM199604-200008

main04313-18020iKDJ9#,KZJ9#..MTM199604-200104

main04313-35060iKDJ9#..MTM200105-200211

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35120iVZJ90..MTM199604-200209

main31470-35140iKZJ9#..MTM199604-200211

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iVZJ90..MTM199604-199906

sub91611-G0820

main91611-60825iKZJ9#..MTM199604-199809

sub91611-B0825

main91611-G0820iKDJ9#,KZJ9#,VZJ90..MTM199906-200211

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iKDJ9#..MTM200105-200211

main31473-35050iVZJ90..MTM199604-200209

main31473-60141iKZJ9#..MTM199604-200105

sub31473-60142

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKZJ9#,VZJ90..MTM199604-200211

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKZJ9#,VZJ90..MTM199604-200211

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKZJ9#,VZJ90..MTM199604-200211

7 parts on this diagram · 2 diagrams in section
