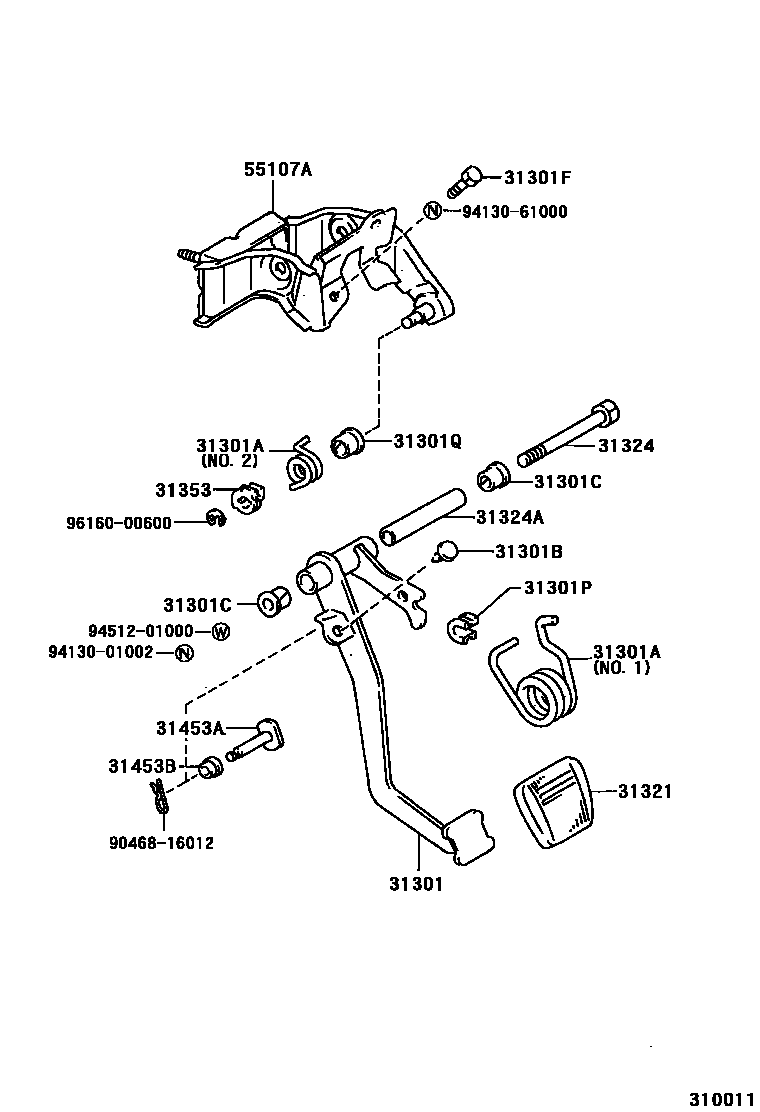

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-60240iKDJ9#,VZJ90..MTM200008-200211

main31310-60050iKZJ9#,VZJ90..MTM199604-200008

sub31301-60240

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03017iKDJ9#,KZJ9#,VZJ90..MTM199604-200211

main90949-03044iVZJ90..MTM199604-200209

main90949-03051iKZJ9#..MTM199604-200211

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKZJ9#,VZJ90..MTM199604-200211

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKZJ9#,VZJ90..MTM199604-200211

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKZJ9#,VZJ90..MTM199604-200211

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iKZJ9#,VZJ90..MTM199604-200211

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-13015iKZJ9#,VZJ90..MTM199604-200211

31321PAD, CLUTCH PEDAL

main31321-14020iKZJ9#,VZJ90..MTM199604-200211

31324SHAFT, CLUTCH PEDAL

main90101-10177iKZJ9#,VZJ90..MTM199604-200211

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10082iKDJ9#,KZJ9#,VZJ90..MTM199604-200211

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iKZJ9#,VZJ90..MTM199604-200211

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iKZJ9#,VZJ90..MTM199604-200211

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iKZJ9#,VZJ90..MTM199604-200211

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-35070iKZJ9#,VZJ90..MTM199604-200008

sub55107-60170

main55107-60170iKDJ9#,VZJ90..MTM200008-200211

9046816012

main90468-16012

9413001002

main94130-01002

9413061000

main94130-61000

9451201000

main94512-01000

9616000600

main96160-00600

19 parts on this diagram · 4 diagrams in section
