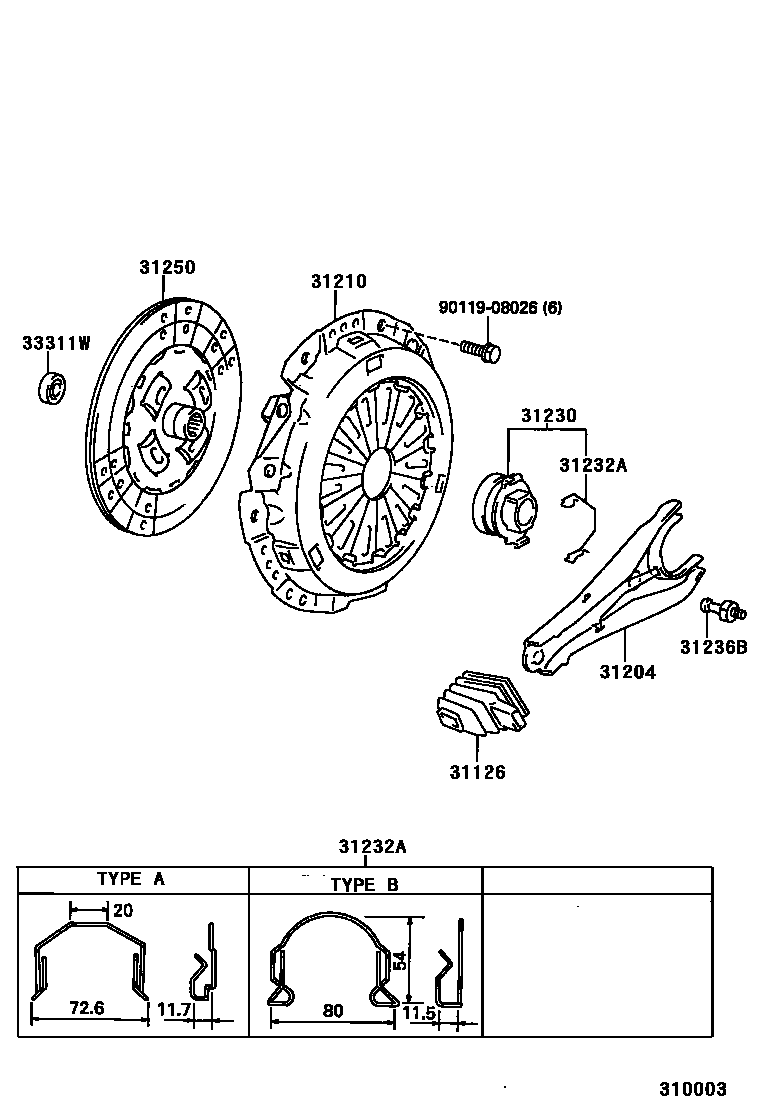

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-34010iVZJ90..MTM199604-200209

main31126-60080iKDJ9#,KZJ9#..MTM199604-200103

sub31126-60081

main31126-60081iKDJ9#..MTM200103-200211

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iVZJ90..MTM199604-200209

main31204-60090iKDJ9#,KZJ9#..MTM199604-200211

31210COVER ASSY, CLUTCH

main31210-35210iVZJ90..MTM199604-200209

sub31210-35290

main31210-60180iKZJ9#..MTM199604-200211

sub31210-60181

31230BEARING ASSY, CLUTCH RELEASE

main31230-35110iVZJ90..MTM199604-200209

main31230-60170iKDJ9#,KZJ9#..MTM199604-200211

31232ACLIP, RELEASE BEARING HUB

main31232-35020iVZJ90..MTM199604-200209

main31232-35030iVZJ90..MTM199604-200008

main31232-36030iKZJ9#..MTM199604-200211

main31232-60030iKDJ9#,KZJ9#..MTM199604-200211

31236BSUPPORT, RELEASE FORK

main31236-35030iVZJ90..MTM199604-200209

main31236-60060iKZJ9#..MTM199604-200211

31250DISC ASSY, CLUTCH

main31250-35331iKZJ9#..MTM199604-199701

sub31250-35332

main31250-35332iKDJ9#,KZJ9#..MTM199701-200211

sub31250-35333

main31250-35350iVZJ90..MTM199604-199703

sub31250-35351

main31250-35351iVZJ90..MTM199703-199805

sub31250-35352

main31250-35352iVZJ90..MTM199805-200209

sub31250-35353

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKZJ9#,VZJ90..MTM199604-200211

sub90363-12024

8 parts on this diagram · 2 diagrams in section
