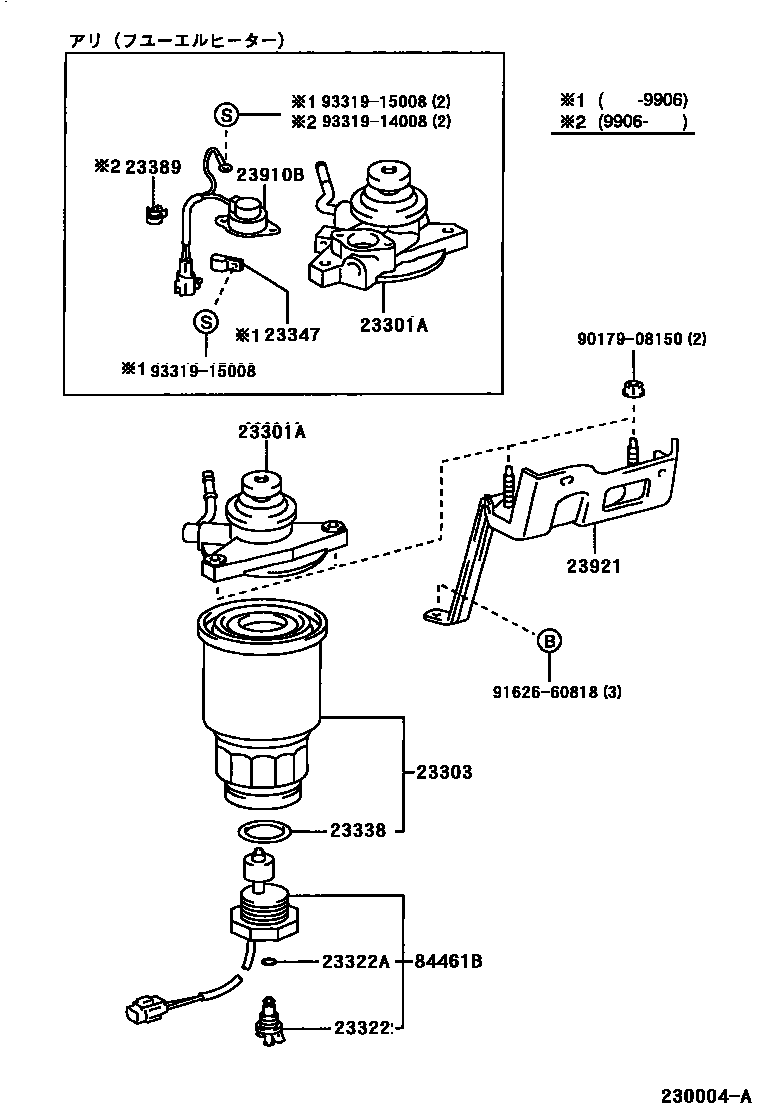

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-30020i1KDFTV..KDJ9#200008-200211

sub23380-30021

main23380-30030i1KDFTV..KDJ9#200008-200211

sub23380-30031

main23380-67120i1KZTE..KZJ9#199604-199906

main23380-67130i1KZTE..KZJ9#199604-199906

main23380-67260i1KZTE..KZJ9#199906-200008

sub23380-67261

main23380-67270i1KZTE..KZJ9#199906-200008

sub23380-67271

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1KZTE..KZJ9#199604-199906

main23390-64480i1K#..KDJ9#,KZJ9#199906-200211

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i1KZTE..KZJ9#199604-200211

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1K#..KDJ9#,KZJ9#199604-200211

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1K#..KDJ9#,KZJ9#199604-200211

23347CLIP, CORD

main23347-54010i1KZTE..KZJ9#199604-199906

23389CLAMP, FUEL FILTER

main23389-64490i1K#..KDJ9#,KZJ9#199906-200211

23910BHEATER ASSY, FUEL

main23910-27010i1KDFTV..KDJ9#200008-200211

main23910-67020i1KZTE..KZJ9#199604-199906

main23910-67040i1KZTE..KZJ9#199906-200008

23921SUPPORT, FUEL FILTER

main23921-67040i1KZTE..KZJ9#199604-200211

84461BSWITCH, LEVEL WARNING

main84461-60070iKZJ9#199604-200211

9017908150

main90179-08150

9162660818

main91626-60818

9331914008

main93319-14008

9331915008

main93319-15008

14 parts on this diagram · 1 diagram in section
