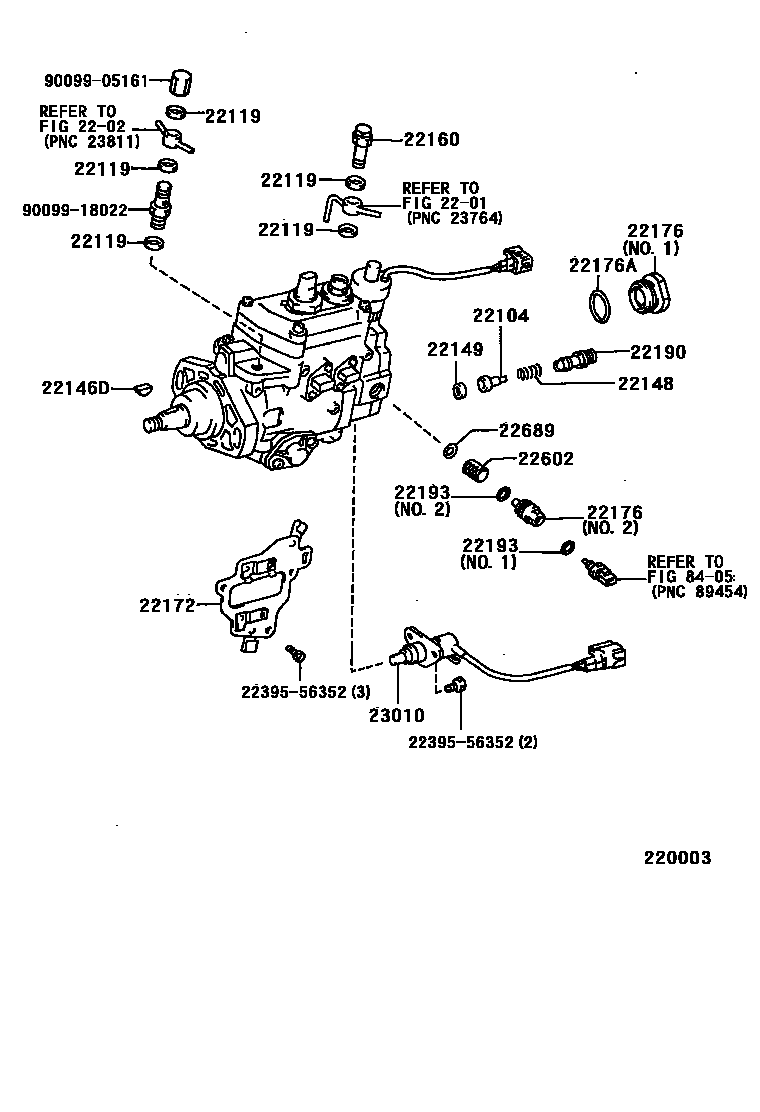

INJECTION PUMP BODY

0001 1 0002 1 0003 1

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-17010×4i1KZTE..KZJ9#199604-199906

main22104-67100×4i1KZTE..KZJ9#199906-200008

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×4i1KDFTV..KDJ9#200008-200211

22146DKEY(FOR DRIVE GEAR)

main90099-13017i1KZTE..KZJ9#199906-200008

main90099-13018i1KZTE..KZJ9#199604-199906

22148SPRING, DELIVERY VALVE

main22148-54010×4i1KZTE..KZJ9#199604-199906

22149GASKET, DELIVERY VALVE

main22149-56351×4i1KZTE..KZJ9#199604-199906

22160SCREW SUB-ASSY, OVERFLOW

main22160-67030i1KZTE..KZJ9#199604-199808

main22160-67100i1KZTE..KZJ9#199808-199906

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-67030i1KZTE..KZJ9#199604-199906

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i1KZTE..KZJ9#199906-200008

main22176-67030i1KZTE..KZJ9#199604-199906

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i1KZTE..KZJ9#199604-199906

22190VALVE SUB-ASSY, SNUBBER

main22190-6A290×4i1KZTE..KZJ9#199604-199906

main22190-6A680×4i1KZTE..KZJ9#199906-200008

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-5B302i1KZTE..KZJ9#199604-199906

main22193-67030i1KZTE..KZJ9#199604-199906

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i1KZTE..KZJ9#199604-199906

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i1KZTE..KZJ9#199604-199906

23010VALVE ASSY, TIMING CONTROL

main23010-67010i1KZTE..KZJ9#199906-200008

main23010-67030i1KZTE..KZJ9#199604-199906

8405

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

9009905161

main90099-05161

9009918022

main90099-18022

20 parts on this diagram · 3 diagrams in section
