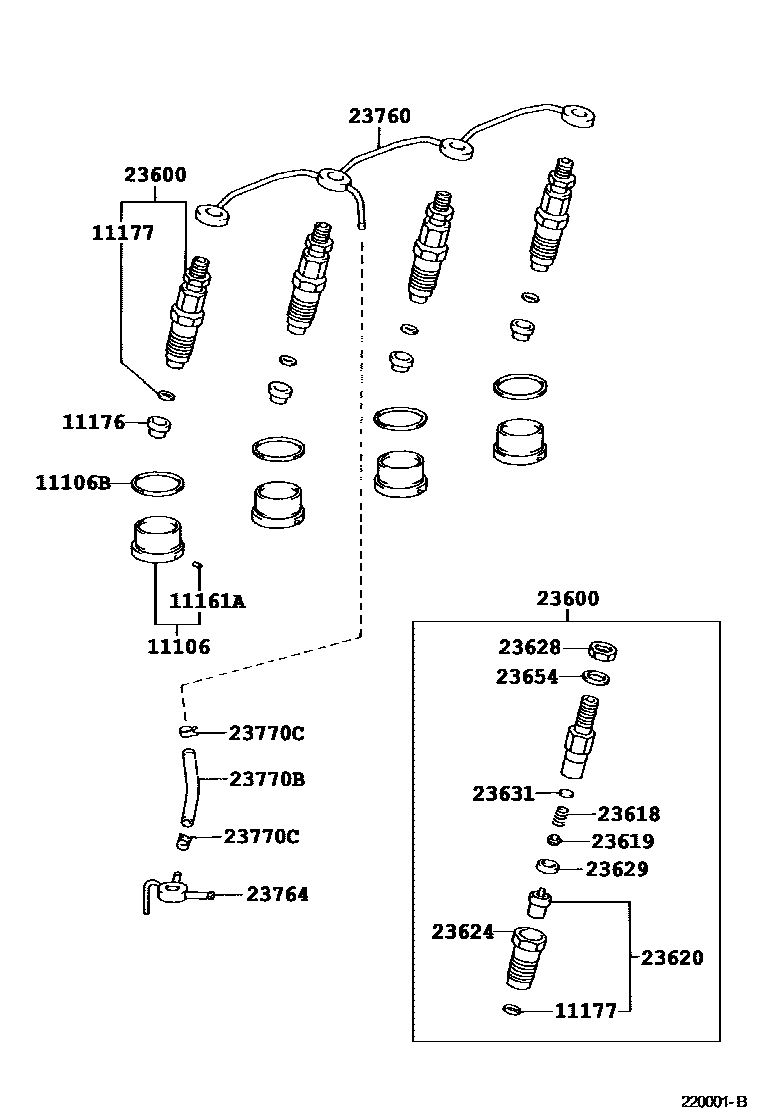

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-67020i1KZTE..KZJ9#199604-199906

main11106-67051i1KZTE..KZJ9#199906-199909

main11106-67052i1KZTE..KZJ9#199909-200008

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-67020i1KZTE..KZJ9#199604-199909

main11165-67030i1KZTE..KZJ9#199909-200008

main11166-67020i1KZTE..KZJ9#199604-199909

main11166-67030i1KZTE..KZJ9#199909-200008

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i1KZTE..KZJ9#199604-200008

11176SEAT, INJECTION NOZZLE

main11176-30010i1KDFTV..KDJ9#200008-200211

sub11176-30011

main11176-67010i1KZTE..KZJ9#199604-199909

main11176-67011i1KZTE..KZJ9#199909-200008

11177GASKET, INJECTION NOZZLE SEAT

main11177-64010i1KZTE..KZJ9#199604-200008

23600HOLDER & NOZZLE SET, NOZZLE

main23600-69105i1KZTE..KZJ9#199604-199906

main23600-69165i1KZTE..KZJ9#199906-200008

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54730i1KZTE..KZJ9#199604-199906

main23618-64080i1KZTE..KZJ9#199906-200008

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i1KZTE..KZJ9#199604-200008

23620NOZZLE ASSY

main23620-69075i1KZTE..KZJ9#199604-199906

main23620-69105i1KZTE..KZJ9#199906-200008

23624NUT, NOZZLE RETAINING

main23624-64040i1KZTE..KZJ9#199906-200008

sub23624-64041

main23624-64041i1KZTE..KZJ9#199604-199906

23628NUT(FOR RING PACKING SETTING)

main23628-64010i1KZTE..KZJ9#199604-200008

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i1KZTE..KZJ9#199604-200008

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i1KZTE..KZJ9#199604-200008

main23631-64012i1KZTE..KZJ9#199604-200008

main23631-64014i1KZTE..KZJ9#199604-200008

main23631-64016i1KZTE..KZJ9#199604-200008

main23631-64018i1KZTE..KZJ9#199604-200008

main23632-64010i1KZTE..KZJ9#199604-200008

main23632-64012i1KZTE..KZJ9#199604-200008

main23632-64014i1KZTE..KZJ9#199604-200008

main23632-64016i1KZTE..KZJ9#199604-200008

main23632-64018i1KZTE..KZJ9#199604-200008

main23633-64010i1KZTE..KZJ9#199604-200008

main23633-64012i1KZTE..KZJ9#199604-200008

main23633-64014i1KZTE..KZJ9#199604-200008

main23633-64016i1KZTE..KZJ9#199604-200008

main23633-64018i1KZTE..KZJ9#199604-200008

main23634-64010i1KZTE..KZJ9#199604-200008

main23634-64012i1KZTE..KZJ9#199604-200008

main23634-64014i1KZTE..KZJ9#199604-200008

main23634-64016i1KZTE..KZJ9#199604-200008

main23634-64018i1KZTE..KZJ9#199604-200008

main23635-64010i1KZTE..KZJ9#199604-200008

main23635-64012i1KZTE..KZJ9#199604-200008

23654WASHER(FOR RING PACKING)

main23654-64010i1KZTE..KZJ9#199604-200008

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-30010i1KDFTV..KDJ9#200008-200105

main23760-30020i1KDFTV..KDJ9#200105-200211

main23760-67020i1KZTE..KZJ9#199604-199906

main23760-67030i1KZTE..KZJ9#199906-200008

23764PIPE, NOZZLE LEAKAGE, NO.4

main23764-67010i1KZTE..KZJ9#199604-200008

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-30010i1KDFTV..KDJ9#200008-200206

sub23770-30011

main23770-30011i1KDFTV..KDJ9#200206-200211

23770BHOSE, FUEL

main23271-30020i1KDFTV..KDJ9#200008-200211

main95333-04020i1KZTE..KZJ9#199906-200008

main95333-04020i1KZTE..KZJ9#199604-199906

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10049i1KZTE..KZJ9#199604-200008

sub90467-10149

main96135-41100i1KDFTV..KDJ9#200008-200211

sub96135-51100

19 parts on this diagram · 2 diagrams in section
