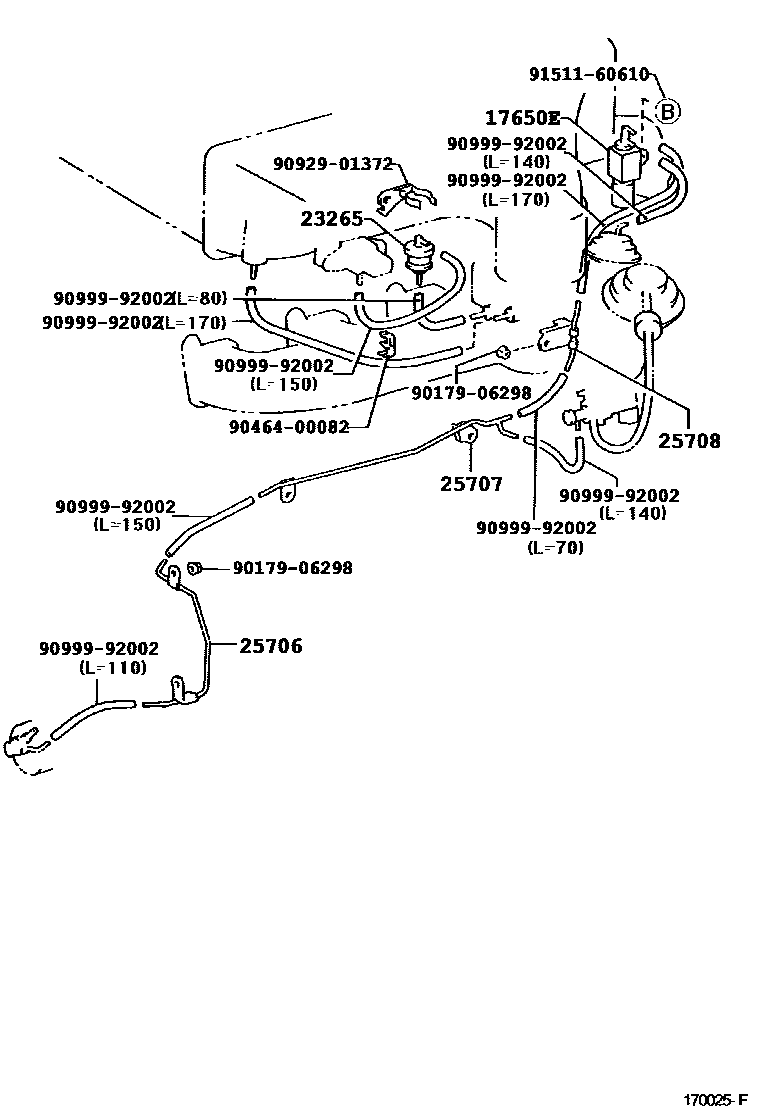

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17650EVALVE, VACUUM SWITCHING

main90910-12126i1KZTE..KZJ9#199604-199906

main90910-12185i1KZTE..KZJ9#199906-200008

23265FILTER, GAS, NO.1

main90917-11038i1KZTE..KZJ9#199604-199906

main90917-11044i1KDFTV..KDJ9#200008-200211

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30010i1KDFTV..KDJ9#200008-200211

main25706-67020i1KZTE..KZJ9#199604-199906

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-67010i1KZTE..KZJ9#199604-199906

main25707-67011i1K#..KDJ9#,KZJ9#199906-200211

25708PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3

main25708-67010i1KZTE..KZJ9#199604-199906

9017906298

main90179-06298

9046400082

main90464-00082

9092901372

main90929-01372

9099992002

main90999-92002

9151160610

main91511-60610

10 parts on this diagram · 6 diagrams in section
