ENGINE OIL COOLER

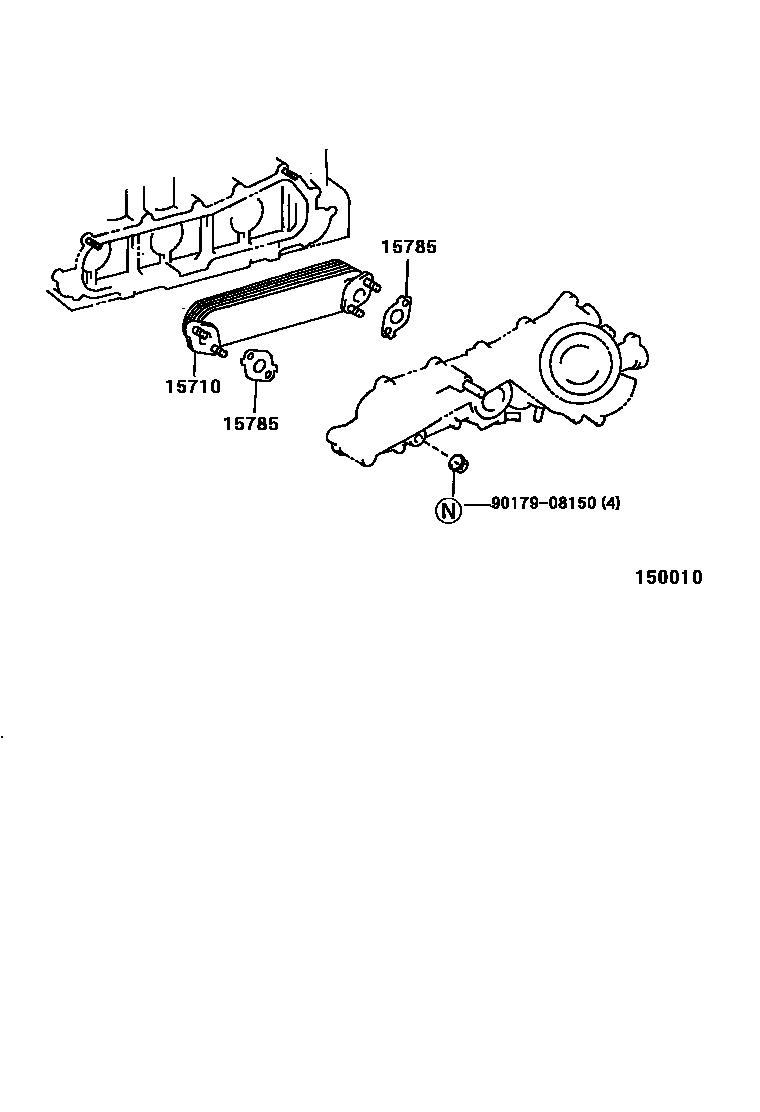

Parts diagram

15710COOLER ASSY, OIL

main15710-30010i200008-200211

main15710-67040i199604-200008

15785GASKET, OIL COOLER

main15785-30010i200004-200211

main15785-66010i199604-200004

9017908150

main90179-08150

3 parts on this diagram · 1 diagram in section
