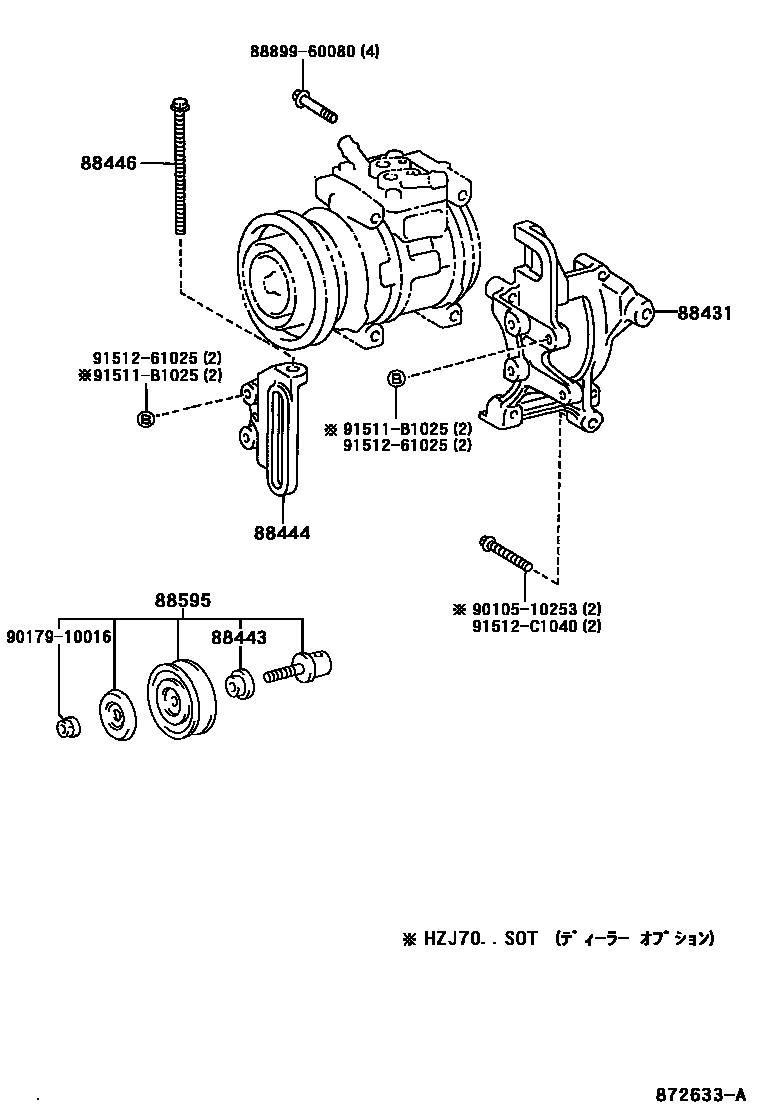

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60150iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199001-200408

main88431-60180iLJ7#199004-199305

main88431-60220iKZJ7#199305-199604

88443COLLAR, IDLE PULLEY

main88443-36010iHZJ7#199908

88444BRACKET, IDLE PULLEY

main88444-60080iLJ7#199004-199305

main88444-60100iHZJ77..ZX;HZJ71,74,76,79,PZJ7#199001-200408

88446BOLT, IDLE PULLEY

main88446-35030iLJ7#199004-199305

main88446-60030iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199001-200408

main88446-60040iKZJ7#199305-199604

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35010iHZJ7#199912-200408

main88440-35030iLJ7#199004-199305

main88440-60040iHZJ7#,PZJ7#199001-199911

main88440-60050iKZJ7#199305-199604

8889960080COVER, EVAPORATOR

main88899-60080

9010510253

main90105-10253

9017910016

main90179-10016

91511B1025

main91511-B1025

9151261025

main91512-61025

91512C1040

main91512-C1040

11 parts on this diagram · 5 diagrams in section
