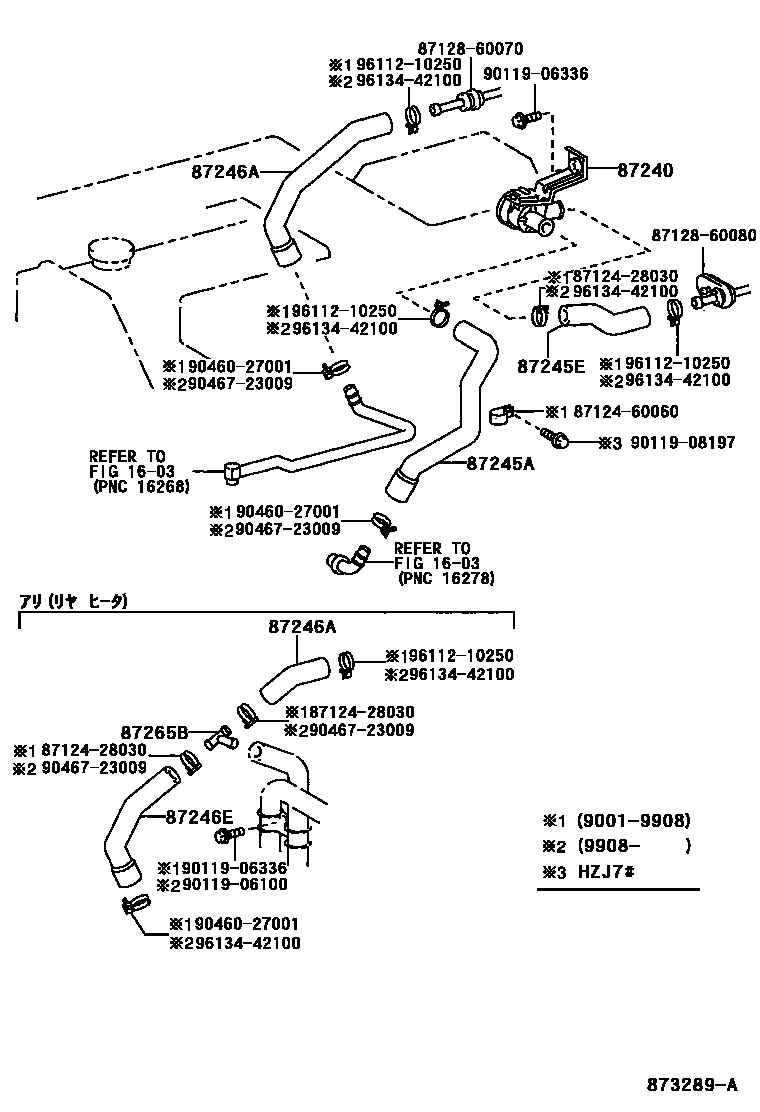

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1REAR HEATER 0006 1REAR HEATER 0007 1REAR HEATER

1603

87240VALVE ASSY, HEATER WATER

main87240-60100iLJ7#¥3,210199004-199604

main87240-60110iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#¥3,230199001-200408

main87240-90K01iFJ75¥3,190199006-199208

87245AHOSE, HEATER WATER, INLET A

main87245-60150iLJ7#¥1,300199004-199305

main87245-60160iHZJ7#¥1,130199001-200408

main87245-60190iPZJ7#¥1,940199001-199401

main87245-60230iLJ7#¥940199004-199305

main87245-60530iKZJ7#¥1,490199305-199604

main87245-90K53iFJ75¥1,340199006-199208

87245EHOSE, HEATER WATER, INLET E

main87245-1B060iFJ75¥520199006-199208

main87245-60220iLJ7#¥930199004-199604

main87245-60290iHZJ7#,PZJ7#¥380199001-200408

87246AHOSE, HEATER WATER, OUTLET A

main87245-60140iLJ7#¥820199004-199305

main87245-60170iHZJ7#¥1,690199001-199805

sub87245-60171¥1,060

main87245-60171iHZJ7#¥1,060199805-200408

main87245-60200iPZJ7#¥1,540199001-199401

main87245-60250iHZJ70,73,77¥710199501-199805

sub87245-60251¥440

main87245-60250iHZJ73,77,PZJ7#¥710199001-199501

sub87245-60251¥440

main87245-60251iHZJ70,73,77¥440199805-199908

main87245-60251iHZJ71,74,76¥440199908-200408

main87245-60520iKZJ7#¥1,330199305-199604

main87245-60540iKZJ7#¥870199305-199307

main87245-60541iKZJ7#¥730199307-199604

main87245-90K07iFJ75¥1,540199006-199208

87246EHOSE, HEATER WATER, OUTLET E

main87245-60260iPZJ7#¥1,140199001-199401

main87245-60270iHZJ70,73,77¥1,200199501-199805

sub87245-60271¥750

main87245-60270iHZJ73,77¥1,200199001-199501

sub87245-60271¥750

main87245-60271iHZJ71,74,76¥750199908-200408

main87245-60271iHZJ70,73,77¥750199805-199908

main87245-60550iKZJ7#¥760199305-199604

main87245-90K36iFJ75¥1,690199006-199208

87265CONNECTOR, HEATER WATER HOSE

main87248-60460iKZJ7#¥0199305-199604

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87248-60460iKZJ7#¥0199305-199604

main87248-95400iHZJ73,77..ZX;HZJ71,74,76,PZJ7#199001-200408

main87248-95400iHZJ70,73,77199501-199908

8712428030CLAMP, HEATER

main87124-28030

8712460060CLAMP, HEATER

main87124-60060

8712860070GROMMET, HEATER

main87128-60070

8712860080GROMMET, HEATER

main87128-60080

9011906100

main90119-06100¥100

9011906336

main90119-06336¥80

9011908197

main90119-08197¥170

9046027001

main90460-27001¥240

9046723009

main90467-23009¥200

9611210250

main96112-10250¥240

9613442100

main96134-42100¥90

19 parts on this diagram · 7 diagrams in section
