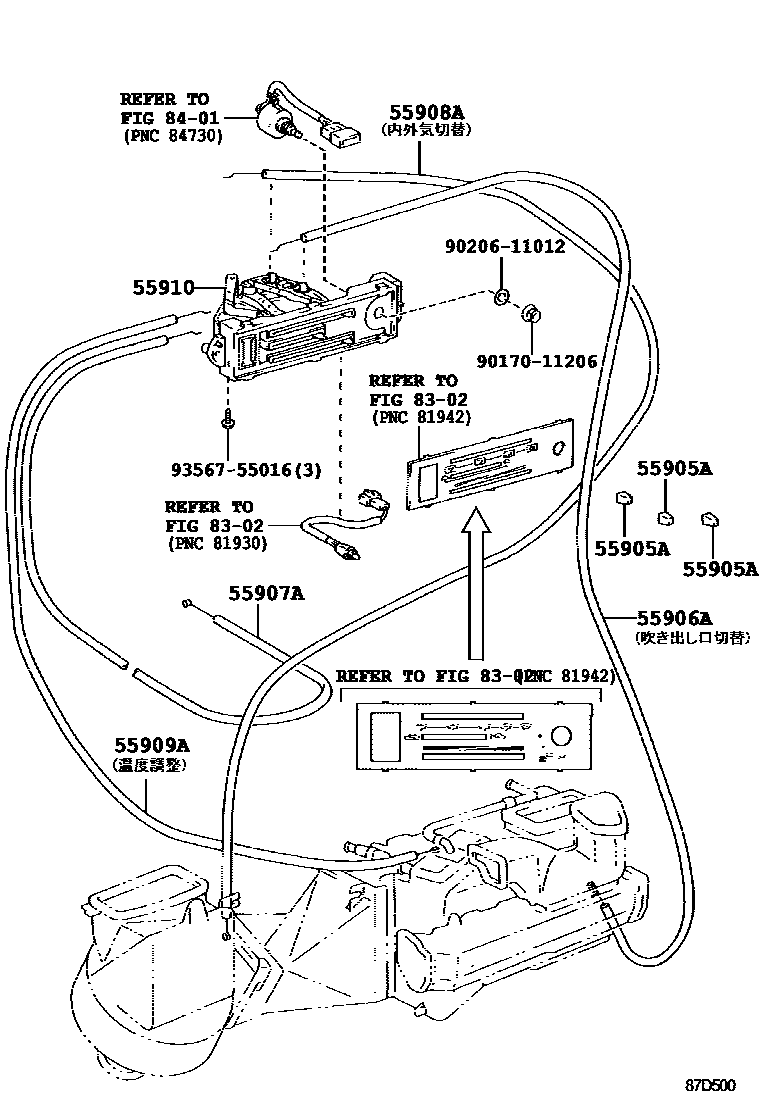

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1�-�����-� & �-��� 0002 1�� ���� 0003 1�� ����

55905AKNOB, HEATER CONTROL

main55905-89110×2iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

DEF-VENT,WARM-COOL

main55905-95J01iHZJ7#,KZJ7#,PZJ7#199305-199908

FRESH-RECIRC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-90K00iHZJ7#,KZJ7#,PZJ7#199305-199908

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60040iKZJ7#199305-199604

main55907-90K02iHZJ7#199908-200408

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90K00iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-90K02iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60220iHZJ7#200304-200408

main55910-90K02iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001-200304

8302

8401

9017011206

main90170-11206

9020611012

main90206-11012

9356755016

main93567-55016

11 parts on this diagram · 3 diagrams in section
