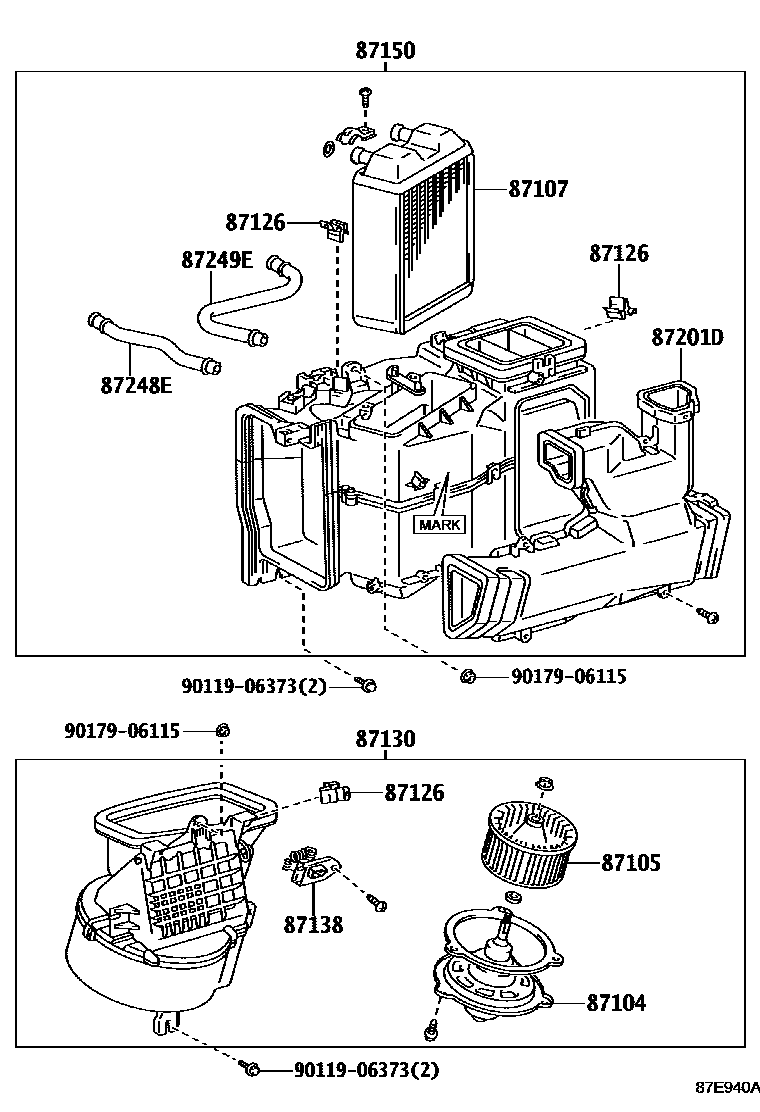

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1���� �-� 0002 1�� �-�

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-89110iFJ75,HZJ71,74,75,76,79,LJ7#199004-200408

main87104-90K00iHZJ73,77,PZJ7#199001-199908

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14030iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001-200408

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-60230iHZJ7#199611-200408

main87107-90K00iFJ75199006-199208

main87107-90K04iHZJ7#,LJ7#,PZJ7#199001-199611

87126CLAMP, HEATER CONTROL

main87124-20020iHZJ7#,KZJ7#,PZJ7#199306-200408

main87126-12050iHZJ7#,KZJ7#,PZJ7#199001-200408

HEATER RADIATOR

main87126-90K00iHZJ7#,KZJ7#,PZJ7#199001-199306

sub87124-20020

87130BLOWER ASSY, HEATER, FRONT

main87130-60270iHZJ7#199004-200408

main87130-60280iHZJ70,73,77,PZJ7#199001-199908

87138RESISTOR, HEATER BLOWER

main87138-90K00iHZJ75,KZJ7#199004-200408

main87138-90K01iHZJ70,73,77,PZJ7#199001-199908

87150RADIATOR ASSY, HEATER

main87150-60230iFJ75199006-199208

sub87150-60231

main87150-60260iHZJ7#,KZJ7#,PZJ7#199001-199611

main87150-60550iHZJ7#199611-199904

sub87150-60551

main87150-60551iHZJ7#199904-200408

87201DDUCT SUB-ASSY, AIR

main87201-60020iHZJ7#,KZJ7#,PZJ7#199001-199904

sub87201-60021

main87201-60021iHZJ7#199904-200408

87248EPIPE, HEATER WATER INLET, E

main87248-60620iHZJ7#199611-200408

main87248-90K00iFJ75199006-199208

main87248-90K21iHZJ7#,LJ7#,PZJ7#199001-199611

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87248-60630iHZJ7#199611-200408

main87248-90K04iFJ75199006-199208

main87248-90K24iHZJ7#,KZJ7#,PZJ7#199004-199611

9011906373

main90119-06373

9017906115

main90179-06115

12 parts on this diagram · 2 diagrams in section
