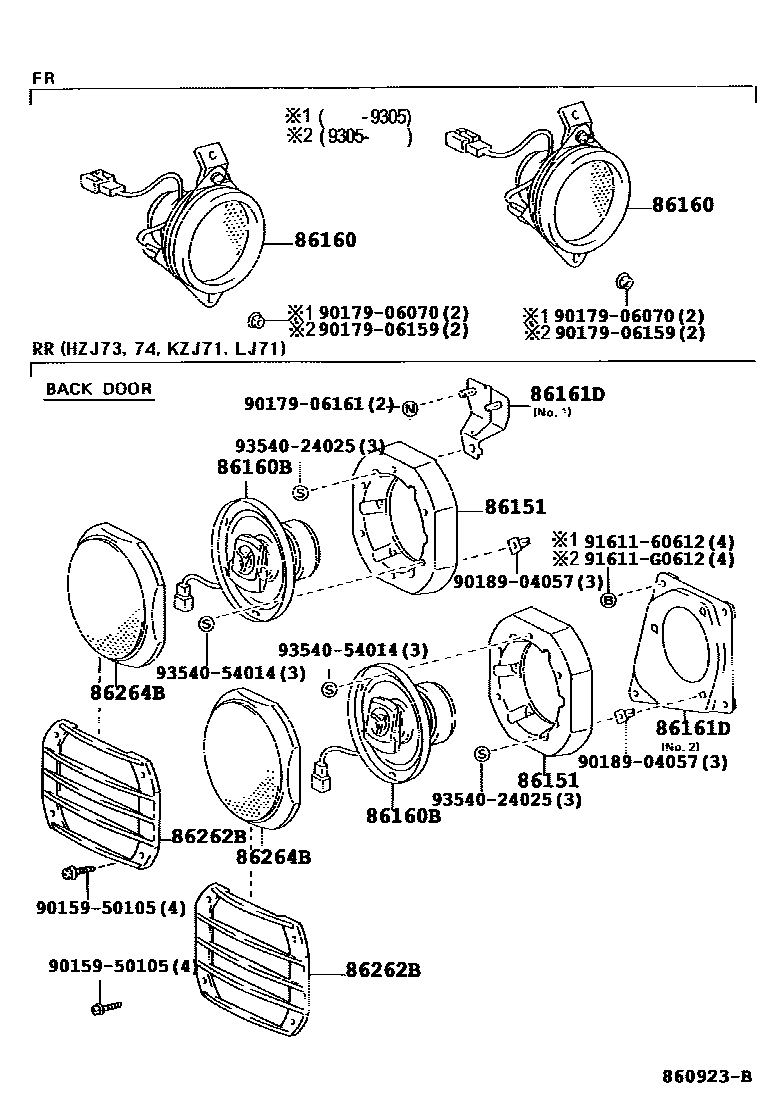

SPEAKER

0001 1 0002 1

86151BOX, SPEAKER

main86151-90K01iHZJ73,KZJ71..SX,ZX199004-200408

86160SPEAKER ASSY, FRONT NO.1

main86160-60130iKZJ78..EX199004-199604

main86160-60250iHZJ74,76..ZX199608-200408

main86160-90K00iHZJ75,PZJ7#..STD199001-199401

main86160-90K01iHZJ7#..LX,STD199001-200408

main86160-90K01iPZJ77..STD..1NO199001-199401

86160BSPEAKER ASSY, REAR

main86160-22591iHZJ77,KZJ78..EX,SX,ZX199004-200408

main86160-60140iLJ78..EX,EX5199004-199604

main86160-90K02iLJ71..SX5199004-200408

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-90K00iHZJ73,KZJ71..SX,ZX199004-200408

main86161-90K00iLJ78..EX,EX5199004-199604

main86161-90K01iLJ71..SX5199004-200408

86262BCOVER, SPEAKER, REAR

main86269-90K01iLJ78..EX,EX5199004-200408

86264BGRILLE, SPEAKER, REAR

main86269-90K00iLJ71..SX5199004-200408

9015950105

main90159-50105

9017906070

main90179-06070

9017906159

main90179-06159

9017906161

main90179-06161

9018904057

main90189-04057

9161160612

main91611-60612

91611G0612

main91611-G0612

9354024025

main93540-24025

9354054014

main93540-54014

15 parts on this diagram · 2 diagrams in section
