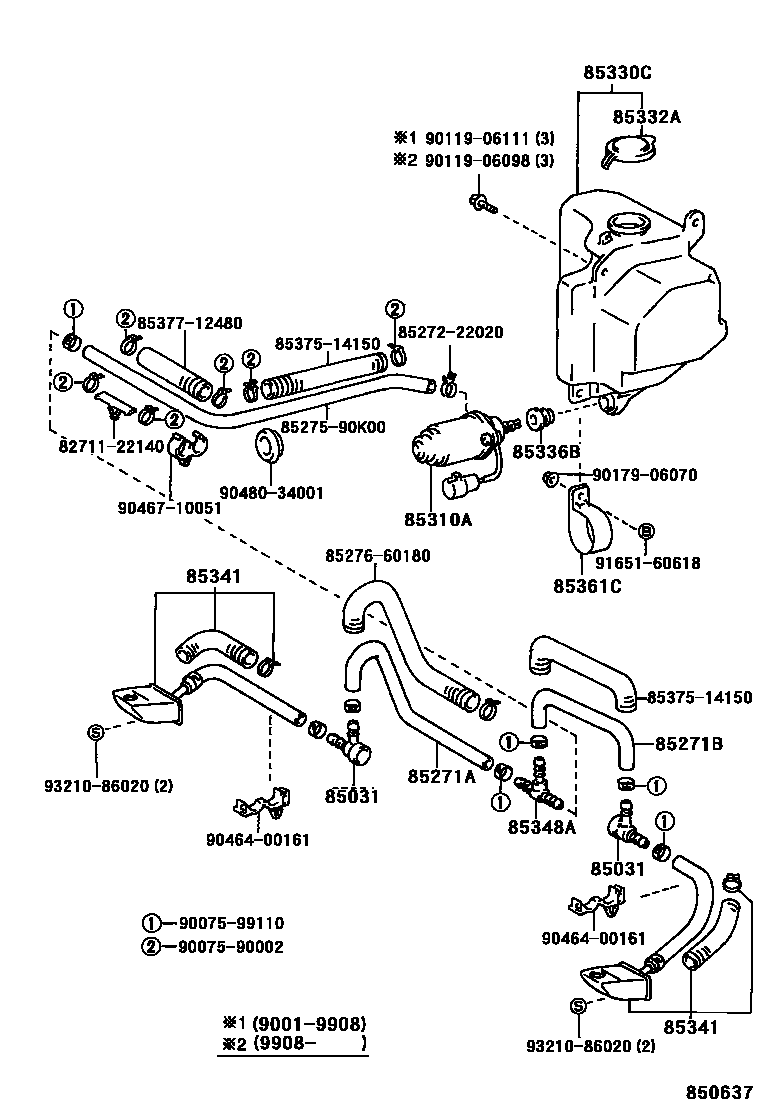

HEADLAMP CLEANER

0001 1 0002 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iHZJ70,73,77,KZJ7#,PZJ7#..EX,LX,SX,ZX199001-199908

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-90K00iLJ7#199004-199604

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-20190iKZJ7#199004-199604

main85376-12510iHZJ71,74,76199001-199908

85271BHOSE, HEADLAMP CLEANER, NO.3

main85271-20020iKZJ7#199004-199604

main85343-87702iHZJ71,74,76199001-199908

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-60020iHZJ73,77,PZJ7#..LX,ZX199001-199402

sub85280-60021

main85280-60021iHZJ70,73,77199402-199908

main85280-60030iKZJ7#199402-199604

main85280-60050iHZJ71,74,76199908-200408

main85310-22100iKZJ7#199004-199402

sub85310-95J02

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85351-60080iLJ7#199004-199604

main85351-60090iHZJ73,77,PZJ7#..LX,ZX199001-200408

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85356-60060iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-200408

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-200408

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-60010iLJ7#199004-199305

main85044-60011iKZJ7#199305-199604

main85044-90K00iHZJ71,74,76199001-200408

main85045-90K00iHZJ70,73,77,PZJ7#..LX,ZX199001-200408

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-60070iLJ7#199004-199604

2 WAY,NO.1

main85352-12010iHZJ70,73,77,KZJ7#,PZJ7#..EX,LX,SX,ZX199001-199908

3 WAY

main85379-22080iKZJ7#199004-199604

2 WAY,NO.2

85361CBRACKET, WASHER

main85361-90K02iLJ7#199004-199604

main85366-60080iHZJ73,77,PZJ7#..LX,ZX199007-199908

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

8527590K00WIRING SUB-ASSY, HEADLAMP CLEANER

main85275-90K00

8527660180RELAY, CLEANER CONTROL

main85276-60180

8537514150HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-14150

8537712480

main85377-12480

9007590002

main90075-90002

9007599110

main90075-99110

9011906098

main90119-06098

9011906111

main90119-06111

9017906070

main90179-06070

9046400161

main90464-00161

9046710051

main90467-10051

9048034001

main90480-34001

9165160618

main91651-60618

9321086020

main93210-86020

27 parts on this diagram · 2 diagrams in section
