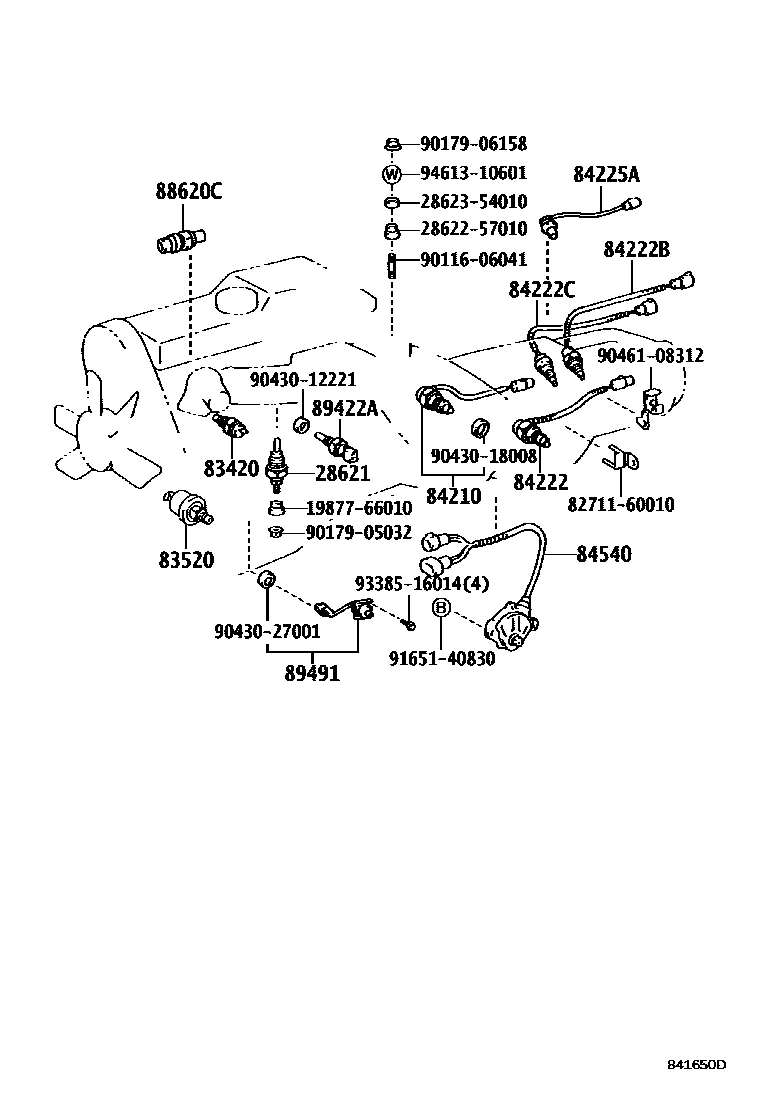

SWITCH & RELAY & COMPUTER

0001 1�����,���������,������ 0002 1�����,���������,������ 0003 1�����,���������,������ 0004 1������-� ���� & ��- 0005 1������-� ���� & ��- 0006 1����� ���� 0007 1������� 0008 1����� & ��� ��- 0009 1����� & ��� ��- 0010 1���,��� ���� & ��- 0011 1����� ������ & ������-

28621RESISTOR, GLOW PLUG

main28621-54080i2LTE..LJ7#199004-199305

main28621-68010i1HZ..HZJ75199212-199908

main28621-68020i1HZ,1PZ..HZJ73,PZJ70199001-199908

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iHZJ7#199208-199908

main83420-16040iHZJ7#199908-200408

main83420-20020iFJ75,HZJ7#,LJ7#,PZJ7#199001-199208

main83420-20030iHZJ7#,LJ7#,PZJ7#199208-199305

sub83420-16040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35030iHZJ71,74,76199908-200408

sub83520-35031

main83520-60010iFJ75,LJ7#199004-199112

sub83520-60011

main83520-60011iFJ75,LJ7#199112-199305

main83520-60020iHZJ73,77,PZJ7#..LX,ZX199001-199908

main83520-60030iKZJ7#199305-199604

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iHZJ7#..MTM199001-200408

sub84210-52050

main84210-60021iHZJ7#..MTM199001-199908

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60022iHZJ7#,KZJ7#,PZJ7#199001-200408

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60030iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001-200408

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60041iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

84225ASWITCH, SHIFT POSITION

main84225-35010iLJ7#..MTM199108-199604

84540SWITCH ASSY, NEUTRAL START

main84540-30270iLJ7#..ATM199208-199305

main84540-30270iKZJ7#..ATM199305-199604

main84540-30280iLJ7#..ATM199208-199305

MATUSHITA

sub84540-30270

main84540-35040iLJ7#..ATM199004-199208

sub84540-50010

main84540-60020iHZJ7#..ATM199001-199208

main84540-60030iHZJ73,77..ATM199208-200408

88620CTHERMO SWITCH ASSY

main88790-22060iLJ7#..ATM199004-199108

main88790-60050iLJ78..3NO;LJ7#..ATM..5NO199108-199305

89422ASENSOR, WATER TEMPERATURE

main89422-20010iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199001-200408

main89422-35010iLJ7#199108-199604

89491SENSOR, ENGINE OIL LEVEL

main89491-25020iKZJ7#199505-199604

sub89491-25021

main89491-26081iLJ7#199208-199305

main89491-36080iHZJ73,77199208-199908

main89491-60020iPZJ7#199208-199401

main89491-60030iHZJ75199212-199908

main89491-60040iKZJ7#199305-199505

sub89491-25020

main89491-60060iHZJ7#199908-200408

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

9011606041

main90116-06041

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9046108312

main90461-08312

9165140830

main91651-40830

9338516014

main93385-16014

9461310601

main94613-10601

26 parts on this diagram · 11 diagrams in section
