METER

0001 1��(���-�) 0002 1��(���-�) 0003 1 0004 1����� & ����:��(�����) 0005 1����� & ����:��(�����) 0006 1����� & ���� 0007 1 0008 1������ ���

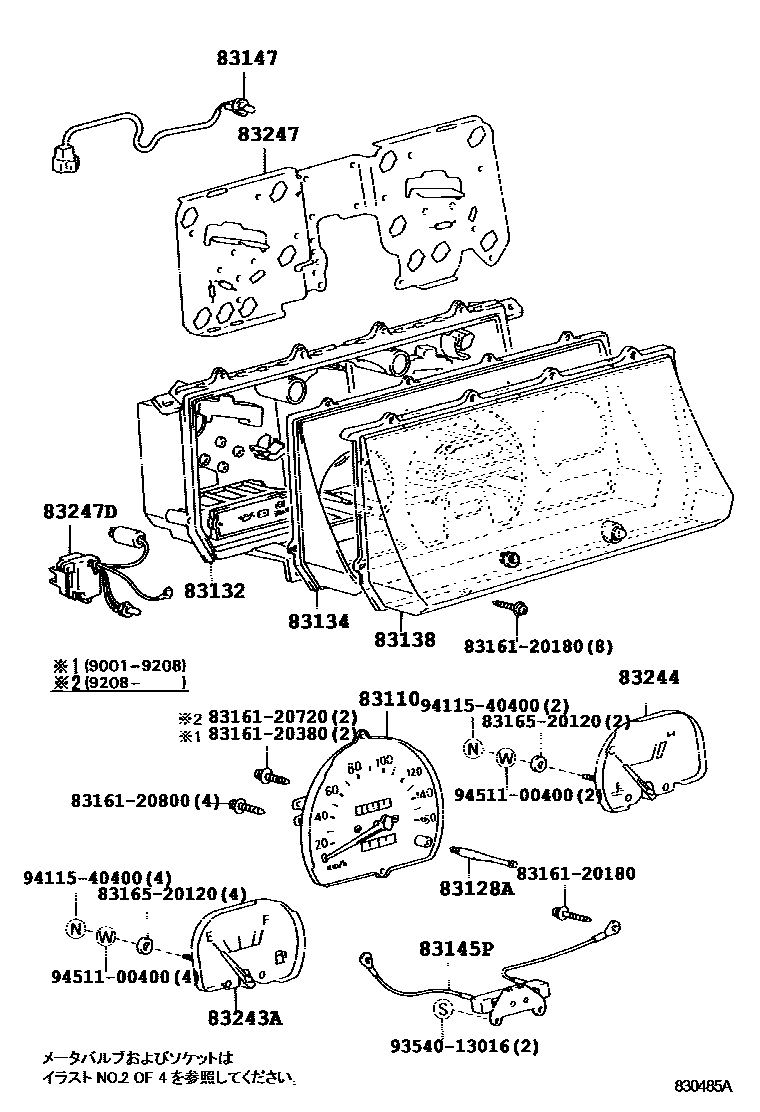

83110SPEEDOMETER ASSY

main83110-60400iHZJ7#,PZJ7#..LX,ZX199001-199208

main83110-60401iHZJ73,77,PZJ7#..LX,ZX199208-199608

main83110-60410iLJ7#199004-199208

main83110-60411iLJ7#199208-199604

main83110-60540iPZJ7#..STD199001-199208

main83110-60541iPZJ7#..STD199208-199401

main83110-60650iFJ75199006-199208

main83110-60830iPZJ7#..STD199108-199208

main83110-60831iPZJ7#..STD199208-199401

main83110-6A120iHZJ75199212-199608

main83220-60180iHZJ70,73,77199608-199908

main83220-60240iHZJ75199608-199908

main83220-60800iHZJ7#..MTM199908-200408

83128KNOB, TRIP COUNTER

main83224-6B360iHZJ7#..MTM199908-200408

83128AKNOB, METER

main83128-90K00iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

83132CASE, COMBINATION METER

main83132-60140iPZJ7#..STD199001-199208

main83132-60180iPZJ7#..STD199108-199208

main83132-60220iFJ75199006-199208

main83132-60240iHZJ7#,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-199208

main83132-60360iPZJ77..U;HZJ73,PZJ70..MTM..(LX,ZX)..4NO199305-199608

main83132-60360iHZJ73,77,LJ7#,PZJ7#..EX,LX,LX5,SX5,ZX199208-199604

main83132-60380iHZJ75199212-199608

main83132-60520iPZJ7#..STD199208-199401

main83132-60540iPZJ7#..STD199208-199401

main83132-60760iHZJ73,77..ATM199501-199608

main83841-6A200iHZJ70,73,77..MTM199608-199908

main83841-6A220iHZJ73,77..ATM199608-199908

main83841-6A260iHZJ75199608-199908

main83841-6B360iHZJ71,74,76199908-200408

main83841-6B370iHZJ79199911-200408

83134COVER, COMBINATION METER, NO.1

main83134-60180iPZJ7#..STD199001-199208

main83134-60200iPZJ7#..LX;FJ75,HZJ7#,LJ7#199001-199608

main83134-60220iPZJ7#..STD199208-199401

main83134-60240iHZJ7#..(HT,PIC)..MTM199305-199908

main83821-6B360iHZJ74,76..ATM199908-200408

83138GLASS, SPEEDOMETER

main83138-60040iKZJ7#199001-199908

main83138-90K00iFJ75199006-199208

main83852-6B360iHZJ74,76..ATM199908-200408

83145LENS, METER, NO.1

main83831-6B440iHZJ7#..MTM199908-200408

main83831-6C070iHZJ74,76..ATM199908-200408

83145PDROPPER, METER

main83131-60100iPZJ77..LX;HZJ73,PZJ70..(LX,ZX)..4NO199208-199908

main83131-60120iPZJ7#..STD199208-199401

main83145-90K07iPZJ7#..STD199001-199208

main83145-90K08iHZJ7#,PZJ7#..LX,ZX199001-199208

83147LAMP, METER NO.1

main83147-60120iFJ75,LJ7#199004-199208

main83147-60160iHZJ7#,PZJ7#199001-199305

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-60140iHZJ73,77,PZJ7#..LX,ZX199208-199908

main83243-60160iHZJ75,LJ7#199208-199908

main83243-60200iPZJ7#..STD199208-199401

main83243-90K03iFJ75,LJ7#199004-199208

main83243-90K05iPZJ7#..STD199001-199208

main83243-90K06iHZJ7#,PZJ7#..LX,ZX199001-199208

main83882-6B360iHZJ71,74,76199908-200408

main83882-6C090iHZJ79199911-200408

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-60160iPZJ7#..STD199208-199401

main83244-90K00iPZJ7#..STD199001-199208

main83883-6B360iHZJ74,76..ATM199908-200408

83247PLATE, METER CIRCUIT

main83149-60180iHZJ73..1NO;HZJ70,77..U;HZJ73..LX..U199208-199908

main83149-60200iKZJ7#199208-199604

main83149-60220iHZJ75199212-199908

main83149-60360iPZJ7#..STD199208-199401

main83247-60520iPZJ7#..STD199001-199208

main83247-60700iFJ75199006-199208

main83247-60720iHZJ7#,PZJ7#..LX,ZX199001-199208

main83247-60740iLJ7#199004-199208

main83861-6C070iHZJ7#199908-200408

83247DDIFFLOCK ASSY

main83247-60660iPZJ7#..STD199108-199208

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316520120MIRROR, COMBINATION METER, NO.2

main83165-20120

9354013016

main93540-13016

9411540400

main94115-40400

9451100400

main94511-00400

21 parts on this diagram · 8 diagrams in section
