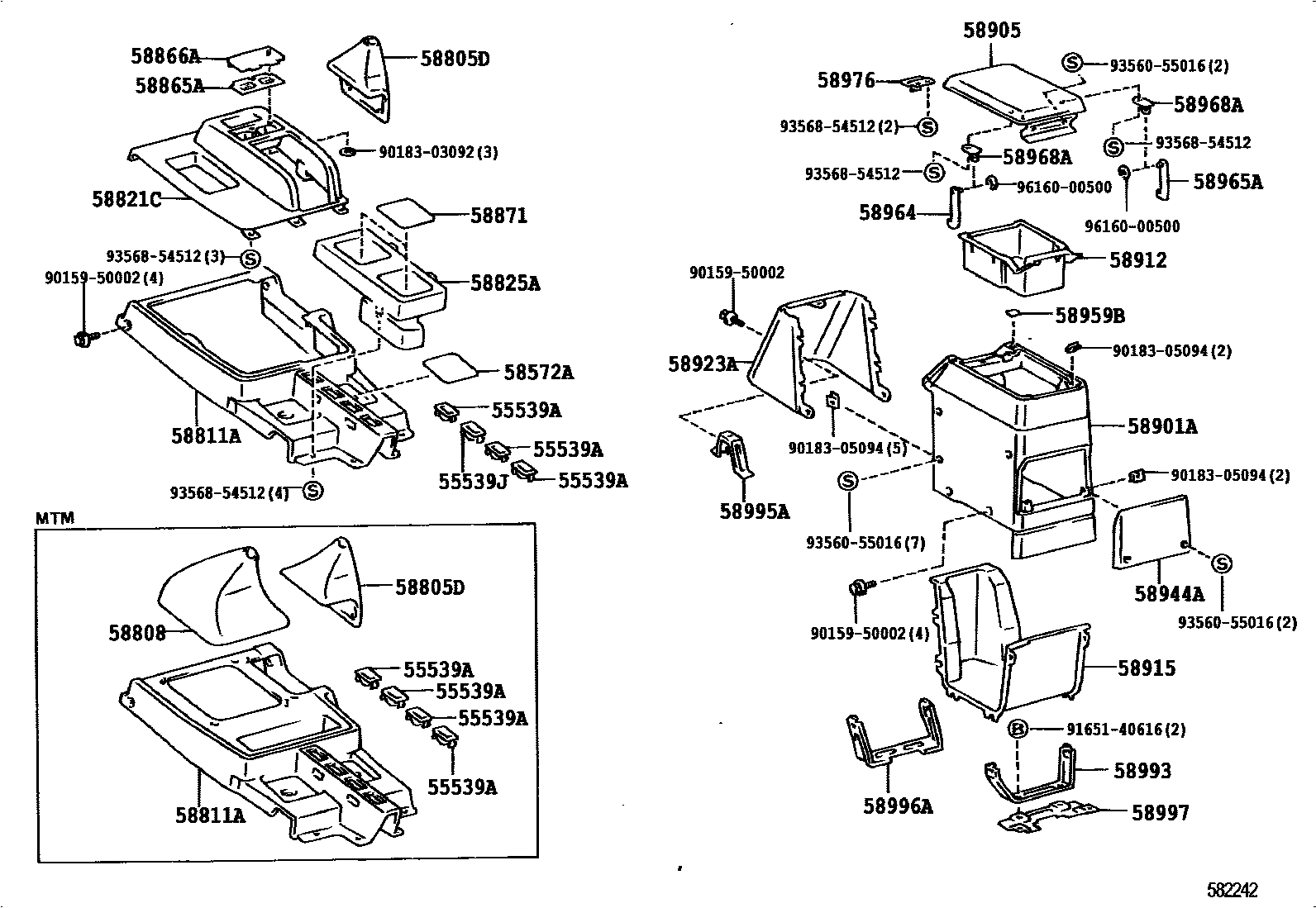

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-33iHZJ73,77..MTM..ZX199001-199501

BLUISH GRAY,TRIM1#

sub55539-20020¥460

main55539-20020-36iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199004-199501

SABLE,TRIM4#

sub55539-20020¥460

main55539-20020-36iLJ7#..ATM199208-199305

SABLE

sub55539-20020¥460

main55539-20020-B1iHZJ74,76..ATM199501-200408

BLUISH GRAY,TRIM1#

sub55539-20020¥460

main55539-20020-E2iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub55539-20020¥460

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-33iHZJ73,77..ATM199001-199501

BLUISH GRAY,TRIM1#

sub55539-20020¥460

main55539-20020-36iHZJ73,77..ATM..LX199004-199501

SABLE,TRIM4#

sub55539-20020¥460

main55539-20020-B1iHZJ73,77..ATM199501-199908

BLUISH GRAY,TRIM1#

sub55539-20020¥460

main55539-20020-E2iHZJ73,77..ATM..LX199501-199908

OAK,TRIM4#

sub55539-20020¥460

58572ACUSHION, CONSOLE BOX

main58872-60010iKZJ7#..EX,SX;HZJ73,77..ATM;HZJ73,77..MTM..ZX¥230199001-200408

58805DCOVER SUB-ASSY, TRANSFER LEVER HOLE

main58805-60010iHZJ7#,LJ7#..MTM..(EX,EX5,SX5,ZX)¥3,330199001-199110

sub58805-60011¥3,280

main58805-60011iHZJ7#,LJ7#..MTM..(EX,EX5,SX5,ZX)¥3,280199110-199208

sub58805-60012¥3,310

main58805-60012-B0iHZJ73,77,LJ7#..MTM..(EX,SX5,ZX)199208-199908

BLUISH GRAY,TRIM1#

sub58805-60012¥3,310

main58805-60012-E0iKZJ7#..MTM..(EX,SX)199208-199501

SABLE,TRIM4#

sub58805-60012¥3,310

main58805-60012-E1iKZJ7#..MTM..(EX,SX)199501-199604

OAK,TRIM4#

sub58805-60012¥3,310

main58805-60030iHZJ7#,LJ7#..ATM¥3,280199001-199208

sub58805-60031¥3,500

main58805-60031-B0iHZJ74,76..ATM199208-200404

BLUISH GRAY,TRIM1#

sub58805-60031¥3,500

main58805-60031-E0iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199208-199501

SABLE,TRIM4#

sub58805-60031¥3,500

main58805-60031-E1iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58805-60031¥3,500

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60040iHZJ7#,LJ7#..MTM..(EX,EX5,SX5,ZX)¥3,520199001-199110

sub58808-60041¥3,470

main58808-60041iHZJ7#,LJ7#..MTM..(EX,EX5,SX5,ZX)¥3,470199110-199208

sub58808-60042¥3,500

main58808-60042-B0iHZJ73,77,KZJ7#..MTM..(EX,SX,ZX)199208-199908

BLUISH GRAY,TRIM1#

sub58808-60042¥3,500

main58808-60042-E0iKZJ7#..MTM..(EX,SX)199208-199501

SABLE,TRIM4#

sub58808-60042¥3,500

main58808-60042-E1iKZJ7#..MTM..(EX,SX)199501-199604

OAK,TRIM4#

sub58808-60042¥3,500

58811ABOX, CONSOLE, FRONT

main58811-60050-03iKZJ7#..MTM..(EX,SX)199004-199604

BLUISH GRAY,TRIM1#

sub58811-60050¥18,000

main58811-60050-06iKZJ7#..MTM..(EX,SX)199004-199501

SABLE,TRIM4#

sub58811-60050¥18,000

main58811-60050-E0iKZJ7#..MTM..(EX,SX)199501-199604

OAK,TRIM4#

sub58811-60050¥18,000

main58811-60070-03iHZJ73,77,KZJ7#..ATM199001-199908

BLUISH GRAY,TRIM1#

sub58811-60070¥15,500

main58811-60070-06iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199004-199501

SABLE,TRIM4#

sub58811-60070¥15,500

main58811-60070-E0iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58811-60070¥15,500

main58811-60080-03iHZJ73,77..MTM..ZX199001-199908

BLUISH GRAY,TRIM1#

main58811-60080-06iHZJ77..MTM199004-199208

SABLE,TRIM4#

main58811-60200-B0iHZJ74,76..ATM199908-200408

BLUISH GRAY,TRIM1#

58821CPANEL, CONSOLE, UPPER

main58821-60010-03iHZJ73,77,KZJ7#..ATM199001-199908

BLUISH GRAY,TRIM1#

sub58821-60010¥8,500

main58821-60010-06iLJ7#..ATM199004-199501

SABLE,TRIM4#

sub58821-60010¥8,500

main58821-60010-B0iHZJ74,76..ATM199908-200408

BLUISH GRAY,TRIM1#

sub58821-60010¥8,500

main58821-60010-E0iHZJ73,77,KZJ7#..ATM..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58821-60010¥8,500

58825APOCKET, CONSOLE BOX

main58825-60020-03iKZJ7#..EX,SX;HZJ73,77..ATM;HZJ73,77..MTM..ZX199001-199908

BLUISH GRAY,TRIM1#

sub58825-60020¥4,050

main58825-60020-06iKZJ7#..EX,SX;HZJ73,77..ATM..LX199004-199501

SABLE,TRIM4#

sub58825-60020¥4,050

main58825-60020-B0iHZJ74,76..ATM199908-200408

BLUISH GRAY,TRIM1#

sub58825-60020¥4,050

main58825-60020-E0iKZJ7#..EX,SX;HZJ73,77..ATM..LX199501-199908

OAK,TRIM4#

sub58825-60020¥4,050

58865ALENS, FRONT CONSOLE BOX, NO.1

main58865-90K00iHZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM¥580199001-200408

58866ALENS, FRONT CONSOLE BOX, NO.2

main58866-90K00iHZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM¥360199001-200408

58871CUSHION, CONSOLE BOX

main58871-60010iHZJ74,76..ATM;HZJ73,77,LJ7#..EX,EX5,SX5,ZX¥180199001-200408

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-60110-B1iHZJ79199911-200408

LT.GRAY,TRIM1#

main58911-90K00-13iHZJ73,77,LJ7#,PZJ7#199001-199908

BLUISH GRAY,TRIM1#

sub58911-90K00¥17,400

main58911-90K00-16iHZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX)199001-199501

SABLE,TRIM4#

sub58911-90K00¥17,400

main58911-90K00-B0iHZJ71,74,76199908-200408

BLUISH GRAY,TRIM1#

sub58911-90K00¥17,400

main58911-90K00-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58911-90K00¥17,400

main58911-90K01-13iHZJ70..SOT199001-199908

sub58911-90K01¥17,400

main58911-90K01-13iHZJ73,PZJ7#..(STD,ZX)..4NO199305-199401

BLUISH GRAY,TRIM1#

sub58911-90K01¥17,400

main58911-90K01-16iHZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX)199001-199501

sub58911-90K01¥17,400

main58911-90K01-B0iHZJ71,74,76199908-200408

sub58911-90K01¥17,400

main58911-90K01-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

sub58911-90K01¥17,400

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-90K00-13iHZJ70,73,77,KZJ7#,PZJ7#199001-199908

BLUISH GRAY,TRIM1#

sub58951-90K00¥4,700

main58951-90K00-16iLJ7#,PZJ7#..EX,LX,LX5,SX5199001-199501

SABLE,TRIM4#

sub58951-90K00¥4,700

main58951-90K00-B0iHZJ71,74,76199908-200408

BLUISH GRAY,TRIM1#

sub58951-90K00¥4,700

main58951-90K00-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58951-90K00¥4,700

58912BOX, REAR CONSOLE, NO.2

main58912-90K00-13iHZJ70,73,77,KZJ7#,PZJ7#199001-199908

BLUISH GRAY,TRIM1#

sub58912-90K00¥1,740

main58912-90K00-16iLJ7#,PZJ7#..EX,LX,LX5,SX5199001-199501

SABLE,TRIM4#

sub58912-90K00¥1,740

main58912-90K00-B0iHZJ71,74,76199908-200408

BLUISH GRAY,TRIM1#

sub58912-90K00¥1,740

main58912-90K00-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58912-90K00¥1,740

58915PANEL, BOX BOTTOM

main58915-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥1,630199001-200408

58923APANEL, CONSOLE REAR END

main58923-90K00-13iHZJ73,77,LJ7#,PZJ7#199001-199908

BLUISH GRAY,TRIM1#

sub58923-90K00¥1,870

main58923-90K00-16iLJ7#,PZJ7#..EX,LX,LX5,SX5199001-199501

SABLE,TRIM4#

sub58923-90K00¥1,870

main58923-90K00-B0iHZJ71,74,76199908-200408

BLUISH GRAY,TRIM1#

sub58923-90K00¥1,870

main58923-90K00-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58923-90K00¥1,870

58944ACOVER, CONSOLE, REAR

main58944-90K00-13iHZJ73,77,LJ7#,PZJ7#199001-199908

BLUISH GRAY,TRIM1#

sub58944-90K00¥940

main58944-90K00-16iHZJ77,LJ7#,PZJ7#199001-199501

SABLE,TRIM4#

sub58944-90K00¥940

main58944-90K00-B0iHZJ71,74,76199908-200408

BLUISH GRAY,TRIM1#

sub58944-90K00¥940

main58944-90K00-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

OAK,TRIM4#

sub58944-90K00¥940

main58944-90K01-13iHZJ73,77,LJ7#,PZJ7#199001-199908

sub58944-90K01¥940

main58944-90K01-16iLJ7#,PZJ7#..EX,LX,LX5,SX5199001-199501

sub58944-90K01¥940

main58944-90K01-B0iHZJ71,74,76199908-200408

sub58944-90K01¥940

main58944-90K01-E0iHZJ70,73,77,KZJ7#..(HT,WG)..(EX,LX,SX)199501-199908

sub58944-90K01¥940

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥100199001-200408

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥390199001-200408

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58964-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥390199001-200408

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-89101iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥490199001-200408

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥1,540199001-200408

sub58908-12080¥970

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#¥720199001-200408

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-90K00iFJ75,HZJ7#,LJ7#,PZJ7#¥630199001-200408

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-90K00iFJ75,HZJ7#,LJ7#,PZJ7#¥1,130199001-200408

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-90K00iFJ75,HZJ7#,LJ7#,PZJ7#¥1,030199001-200408

9015950002

main90159-50002¥70

9018303092

main90183-03092¥130

9018305094

main90183-05094¥90

9165140616

main91651-40616¥60

9356055016

main93560-55016¥70

9356854512

main93568-54512¥70

9616000500

main96160-00500¥100

33 parts on this diagram · 2 diagrams in section
