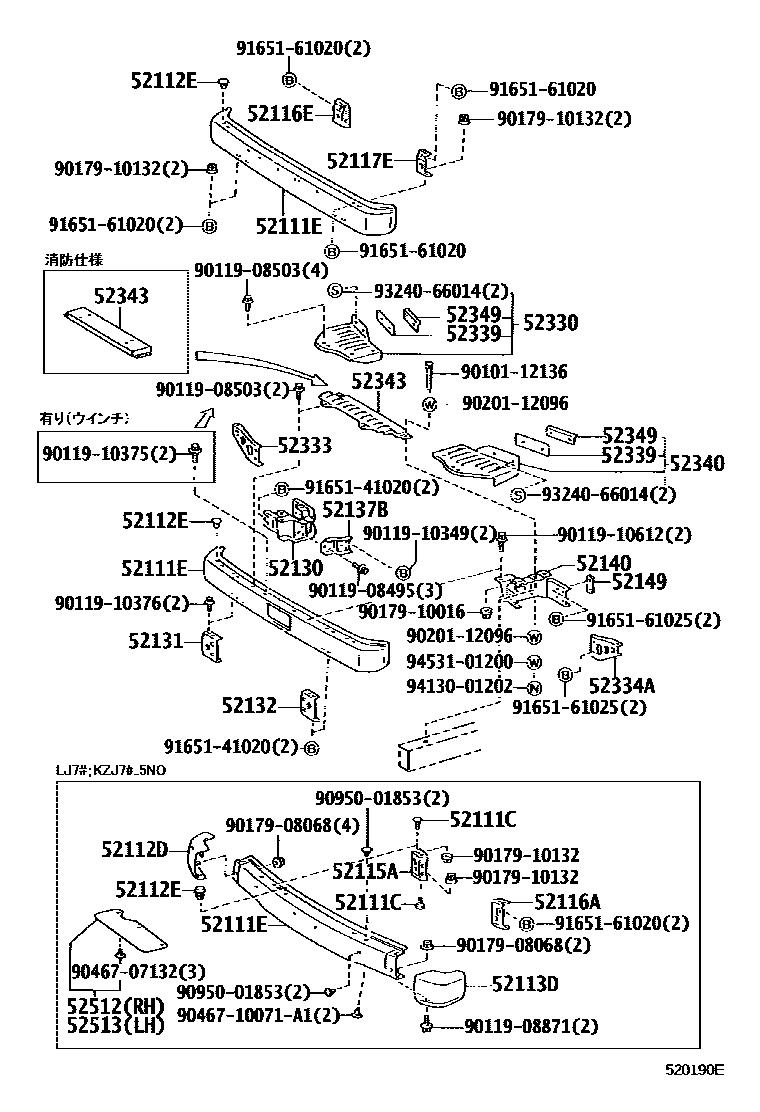

FRONT BUMPER & BUMPER STAY

0001 1 0005 1 0007 1 0008 1

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-10021iKZJ7#199004-199604

main90112-10026iKZJ78..SX..3NO199512-199604

52111EBAR, FRONT BUMPER

main52101-60090iPZJ7#..STD..4NO199001-199108

main52101-60100iPZJ7#..LX..4NO199001-199108

main52101-60110iPZJ70..STD199001-199401

main52101-60110iPZJ77..STD..1NO199004-199208

main52101-60120iHZJ73..ATM;HZJ77,PZJ70..LX,ZX199001-199908

main52101-60120iHZJ71,74;HZJ76..1NO199908-200408

main52101-60130iFJ75199006-199108

sub52101-60131

main52101-60131iHZJ75,PZJ7#..STD199108-200408

main52101-60140iHZJ7#199001-199108

sub52101-60141

main52101-60141iHZJ73,76,77..ZX;HZJ76,PZJ77..LX..4NO;HZJ71,74,PZJ70..LX,ZX199108-200408

main52111-60320iLJ7#199004-199305

sub52111-60460

sub90950-01853

main52111-60340iLJ7#199004-199305

sub52111-60500

sub90950-01853

main52111-60460iKZJ7#199305-199604

main52111-60500iKZJ7#199305-199604

main52111-60630iKZJ78..SX..3NO199512-199604

52112DEXTENSION, FRONT BUMPER, RH

main52102-60060iLJ7#199004-199604

main52102-60140iKZJ7#..SX..3NO199305-199604

main52102-60150-B0iKZJ7#..3NO199305-199501

DK BLUISH GRAY M,26P ,26W

main52102-60150-B1iKZJ78..SX..3NO199409-199412

main52102-60150-B1iKZJ78..SX..3NO199310-199403

main52102-60150-B1iKZJ7#..3NO199305-199501

BLUISH SILVER M,24V

main52102-60150-B3iKZJ78..SX..3NO199512-199604

main52102-60150-E0iKZJ7#..3NO199501-199604

FLAXEN M M,25Z ,26Z ,27Z

main52102-60170iKZJ78..SX..3NO199404-199407

sub52102-60140

main52102-60230iKZJ78..SX..3NO199504-199509

sub52102-60140

52112EPLUG, HOLE(FOR FRONT BUMPER EXTENSION)

main90950-01608iHZJ73..ATM..LX;HZJ70,PZJ70..LX..S199001-199908

main90950-01608iHZJ71,74,76,LJ7#,PZJ7#..(EX,EX5,LX,LX5,SX5)..(3NO,4NO,5NO)199108

main90950-01608iKZJ7#199305-199604

main90950-01608iHZJ70,73..4NO199608-200408

main90950-01891iKZJ78..SX..3NO199512-199604

52113DEXTENSION, FRONT BUMPER, LH

main52103-60060iLJ7#199004-199604

main52103-60140iKZJ7#..SX..3NO199305-199604

main52103-60150-B0iKZJ7#..3NO199305-199501

DK BLUISH GRAY M,26P ,26W

main52103-60150-B1iKZJ7#..3NO199305-199501

BLUISH SILVER M,24V

main52103-60150-B1iKZJ78..SX..3NO199310-199403

main52103-60150-B1iKZJ78..SX..3NO199409-199412

main52103-60150-B3iKZJ78..SX..3NO199512-199604

main52103-60150-E0iKZJ7#..3NO199501-199604

FLAXEN M M,25Z ,26Z ,27Z

main52103-60170iKZJ78..SX..3NO199404-199407

sub52103-60140

main52103-60230iKZJ78..SX..3NO199504-199509

sub52103-60140

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60020iKZJ7#..5NO199004-199604

main52115-60030iLJ7#..LX5199208-199302

sub52115-60031

main52115-60030iLJ7#..EX,SX5199004-199302

sub52115-60031

main52115-60031iLJ7#..LX5199302-199305

sub52115-60032

main52115-60031iLJ7#..EX,SX5199302-199305

sub52115-60032

main52115-60032iKZJ7#..SX..5NO199305-199604

main52115-60032iKZJ7#..3NO199305-199604

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60050iKZJ7#..5NO199004-199604

main52116-60060iLJ7#..EX,SX5199004-199302

sub52116-60061

main52116-60060iLJ7#..EX,SX5199208-199302

sub52116-60061

main52116-60061iLJ7#..LX5199302-199305

sub52116-60062

main52116-60061iLJ7#..EX,SX5199302-199305

sub52116-60062

main52116-60062iKZJ7#..LX199305-199604

main52116-60062iKZJ7#..3NO199305-199604

52116EGUSSET, FRONT BUMPER, UPPER RH

main52116-60020iPZJ70199001-199108

52117EGUSSET, FRONT BUMPER, UPPER LH

main52117-60010iPZJ7#..4NO199001-199108

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-60050iPZJ70199108-199210

sub52130-60051

main52130-60050iPZJ77..1NO;FJ75,HZJ7#,PZJ70199001-199108

sub52130-60051

main52130-60051iHZJ70..S;HZJ73..ATM..4NO199210-199908

sub52130-60100

main52130-60051iHZJ73..ATM..ZX;HZJ77,PZJ77..1NO;HZJ70,73,75..MTM..U199305-199608

sub52130-60100

main52130-60060iFJ75,HZJ75,79199006-200408

main52130-60080iPZJ7#..4NO199108-199908

main52130-60090iHZJ71,74,76..4NO199908-200408

main52130-60100iHZJ71,74;HZJ76..1NO199908-200408

main52130-60100iHZJ79199911-200408

52131RETAINER, FRONT BUMPER SIDE, RH

main52131-60050iFJ75,HZJ7#,PZJ7#199001-199908

main52131-60110iHZJ7#199908-200408

52132RETAINER, FRONT BUMPER SIDE, LH

main52132-60030iPZJ77..1NO;FJ75,HZJ7#,PZJ70199001-199908

main52132-60080iHZJ7#199908-200408

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52137-90K00iHZJ73,77..ZX;HZJ76,PZJ77..1NO;FJ75,HZJ71,74,75,79,PZJ70199001-200408

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-60050iFJ75,HZJ7#;PZJ77..1NO199108-199908

sub52140-60100

main52140-60050iPZJ77..1NO;FJ75,HZJ7#,PZJ70199001-199608

sub52140-60100

main52140-60060iFJ75,HZJ75,79199006-200408

main52140-60080iHZJ70,73,77..4NO199108-199908

main52140-60090iHZJ71,74,76..4NO199908-200408

main52140-60100iHZJ79199911-200408

main52140-60100iHZJ71,74;HZJ76..1NO199908-200408

52149BRACKET, FRONT BUMPER, INNER

main52149-60010iPZJ70;HZJ73..U;HZJ77,PZJ77..1NO;HZJ70,75..HT,PIC199001-200408

52330STEP ASSY, FRONT BUMPER SIDE, RH

main52330-60010iHZJ73..U;HZJ70,75,PZJ70;HZJ77,PZJ77..1NO199001-200408

main52330-60030iHZJ75199006-200408

52333BRACKET, FRONT BUMPER STEP MOUNTING, RH

main52333-90K00iHZJ76..1NO;HZJ71,74,79199001-200408

52334ABRACKET, FRONT BUMPER STEP MOUNTING, LH

main52334-90K00iHZJ76..1NO;HZJ71,74,79199001-200408

52339SEAL, FRONT BUMPER STEP

main52339-60010iHZJ76..1NO;HZJ71,74,79199001-200408

main52339-90K00iHZJ75199001-200408

main52339-90K00iHZJ75199006-199908

main52339-90K00iHZJ79199911-200408

52340STEP ASSY, FRONT BUMPER SIDE, LH

main52340-60010iHZJ73..U;HZJ70,75,PZJ70;HZJ77,PZJ77..1NO199001-200408

main52340-60030iHZJ75199006-200408

52343STEP, FRONT BUMPER, CENTER

main52343-60010iHZJ73,74,76,77..ZX199001-200408

main52343-60020iHZJ79199006-200408

main52343-60030iHZJ79199006-200408

52349RETAINER, FRONT BUMPER STEP SEAL

main52349-90K00iHZJ73..U;HZJ70,75,PZJ70;HZJ77,PZJ77..1NO199001-200408

52512FILLER, FRONT BUMPER, RH

main52502-60010iKZJ7#..5NO199305-199604

52513FILLER, FRONT BUMPER, LH

main52503-60010iKZJ7#..5NO199305-199604

9010112136

main90101-12136

9011908495

main90119-08495

9011908503

main90119-08503

9011908871

main90119-08871

9011910349

main90119-10349

9011910375

main90119-10375

9011910376

main90119-10376

9011910612

main90119-10612

9017908068

main90179-08068

9017910016

main90179-10016

9017910132

main90179-10132

9020112096

main90201-12096

9046707132

main90467-07132

9046710071A1

main90467-10071A1

9095001853

main90950-01853

9165141020

main91651-41020

9165161020

main91651-61020

9165161025

main91651-61025

9324066014

main93240-66014

9413001202

main94130-01202

9453101200

main94531-01200

45 parts on this diagram · 4 diagrams in section
