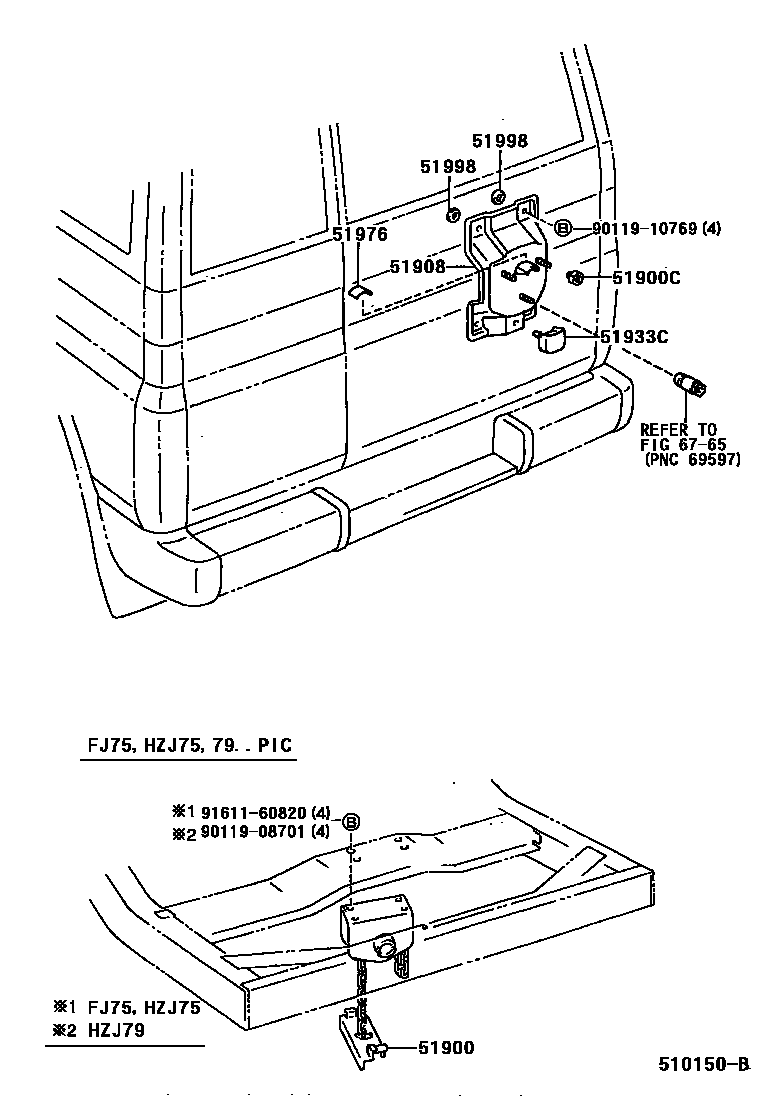

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-60090iFJ75,HZJ75,79199006-200109

main51900-60270iHZJ79200109-200408

51900CNUT, SPARE WHEEL, HUB

main90942-01007iHZJ70,73,77,KZJ7#,PZJ7#..LX,STD199001-199908

main90942-01007iLJ7#..SX5199004-199108

main90942-01081iHZJ77..4NO;HZJ77..MTM..LX..1NO199401-199908

main90942-01081iHZJ73,77,LJ7#..EX,EX5,SX5,ZX199001-199908

main90942-01101iHZJ71,74,76..LX199908-200408

main90942-01103iHZJ74,76..ZX199908-200408

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-60070iHZJ73,KZJ7#..(SX,ZX)..(4NO,5NO)199305-199908

main51908-60140iHZJ71,74,76199908-200408

sub51908-60160

main51908-90K05iHZJ73,77,KZJ7#..(EX,SX,ZX)..(1NO,3NO)199001-199608

sub51908-60070

51933CSTOPPER, SPARE WHEEL

main51933-90K01iHZJ74,76..ZX199001-200408

51976FILM, SPARE WHEEL CARRIER, NO.2

main51976-60020iHZJ70,73,77199608-200408

51998PAD, SPARE WHEEL BRACKET

main51998-90K01iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

6765

9011908701

main90119-08701

9011910769

main90119-10769

9161160820

main91611-60820

10 parts on this diagram · 1 diagram in section
