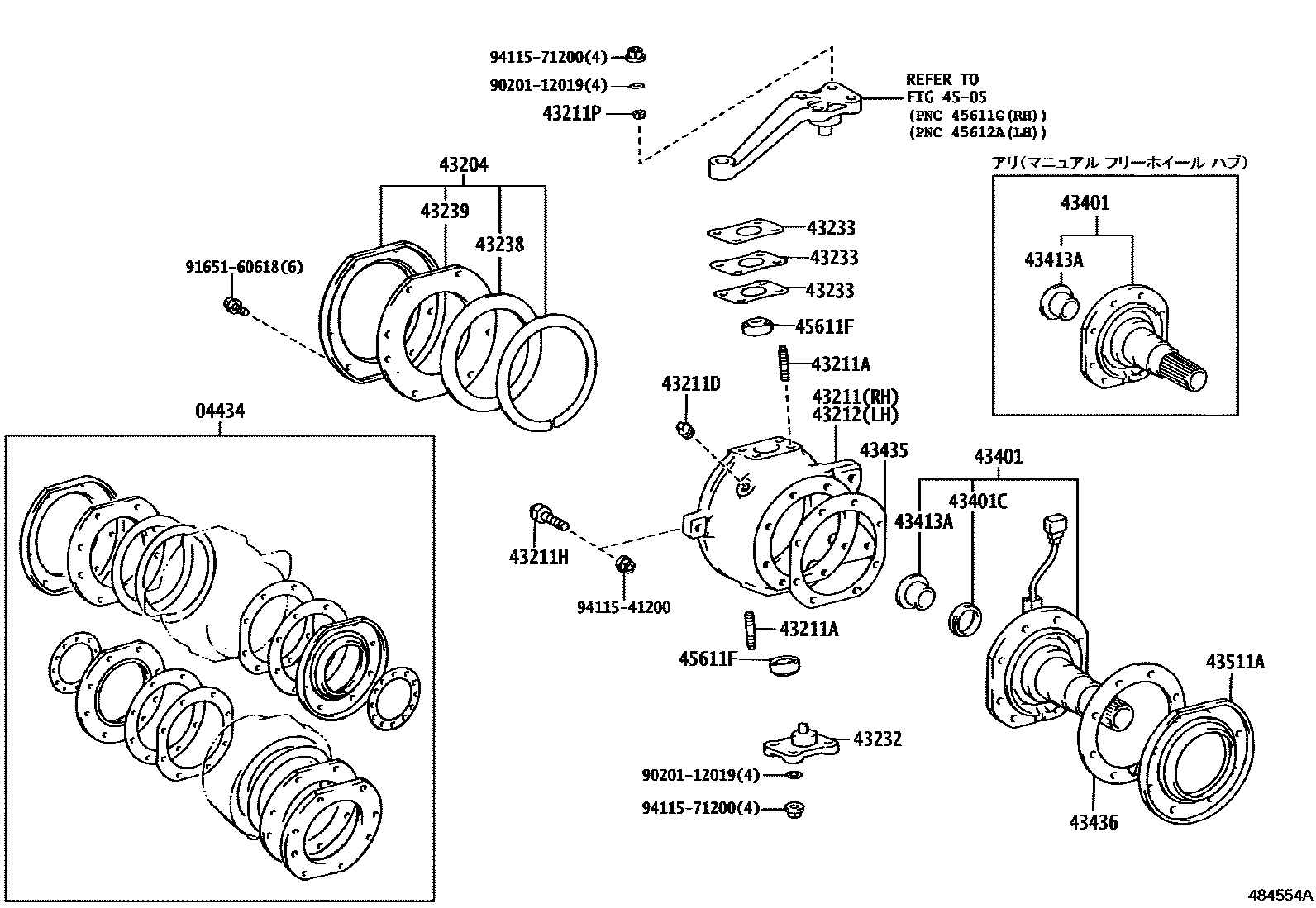

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1

04434GASKET KIT, FRONT AXLE OVERHAUL

main04434-60030iHZJ73,PZJ7#..LX,ZX199001-199205

sub04434-60031

main04434-60031iHZJ73,PZJ7#..LX,ZX199205-199908

main04434-60031iPZJ7#..STD;HZJ70,75..PIC,SOT199305-199501

main04434-60060iHZJ70..SOT199401-199501

main04434-60060iHZJ73,77,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-199908

main04434-60070iHZJ7#199908-200408

sub04434-60080

sub04434-60090

43204SEAL SUB-ASSY, STEERING KNUCKLE OIL

main43204-60031iHZJ7#199908-200408

sub43204-60032

main43204-60040iFJ75,HZJ7#,LJ7#,PZJ7#199001-199205

sub43204-60041

main43204-60041iHZJ7#,KZJ7#,PZJ7#199205-199908

43211KNUCKLE, STEERING, RH

main43211-60090iHZJ73,PZJ7#..LX,ZX199001-199908

main43211-60090iPZJ7#..STD;HZJ70,75..PIC,SOT199305-199501

main43211-60100iHZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX,ZX)199001-199908

main43211-60100iHZJ70..SOT199401-199501

main43211-60110iHZJ7#199908-200408

sub43211-60111

sub96711-24037

43211ABOLT, STUD (FOR STEERING SET)

main90116-12007iFJ75,HZJ7#,LJ7#,PZJ7#199001-200008

sub90126-12005

main90126-12005iHZJ7#200008-200408

sub90126-12010

sub90170-12021

43211DPLUG (FOR STEERING KNUCKLE)

main90345-53020iHZJ7#199001-200408

43211HBOLT, ROUND HEXAGON

main90106-12005iHZJ73,PZJ70199001-199908

43211PWASHER, CONE (FOR STEERING KNUCKLE)

main42323-60020iHZJ73,PZJ70199001-199908

43212KNUCKLE, STEERING, LH

main43212-60090iHZJ75199001-199908

main43212-60090iPZJ7#..STD;HZJ70,75..PIC,SOT199305-199501

main43212-60100iHZJ70,73,77,KZJ7#199001-199908

main43212-60100iHZJ70..SOT199401-199501

main43212-60110iHZJ7#199908-200408

sub43212-60111

sub96711-24037

43232CAP, STEERING KNUCKLE BEARING

main43232-35010iHZJ7#,PZJ7#199001-199908

main43232-60030iHZJ7#199908-200211

sub43232-60031

main43232-60031iHZJ7#200211-200408

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main43233-60011iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

main43233-60030iHZJ7#199908-200408

main43234-60011iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

main43234-60020iHZJ7#199908-200408

main43235-60010iHZJ7#,KZJ7#,PZJ7#199001-199908

main43235-60020iHZJ7#199908-200408

main43236-60010iHZJ7#,KZJ7#,PZJ7#199001-199908

main43236-60020iHZJ7#199908-200408

main43237-60030iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

43238SEAL, STEERING KNUCKLE OIL, INNER

main43238-60021iHZJ7#199908-200408

main43238-60030iFJ75,HZJ7#,LJ7#,PZJ7#199001-199205

sub43238-60031

main43238-60031iFJ75,HZJ7#,LJ7#,PZJ7#199205-199908

43239SEAL, STEERING KNUCKLE OIL, OUTER

main43239-60030iHZJ7#199908-200408

main43239-60040iHZJ73,PZJ70199001-199004

sub43239-60041

main43239-60041iFJ75,HZJ7#,LJ7#,PZJ7#199004-199908

43401SPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-60060iFJ75,HZJ75,PZJ7#..STD199001-199908

main43401-60060iPZJ7#..STD;HZJ70,75..PIC,SOT199305-199501

main43401-60080iHZJ7#199908-200408

sub43401-60081

main43401-60090iHZJ71,74,76199908-200408

*DMALH

sub43401-60091

main43490-60030iHZJ70,73,77,KZJ7#199001-199908

main43490-60030iHZJ70..SOT199401-199501

43401CSEAL, TYPE S OIL(FOR STEERING KNUCKLE SPINDLE)

main90310-33001iHZJ73,77,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-199908

43413ABUSH, SOLID (FOR DRIVE SHAFT)

main90381-33002iHZJ73,PZJ70199001-199908

43435GASKET, KNUCKLE SPINDLE

main43435-60011iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

main43435-60020iHZJ7#199908-200408

43436GASKET, KNUCKLE SPINDLE OIL RETAINER

main43436-60011iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001-200408

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90313-93003iHZJ7#199908-200408

main90313-93011iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

4505

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90366-17007iFJ75,HZJ7#,LJ7#,PZJ7#199001-199908

main90366-20003iHZJ7#199908-200408

9020112019

main90201-12019

9165160618

main91651-60618

9411541200

main94115-41200

9411571200

main94115-71200

24 parts on this diagram · 4 diagrams in section
