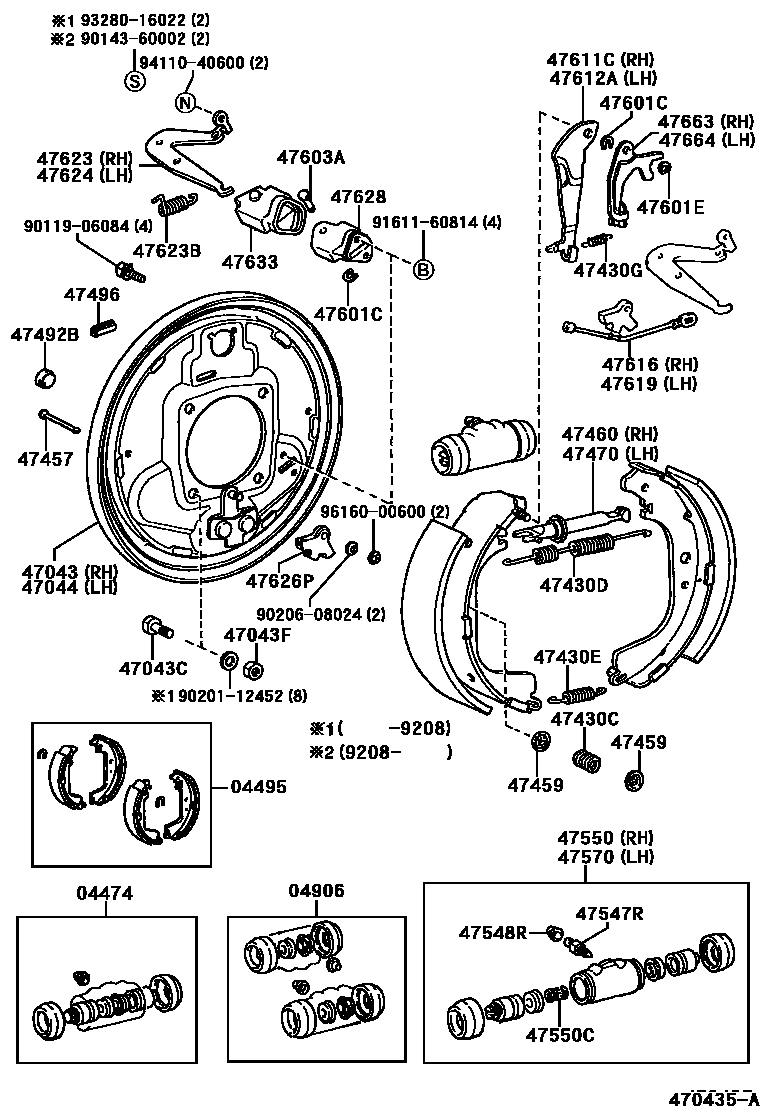

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-35100iHZJ7#..LX,STD199511-200408

main04474-60010iHZJ7#,PZJ7#..LX,STD199001-199511

sub04474-35100

sub90029-60009

04495SHOE KIT, REAR BRAKE

main04495-60060iFJ75,HZJ75,PZJ7#199001-199908

sub04495-60070

main04495-60070iHZJ7#..LX,STD199908-200408

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35130iHZJ7#..LX,STD199511-200408

main04906-60050iHZJ7#,PZJ7#..LX,STD199001-199511

sub04906-35130

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-60090iFJ75,PZJ7#199001-199208

main47043-60110iHZJ75,PZJ7#199208-199908

main47043-60130iHZJ7#..LX,STD199908-200408

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-12021iFJ75,PZJ7#199001-199101

sub90101-12175

main90101-12175iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199101-200408

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-12119iHZJ71,74,75,76,79,PZJ7#..LX,STD199208-200408

main94115-71200iFJ75,PZJ7#199001-199208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-60040iFJ75,PZJ7#199001-199208

main47044-60060iHZJ7#,PZJ7#..LX,STD199208-199908

main47044-60080iHZJ7#..LX,STD199908-200408

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iPZJ70199001-199908

main90506-26014iFJ75,HZJ75,PZJ7#199001-199908

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iPZJ70199001-199908

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-60011iPZJ70199001-199908

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iHZJ71,74,75,76,79,PZJ7#..LX,STD199208-200408

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iHZJ7#..LX,STD199001-200408

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-60120iHZJ7#,PZJ7#..LX,STD199001-200408

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-60010iHZJ7#..LX,STD199001-199511

main90029-60009iHZJ7#..LX,STD199511-200408

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-60120iHZJ7#,PZJ7#..LX,STD199001-200408

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iFJ75,HZJ75,PZJ7#199001-199908

main90213-07010iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47601ERING, E(FOR REAR BRAKE)

main96160-00500iHZJ7#..LX,STD199001-200408

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-35040iHZJ7#..(LX,STD)..U199305-200408

main47611-60010iFJ75,HZJ75,PZJ7#199001-199305

sub47611-35040

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-35040iPZJ7#199305-200408

main47612-60010iFJ75,HZJ75,PZJ7#199001-199305

sub47612-35040

47616WIRE, PARKING BRAKE, RH

main47616-35030iHZJ7#..LX,STD199908-200408

main47616-60010iFJ75,HZJ75,PZJ7#199001-199908

47619WIRE, PARKING BRAKE, LH

main47616-35030iHZJ7#..LX,STD199908-200408

main47616-60010iFJ75,HZJ75,PZJ7#199001-199908

47623CRANK, PARKING BRAKE BELL, NO.1

main47624-60010iPZJ70199001-199908

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033iHZJ7#,PZJ7#..LX,STD199001-200408

47624CRANK, PARKING BRAKE BELL, NO.2

main47625-60010iPZJ70199001-199908

47626PPULLEY, PARKING BRAKE SEGMENTAL

main47626-60010iFJ75,HZJ75,PZJ7#199001-199908

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47633BOOT, PARKING BRAKE BELLCRANK

main47633-35020iPZJ70199001-199908

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-60010iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-60010iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001-200408

9011906084

main90119-06084

9014360002

main90143-60002

9020112452

main90201-12452

9020608024

main90206-08024

9161160814

main91611-60814

9328016022

main93280-16022

9411040600

main94110-40600

9616000600

main96160-00600
