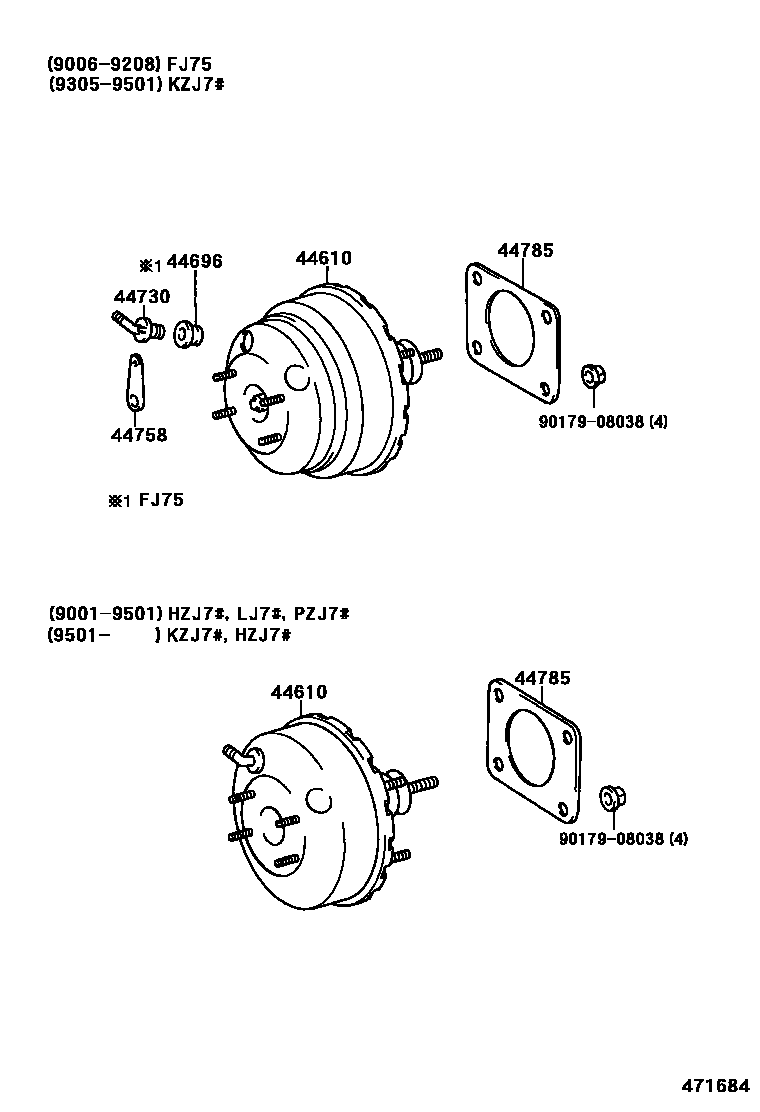

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44610BOOSTER ASSY, BRAKE

main44610-60460iHZJ70,73,77,PZJ7#¥46,000199001-199908

main44610-60680iFJ75¥63,500199006-199208

main44610-60830iHZJ75¥45,300199212-199908

main44610-60850iKZJ7#¥62,000199305-199604

main44610-6A140iHZJ7#¥45,600199908-200408

44696GROMMET, CHECK VALVE

main90480-24439iFJ75¥390199006-199208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main31040-36010iHZJ7#..MTM¥3,820199908-200408

main44730-20060iFJ75¥2,920199006-199208

main44730-60040iHZJ7#,KZJ7#,PZJ7#¥5,500199001-199908

main44730-60050iHZJ74,76..ATM¥1,360199908-200408

44758BRACKET, VACUUM CHECK VALVE

main44758-28020iFJ75¥200199006-199208

44785GASKET, BRAKE BOOSTER

main44785-35020iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#¥170199001-200201

main44785-35030iHZJ7#¥230200202-200408

9017908038

main90179-08038¥130

6 parts on this diagram · 7 diagrams in section
