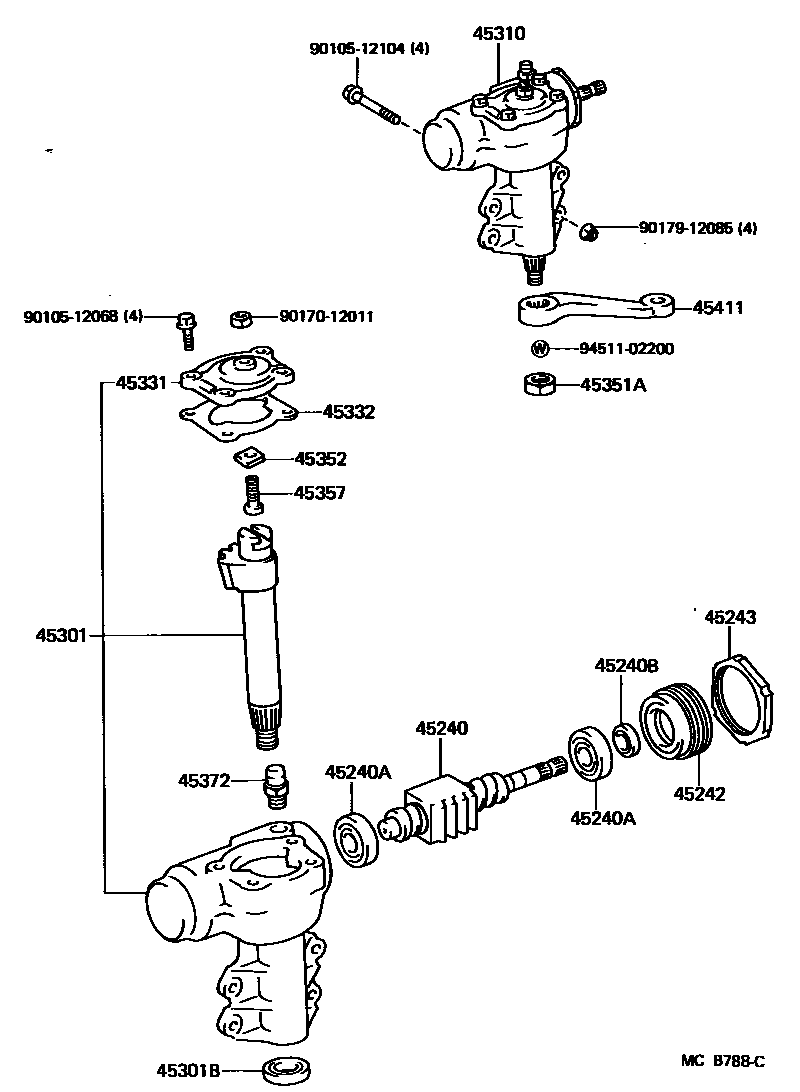

FRONT STEERING GEAR & LINK

0001 1MANUAL STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1 0007 1 0009 1

45240WORM ASSY, STEERING

main45240-60060iFJ75,HZJ75199006-199305

45240ABEARING(FOR STEERING WORM)

main90363-20024×2iFJ75,HZJ75199006-199305

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iFJ75,HZJ75199006-199305

45242SCREW, WORM BEARING ADJUSTING

main45242-60020iFJ75,HZJ75199006-199305

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-60020iFJ75,HZJ75199006-199305

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-60060iFJ75,HZJ75199006-199305

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36004iFJ75,HZJ75199006-199305

45310HOUSING ASSY, STEERING GEAR

main45310-60130iFJ75,HZJ75199006-199305

45331COVER, SECTOR SHAFT END

main45304-26010iHZJ75199305-199908

main45304-26020iHZJ75199305-199908

main45304-26030iFJ75,HZJ75199006-199305

main45304-26040iFJ75,HZJ75199006-199305

45332GASKET, SECTOR SHAFT END COVER

main45332-26010iHZJ75199305-199908

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iHZJ7#199908-200408

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iFJ75,HZJ75199006-199305

main45353-37010iHZJ75199305-199908

main45354-37010iFJ75,HZJ75199006-199305

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iHZJ75199305-199908

sub45357-37020

main45357-60030iHZJ7#199908-200408

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iHZJ75199305-199908

45411ARM, PITMAN

main45411-60110iFJ75,HZJ75199006-199305

9010512068

main90105-12068

9010512104

main90105-12104

9017012011

main90170-12011

9017912085

main90179-12085

9451102200

main94511-02200

20 parts on this diagram · 6 diagrams in section
