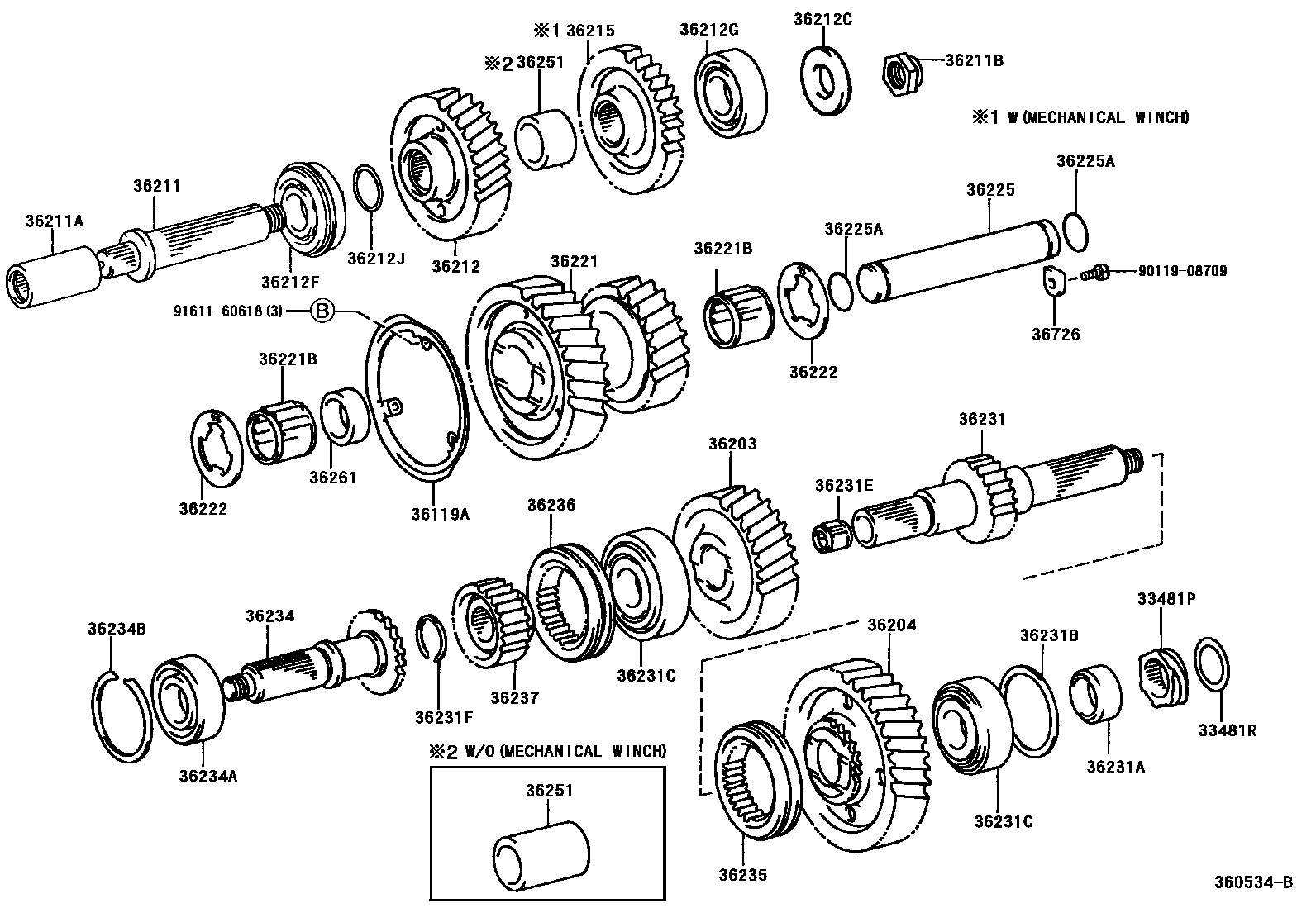

TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481RWASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)
36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36211SHAFT, TRANSFER INPUT
36211AYOKE, TRANSMISSION SLEEVE
36211BNUT (FOR TRANSFER INPUT SHAFT)
36212GEAR, TRANSFER INPUT
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36212GBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)
36212JRING, O (FOR TRANSFER INPUT GEAR)
36215GEAR, POWER TAKE-OFF DRIVE
36221BBEARING (FOR TRANSFER IDLER GEAR)
36222WASHER, TRANSFER IDLER GEAR SIDE THRUST
sub36222-60021
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
36261SPACER, TRANSFER IDLER GEAR
36726PLATE, LOCK (FOR TRANSFER GEAR)
9011908709
main90119-08709
9161160618
main91611-60618
36 parts on this diagram · 5 diagrams in section
