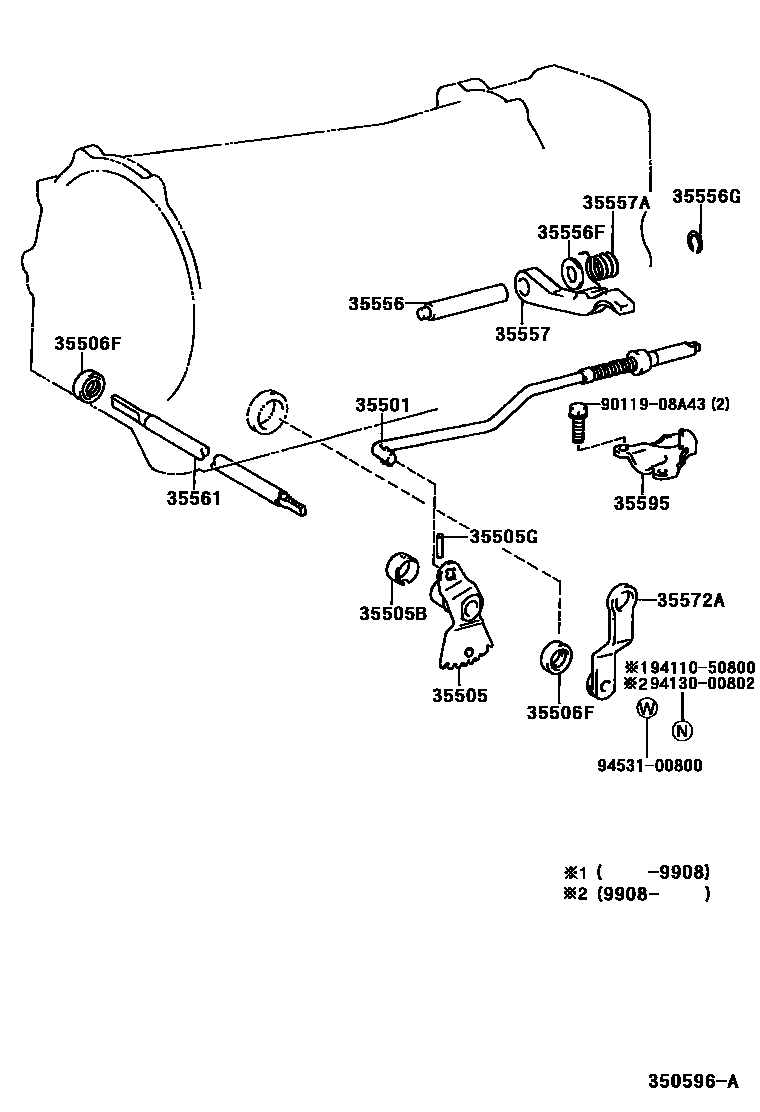

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A440F,A442F 0002 1A343F 0003 1A343F,A440F,A442F 0004 1A440F

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iLJ7#..ATM199004-199604

main35501-36010iHZJ73,77..ATM199001-200408

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30021iKZJ7#..ATM199004-199604

main35505-36030iHZJ73,77..ATM199208-199710

main35505-60010iHZJ7#..ATM199001-199208

main35505-60020iHZJ73,77..ATM199710-200408

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iLJ7#..ATM199004-199604

main90560-20008iHZJ74,76..ATM199001-200408

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iLJ7#..ATM199004-199604

main90254-04012iHZJ74,76..ATM199001-200408

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iHZJ73,77,KZJ7#..ATM199001-200408

35556SHAFT, PARKING LOCK PAWL

main35556-30020iKZJ7#..ATM199004-199604

main35556-36010iHZJ73,77..ATM199001-199305

main35556-60010iHZJ73,77..ATM199305-200408

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012iHZJ74,76..ATM199305-200408

35556GRING, SNAP (FOR PARKING LOCK PAWL SHAFT)

main96150-01600iHZJ73,77..ATM199001-200408

35557PAWL, PARKING LOCK

main35557-30020iKZJ7#..ATM199004-199604

main35557-36010iHZJ73,77..ATM199001-199908

main35557-60030iHZJ74,76..ATM199908-200408

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iKZJ7#..ATM199004-199604

main90508-30003iHZJ73,77..ATM199001-199305

sub90508-30010

main90508-30004iHZJ74,76..ATM199305-200408

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iKZJ7#..ATM199004-199604

main35561-60010iHZJ73,77..ATM199001-200408

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60070iHZJ74,76..ATM;HZJ73,77..ATM..ZX199001-200408

35595BRACKET, PARKING LOCK PAWL

main35595-30010iLJ7#..ATM199004-199604

main35595-36010iHZJ73,77..ATM199001-199908

main35595-60020iHZJ74,76..ATM199908-200408

9011908A43

main90119-08A43

9411050800

main94110-50800

9413000802

main94130-00802

9453100800

main94531-00800

17 parts on this diagram · 4 diagrams in section
