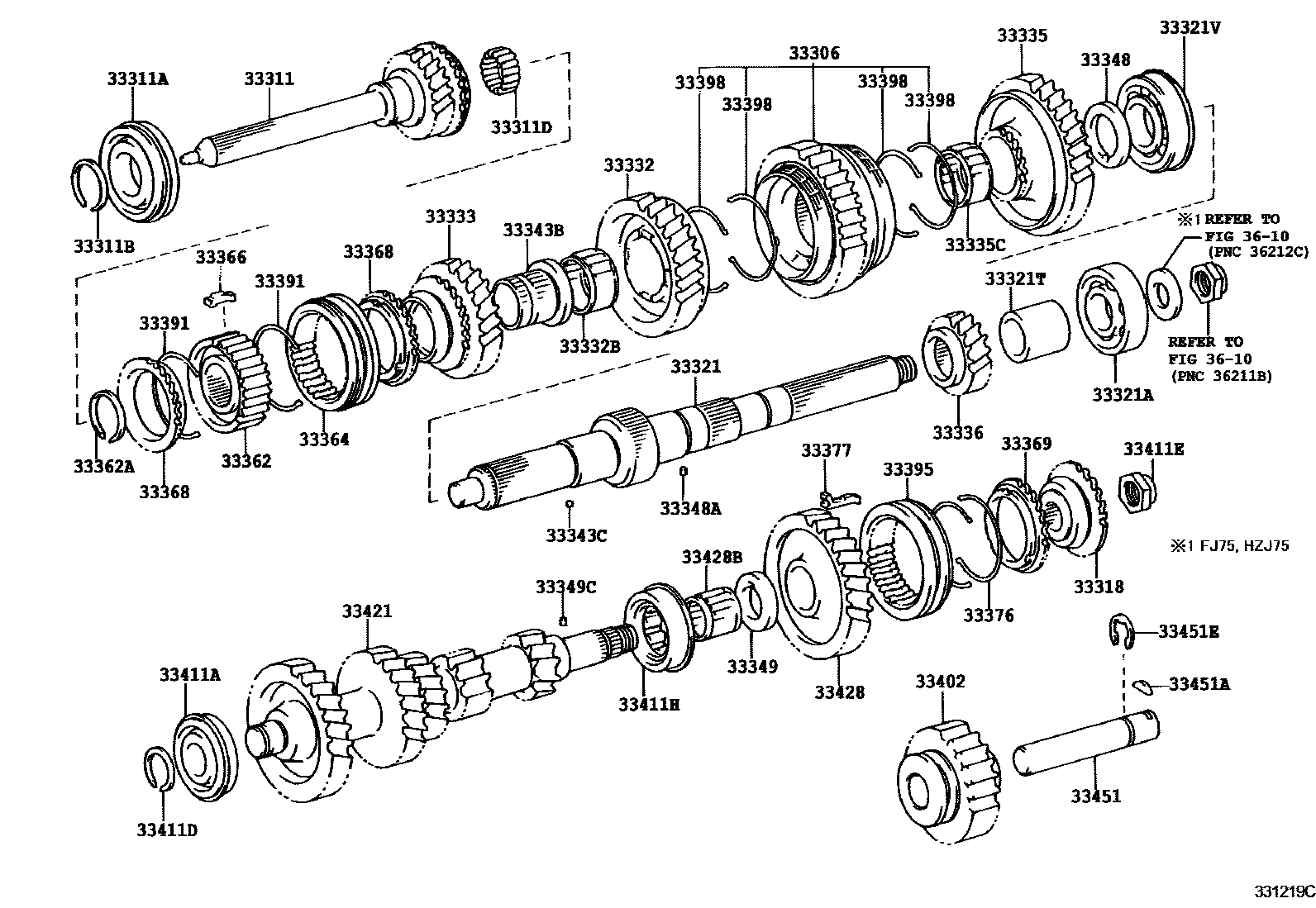

TRANSMISSION GEAR (MTM)
33306RING SUB-ASSY, SYNCHRONIZER, NO.1
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33318PIECE, GEAR SPLINE, NO.5
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321TSPACER (FOR OUTPUT SHAFT)
33343BBUSH, 3RD GEAR
33343CBALL (FOR 3RD GEAR BUSH)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
4TH GEAR SIDE
33369RING, SYNCHRONIZER, NO.3
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
33398HOLDER, SYNCHRONIZER RING
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411ENUT(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
sub33421-60150
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub33421-60160
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub33421-35130
sub33421-60161
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
sub33421-60162
sub33421-71010
33428GEAR, COUNTERSHAFT 5TH
sub33046-35052
sub33428-60031
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
3610
45 parts on this diagram · 3 diagrams in section
