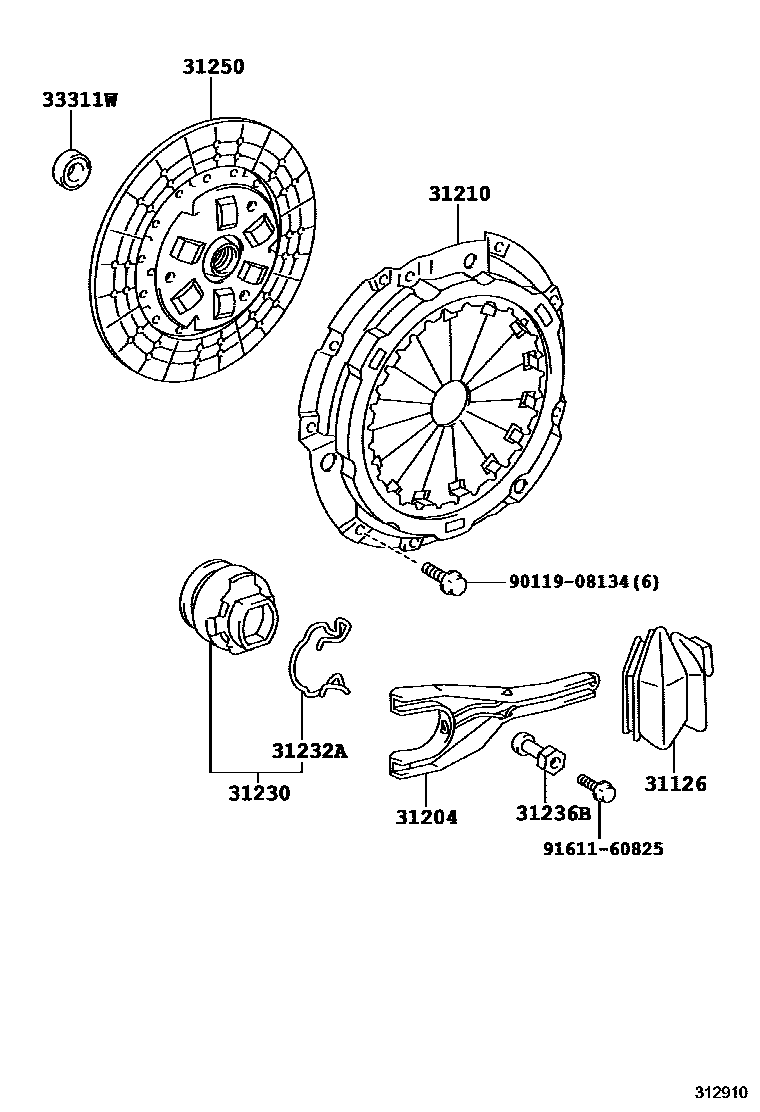

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLJ7#..MTM199004-199104

main31126-26020iLJ7#..MTM199104-199305

main31126-60050iPZJ7#199001-200408

main31126-60060iFJ75199006-199208

main31126-60070iHZJ73..MTM..4NO199001-199908

main31126-60080iKZJ7#..MTM199305-199604

sub31126-60081

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iLJ7#..MTM199004-199305

main31204-36110iPZJ7#;HZJ73..MTM..4NO199001-200408

main31204-60090iKZJ7#..MTM199305-199604

31210COVER ASSY, CLUTCH

main31210-35150iLJ7#..MTM199004-199103

sub31210-35171

main31210-35170iLJ7#..MTM199103-199108

sub31210-35171

main31210-35190iLJ7#..MTM199108-199305

sub31210-35191

main31210-36160iHZJ73..MTM..1NO;HZJ73..MTM..LX..U;HZJ70,75,77..MTM..U199001-200111

sub31210-36161

main31210-36161iHZJ7#..MTM200111-200408

sub31210-36330

main31210-60100iFJ75199006-199208

sub31210-60101

main31210-60130iPZJ7#199001-199401

sub31210-60190

main31210-60170iKZJ7#..MTM199305-199603

sub31210-60171

main31210-60190iKZJ7#..MTM199603-199604

sub31210-60191

31230BEARING ASSY, CLUTCH RELEASE

main31230-22090iLJ7#..MTM199004-199305

sub31230-22091

main31230-36160iFJ75199006-199208

sub31230-36161

main31230-60130iHZJ70,73..S199001-199908

main31230-60140iPZJ7#199001-199401

main31230-60170iKZJ7#..MTM199305-199604

main31230-60200iHZJ7#..MTM199908-200408

sub31230-60201

31232ACLIP, RELEASE BEARING HUB

main31232-35030iLJ7#..MTM199004-199305

main31232-35040iLJ7#..MTM199004-199305

main31232-36010iPZJ7#199001-199401

main31232-36020iHZJ7#..MTM199001-200408

main31232-36030iKZJ7#..MTM199305-199604

main31232-60030iKZJ7#..MTM199305-199604

31236BSUPPORT, RELEASE FORK

main31236-35030iPZJ7#;HZJ73..MTM..4NO199001-200408

main31236-60050iFJ75199006-199208

main31236-60060iKZJ7#..MTM199305-199604

31250DISC ASSY, CLUTCH

main31250-35260iLJ7#..MTM199004-199012

sub31250-35261

main31250-35261iLJ7#..MTM199012-199108

sub31250-35262

main31250-35330iKZJ7#..MTM199305-199603

sub31250-35331

main31250-35331iKZJ7#..MTM199603-199604

sub31250-35332

main31250-36340iFJ75199006-199208

sub31250-36341

main31250-60220iHZJ7#..MTM199001-199412

sub31250-60222

main31250-60222iHZJ7#..MTM199412-200004

sub31250-60223

main31250-60223iHZJ7#..MTM200004-200408

sub31250-60224

main31250-60240iPZJ7#199001-199401

sub31250-35330

main31250-60250iLJ7#..MTM199108-199305

sub31250-60251

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLJ7#..MTM199004-199604

sub90363-12024

main90363-12010iPZJ7#199001-200408

main90363-15004iFJ75199006-199208

main90363-15017iHZJ7#..MTM199001-199908

9011908134

main90119-08134

9161160825

main91611-60825

10 parts on this diagram · 4 diagrams in section
