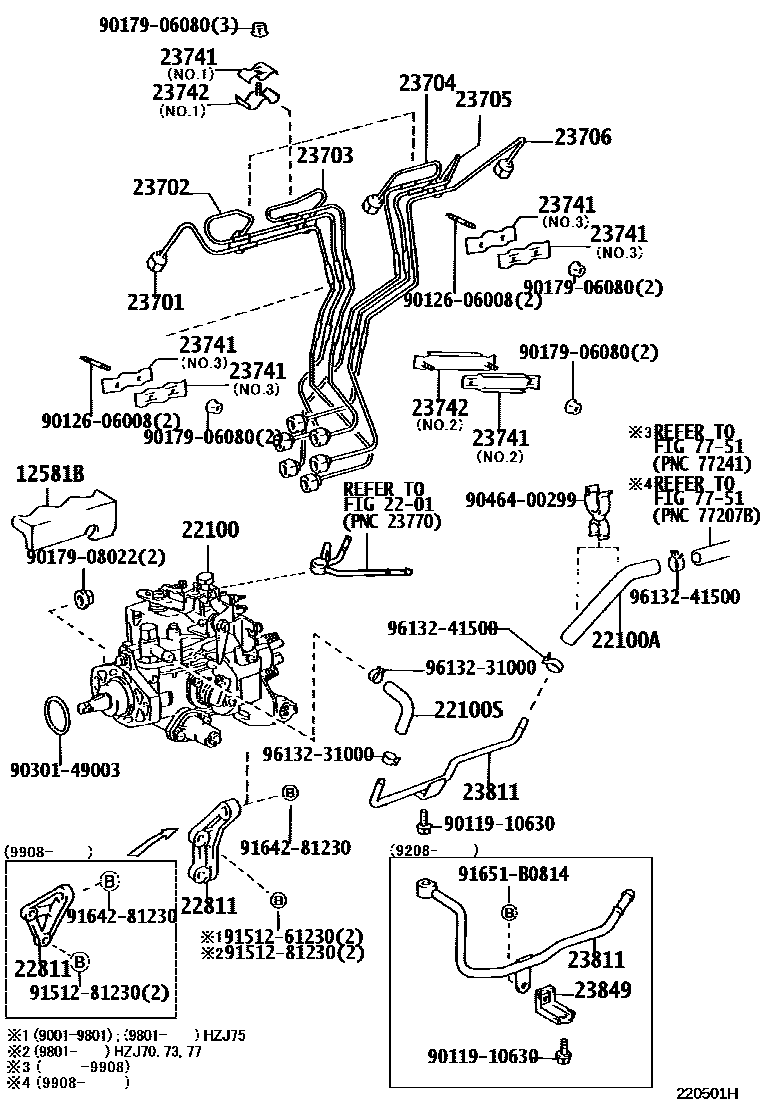

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

12581BINSULATOR, CYLINDER BLOCK, NO.1

main12581-17010i1HZ..HZJ7#¥7,500199108-199801

sub12581-17011¥7,500

main12581-17011i1HZ..HZJ7#¥7,500199801-200408

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17100i1HZ..HZJ7#..MTM¥327,000199001-199208

main22100-17110i1HZ..HZJ7#..MTM¥361,000199001-199208

main22100-17120i1HZ..HZJ7#..ATM¥327,000199001-199208

main22100-17130i1HZ..HZJ7#..ATM¥361,000199001-199208

main22100-17630i1HZ..HZJ73,77..MTM¥330,000199208-199501

main22100-17640i1HZ..HZJ70,73,77..MTM..U¥361,000199208-199501

main22100-17690i1HZ..HZJ73,77..ATM¥341,000199208-199501

sub22100-17691¥342,000

main22100-17700i1HZ..HZJ73,77..ATM¥375,000199208-199501

main22100-17710i1HZ..HZJ75¥379,000199212-199501

main22100-17830i1HZ..HZJ70,73..S¥396,000199401-199908

main22100-18010i1PZ..PZJ70..STD¥296,000199001-199208

sub22100-18020¥306,000

main22100-18020i1PZ..PZJ7#..LX¥306,000199001-199208

main22100-18030i1PZ..PZJ7#..STD¥331,000199001-199208

sub22100-18040¥342,000

main22100-18040i1PZ..PZJ7#..LX¥342,000199001-199208

main22100-18090i1PZ..PZJ7#..STD¥294,000199208-199401

sub22100-18100¥294,000

main22100-18100i1PZ..PZJ7#..LX¥294,000199208-199401

main22100-18110i1PZ..PZJ7#..STD¥330,000199208-199401

sub22100-18120¥340,000

main22100-18120i1PZ..PZJ7#..LX¥340,000199208-199401

main22100-1B100i1HZ..HZJ75¥396,000199501-199908

main22100-1B110i1HZ..HZJ73,77..ATM¥408,000199501-199908

main22100-1C330i1HZ..HZJ74,76..ATM¥382,000199908-200408

main22100-1C370i1HZ..HZJ7#..MTM¥437,000199908-200408

main22100-5B300i2LTE..LJ7#¥346,000199004-199010

main22100-5B301i2LTE..LJ7#¥342,000199011-199206

sub22100-5B302¥342,000

main22100-5B302i2LTE..LJ7#¥342,000199206-199305

sub22100-5B303¥342,000

main22100-67030i1KZTE..KZJ7#¥271,000199305-199310

sub22100-67070¥273,000

main22100-67070i1KZTE..KZJ7#¥273,000199310-199604

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17060i1PZ..PZJ7#¥740199002-199208

main23271-17061i1PZ..PZJ7#¥790199208-199401

main23271-17150i1HZ..HZJ7#¥1,790199908-200408

main23271-67010i1KZTE..KZJ7#¥1,390199305-199604

main90447-14068i2LTE..LJ7#¥1,700199004-199305

main95332-10030i1PZ..PZJ70¥1,030199001-199002

main95332-10040i1HZ..HZJ7#¥1,160199208-199908

main95332-10040i1HZ..HZJ7#¥1,160199001-199208

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-17050i1PZ..PZJ70¥680199001-199208

main90447-12004i1KZTE..KZJ7#¥1,190199305-199604

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1PZ..PZJ70¥2,600199001-199505

sub22811-17011¥1,650

main22811-17011i1HZ..HZJ7#¥1,650199505-199908

main22811-17030i1HZ..HZJ7#¥770199908-200408

main22811-54050i2LTE..LJ7#¥530199004-199305

main22811-67010i1KZTE..KZJ7#¥2,190199305-199604

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZJ7#..U¥1,880199001-199501

main23701-17040i1HZ..HZJ7#¥1,180199401-200408

main23701-18010i1PZ..PZJ7#¥1,670199001-199401

main23701-54120i2LTE..LJ7#¥2,510199004-199305

sub23701-54130¥2,520

main23701-67020i1KZTE..KZJ7#¥1,670199305-199507

sub23701-67021¥1,680

main23701-67021i1KZTE..KZJ7#¥1,680199507-199604

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZJ7#..U¥1,880199001-199501

main23702-17040i1HZ..HZJ70,73..S¥1,180199401-200408

main23702-18010i1PZ..PZJ7#¥1,480199001-199401

main23702-54130i2LTE..LJ7#¥2,510199004-199305

sub23702-54160¥2,520

main23702-67020i1KZTE..KZJ7#¥1,680199305-199604

sub23702-67021¥1,680

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZJ7#¥1,880199001-199501

main23703-17040i1HZ..HZJ7#¥1,180199401-200408

main23703-18010i1PZ..PZJ70¥1,480199001-199401

main23703-54100i2LTE..LJ7#¥1,710199004-199305

main23703-67020i1KZTE..KZJ7#¥1,670199305-199507

sub23703-67021¥1,670

main23703-67021i1KZTE..KZJ7#¥1,670199507-199604

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZJ7#..U¥1,880199001-199501

main23704-17040i1HZ..HZJ7#¥1,180199401-200408

main23704-18010i1PZ..PZJ7#¥1,480199001-199401

main23704-54100i2LTE..LJ7#¥1,710199004-199305

main23704-67020i1KZTE..KZJ7#¥1,680199305-199604

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-17010i1HZ..HZJ7#¥1,880199001-199501

main23705-17040i1HZ..HZJ70,73..S¥1,180199401-200408

main23705-18010i1PZ..PZJ70¥1,480199001-199401

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-17010i1HZ..HZJ7#¥1,880199001-199501

main23706-17040i1HZ..HZJ70,73..S¥1,180199401-200408

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1PZ..PZJ7#¥240199001-200408

main23741-17020i1HZ..HZJ7#¥530199001-200408

main23741-17030i1HZ..HZJ7#¥350199001-200408

main23741-54010i2LTE..LJ7#¥1,330199004-199305

main23741-56010i2LTE..LJ7#¥450199004-199305

main23741-64030i1KZTE..KZJ7#¥550199305-199604

23742CLAMP, INJECTION PIPE, NO.2

main23742-17010i1HZ..HZJ7#¥340199001-200408

main23742-17020i1HZ..HZJ7#¥700199001-200408

main23742-54010i2LTE..LJ7#¥1,330199004-199305

main23742-67010i1KZTE..KZJ7#¥380199305-199604

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-17010i1PZ..PZJ7#¥1,300199001-199208

main23811-17020i1HZ..HZJ7#¥4,930199208-200408

main23811-54150i2LTE..LJ7#¥2,700199004-199108

sub23811-54151¥2,690

main23811-54151i2LTE..LJ7#¥2,690199108-199305

main23811-67020i1KZTE..KZJ7#¥2,110199305-199604

23849SUPPORT, FUEL

main23849-17010i1HZ..HZJ7#¥220199208-200408

7751

9011910630

main90119-10630¥110

9012606008

main90126-06008¥130

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9046400299

main90464-00299¥360

9151261230

main91512-61230¥260

9151281230

main91512-81230¥260

9164281230

main91642-81230¥160

91651B0814

main91651-B0814¥120

9613231000

main96132-31000¥190

9613241500

main96132-41500¥90

29 parts on this diagram · 4 diagrams in section
