INJECTION NOZZLE

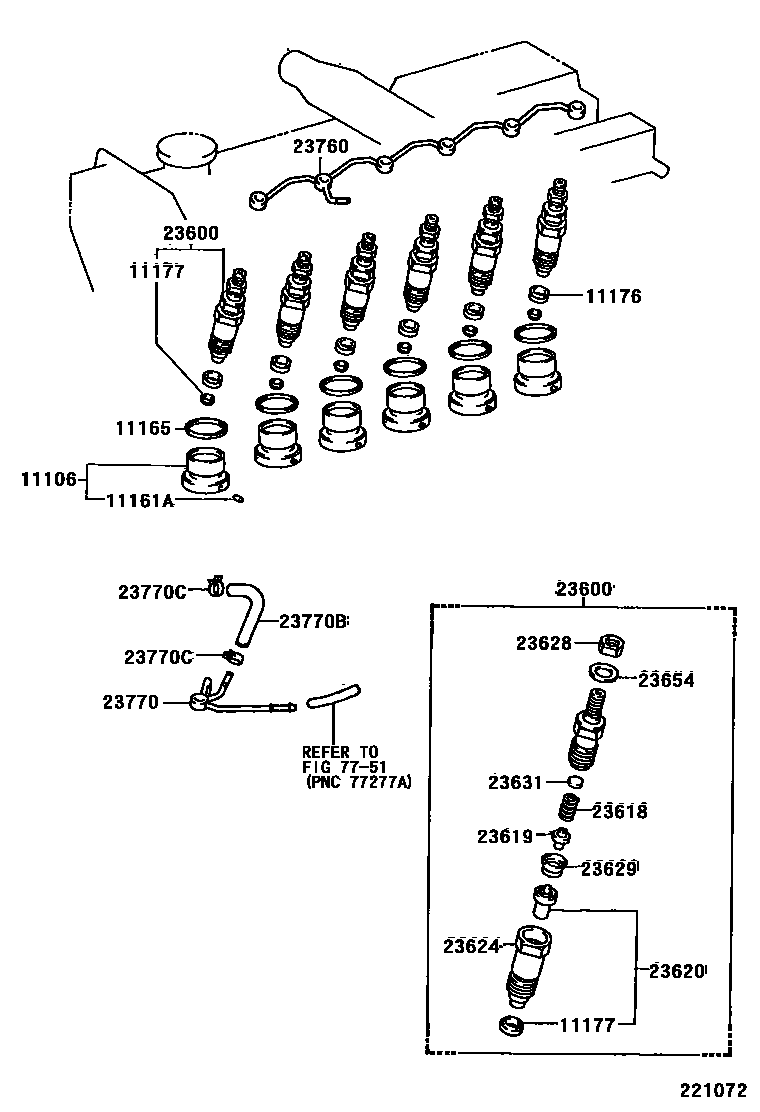

Parts diagram
11106CHAMBER SUB-ASSY, COMBUSTION
main11106-17020i199001-199401
sub11106-17021
main11106-17021i199401-199908
main11106-17040i199908-200408
main11106-54110i199004-199305
main11106-67020i199305-199604
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
main90250-02046i199001-200408
11165SHIM(FOR COMBUSTION CHAMBER)
main11165-54030i199001-200408
11176SEAT, INJECTION NOZZLE
main11176-64010i199001-200408
main11176-67010i199305-199604
11177GASKET, INJECTION NOZZLE SEAT
main11177-54020i199910-200408
main11177-64010i199001-199910
23600HOLDER & NOZZLE SET, NOZZLE
main23600-19015i199001-199401
main23600-19055i199401-199908
main23600-19105i199908-200408
main23600-59155i199004-199305
main23600-69055i199001-199501
main23600-69105i199305-199604
23618SPRING, NOZZLE HOLDER PRESSURE
main23618-17090i199908-200408
main23618-54080i199004-199305
main23618-54730i199001-199604
main23618-64010i199011-199501
main23618-64020i199001-199305
main23618-64080i199401-199908
23619PIN, NOZZLE HOLDER PRESSURE
main23619-64010i199001-200408
23620NOZZLE ASSY
main23620-19105i199401-199908
main23620-19115i199908-200408
main23620-59065i199004-199305
main23620-69045i199001-199501
main23620-69075i199305-199604
23624NUT, NOZZLE RETAINING
main23624-18010i199001-199005
sub23624-64041
main23624-64010i199004-199305
sub23624-55010
main23624-64040i199001-199501
sub23624-64041
main23624-64041i199005-200408
main23624-64080i199401-199908
23628NUT(FOR RING PACKING SETTING)
main23628-64010i199001-200408
23629PIECE, DISTANCE(FOR NOZZLE)
main23629-54080i199001-200408
main23629-64010i199001-199501
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
main23631-64010i199001-200408
main23631-64011i199001-200408
main23631-64012i199001-200408
main23631-64013i199001-200408
main23631-64014i199001-200408
main23631-64015i199001-200408
main23631-64016i199001-200408
main23631-64017i199001-200408
main23631-64018i199001-200408
main23631-64019i199001-200408
main23632-64010i199001-200408
main23632-64011i199001-200408
main23632-64012i199001-200408
main23632-64013i199001-200408
main23632-64014i199001-200408
main23632-64015i199001-200408
main23632-64016i199001-200408
main23632-64017i199001-200408
main23632-64018i199001-200408
main23632-64019i199001-200408
main23633-64010i199001-200408
main23633-64011i199001-200408
main23633-64012i199001-200408
main23633-64013i199001-200408
main23633-64014i199001-200408
main23633-64015i199001-200408
main23633-64016i199001-200408
main23633-64017i199001-200408
main23633-64018i199001-200408
main23633-64019i199001-200408
main23634-64010i199001-200408
main23634-64011i199001-200408
main23634-64012i199001-200408
main23634-64013i199001-200408
main23634-64014i199001-200408
main23634-64015i199001-200408
main23634-64016i199001-200408
main23634-64017i199001-200408
main23634-64018i199001-200408
main23634-64019i199001-200408
main23635-64010i199001-200408
main23635-64011i199001-200408
main23635-64012i199001-200408
23654WASHER(FOR RING PACKING)
main23654-64010i199001-200408
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-54030i199004-199305
main23760-67020i199305-199604
main23761-17010i199001-200408
main23761-18010i199001-199401
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23762-17010i199001-199501
sub23762-17011
main23762-17021i199401-199501
sub23762-17050
main23762-17050i199501-199604
sub23762-17051
main23762-17051i199604-200408
main23764-54070i199004-199305
23770BHOSE, FUEL
main95333-04020i199305-199604
main95333-04020i199001-200408
main95333-04020i199004-199305
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
main90467-10049i199001-199908
sub90467-10149
main90467-10149i199908-200408
main96132-30400i199004-199305
sub96132-51000
7751

19 parts on this diagram · 5 diagrams in section
