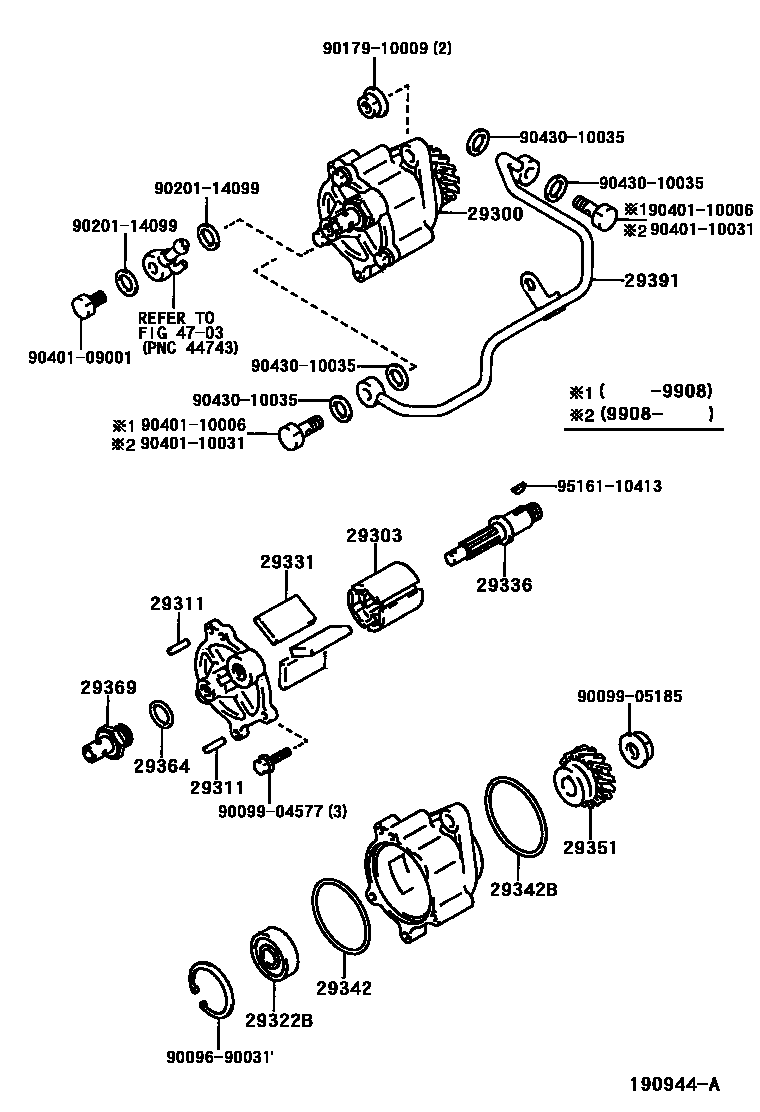

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-17010i1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,75,76,79,PZJ7#199001

main29300-54100i2LTE..LJ7#199004-199305

sub29300-54130

main29300-67020i1KZTE..KZJ7#199305-199604

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1HZ..HZJ7#199908-200408

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1HZ..HZJ7#199908-200408

29322BBEARING, VACUUM PUMP

main90099-10166i2LTE..LJ7#199004-199305

main90099-10185i1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,75,76,79,PZJ7#199001

29331BLADE, VACUUM PUMP, A

main29331-58050×3i1HZ,1PZ..HZJ7#,PZJ7#199001-199305

main29331-64030×3i2LTE..LJ7#199004-199305

main29331-67020×5i1HZ..HZJ7#199908-200408

29336SHAFT, VACUUM PUMP

main29336-58050i1HZ,1KZTE,1PZ..HZJ7#,KZJ7#,PZJ7#199305-199908

main29336-64030i2LTE..LJ7#199004-199008

main29336-64031i2LTE..LJ7#199008-199305

29342PACKING, VACUUM PUMP

main29342-58010i1HZ,1PZ..HZJ7#,PZJ7#199305-199908

main29342-67020i1KZTE..KZJ7#199305-199604

main29342-68010×2i1KZTE..KZJ7#199305-199604

29342BRING, O

main29342-17010i1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,75,76,79,PZJ7#199001

main29342-64030i2LTE..LJ7#199004-199305

29351GEAR, VACUUM PUMP

main29351-17010i1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,75,76,79,PZJ7#199001

main29351-67020i1KZTE..KZJ7#199305-199604

29364WASHER, VACUUM PUMP

main29364-66010i1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,75,76,79,LJ7#,PZJ7#199001

29369VALVE SUB-ASSY, CHECK

main29369-64030i1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,75,76,79,LJ7#,PZJ7#199001

29391TUBE, VACUUM PUMP

main29391-17010i1HZ,1PZ..HZJ7#,PZJ7#199305-199908

main29391-17020i1HZ..HZJ7#199908-200408

4703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017910009

main90179-10009

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040110031

main90401-10031

9043010035

main90430-10035

9516110413

main95161-10413

23 parts on this diagram · 3 diagrams in section
