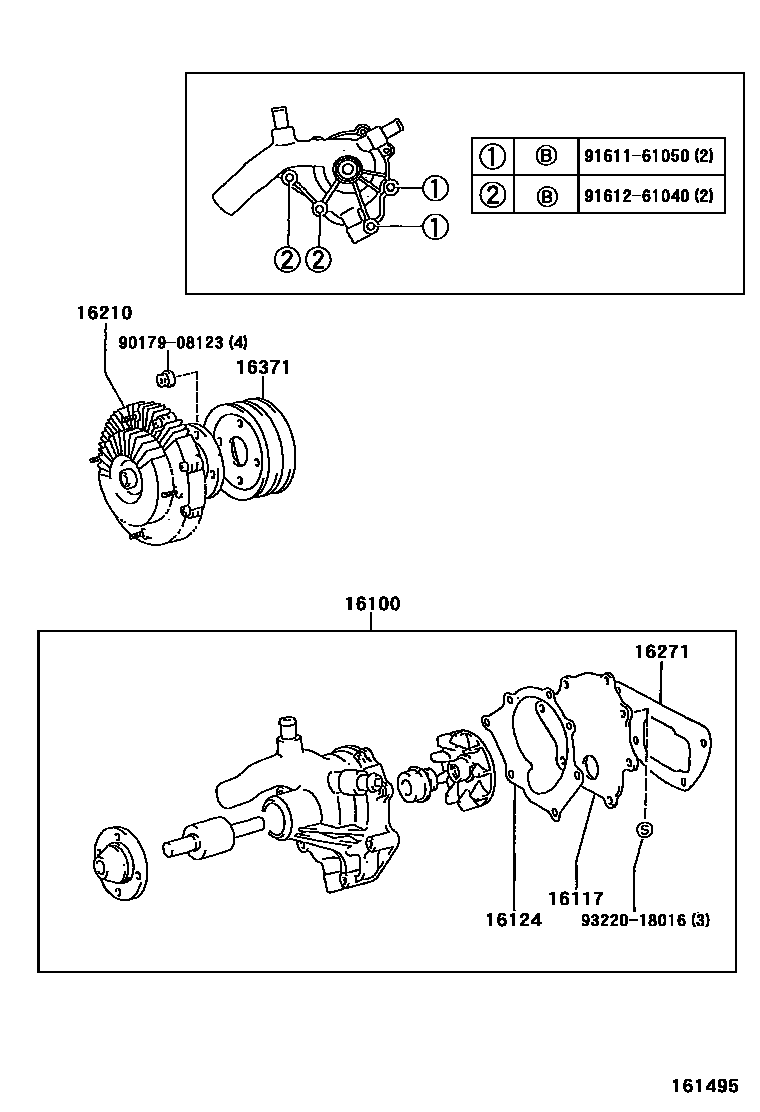

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-19235i1PZ..PZJ7#199001-200408

main16100-59155i2LTE..LJ7#199004-199305

sub16100-59255

main16100-69265i3F..FJ75199006-199208

main16100-69355i1KZTE..KZJ7#199305-199604

sub16100-69356

16117PLATE, WATER PUMP

main16117-61110i3F..FJ75199006-199208

16124GASKET, WATER PUMP COVER

main16124-61250i3F..FJ75199006-199208

main16124-67010i1KZTE..KZJ7#199305-199604

16210COUPLING ASSY, FLUID

main16210-17040i1HZ..HZJ7#199001-199908

sub16210-17010

main16210-17050i1HZ..HZJ7#199908-200408

main16210-54200i2LTE..LJ7#199004-199305

main16210-61150i3F..FJ75199006-199208

main16210-67010i1KZTE..KZJ7#199305-199604

16271GASKET, WATER PUMP

main16271-17010i1PZ..PZJ7#199001-200408

main16271-54020i2LTE..LJ7#199004-199305

sub16271-54030

main16271-61020i3F..FJ75199006-199208

main16271-67020i1KZTE..KZJ7#199305-199604

16371PULLEY, FAN

main16173-61070i3F..FJ75199006-199208

main16371-17010i1PZ..PZJ7#199001-200408

main16371-54030i2LTE..LJ7#199004-199305

main16371-67020i1KZTE..KZJ7#199305-199604

9017908123

main90179-08123

9161161050

main91611-61050

9161261040

main91612-61040

9322018016

main93220-18016

10 parts on this diagram · 5 diagrams in section
